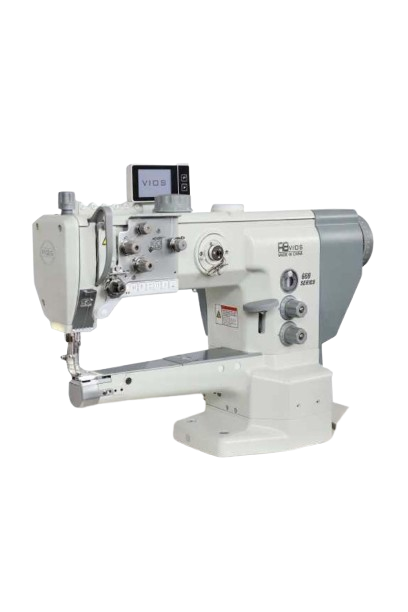

Single Needle Cylinder Bed Compound Feed Lockstitch Sewing Machine

The VIOS 669 Cylinder Bed Series from HCA is a precision-engineered single needle compound feed lockstitch machine designed for assembly, binding, and decorative stitching on small leather goods, bags, footwear, and other curved or tubular materials.

Built with a powerful Z-integrated direct-drive motor, it delivers stable performance, smooth feeding, and high energy efficiency. The self-developed VIOS control system ensures reliability, while LED lighting provides excellent visibility for detailed work.

The cylinder-bed design offers superior maneuverability, especially for circular seams and edges. With automatic thread trimming, auto backtacking, programmable foot lift (PFL), and a pneumatic presser foot lifter up to 20mm, this model is built for both precision and productivity.

Key Features:

• Cylinder bed design ideal for small leather goods and curved stitching.

• Compound feed mechanism ensures even and powerful fabric feeding.

• Max. stitch length: 9mm.

• Max. sewing speed: 3000 RPM.

• High top feed stroke: up to 9mm.

• Pneumatic presser foot lift: up to 20mm.

• Z-integrated direct-drive motor for smooth, energy-efficient operation.

• LED lighting for improved visibility.

• Self-developed VIOS control system for stability and easy operation.

• Binding device (optional) — specify when ordering.

• Automatic functions: thread trimming, backtacking, and PFL.
