LA998S | Automatic Button Feeder

Automatic Button Feeder

Automatic Button Feeder

Rs. 0.00
Sold out

Description

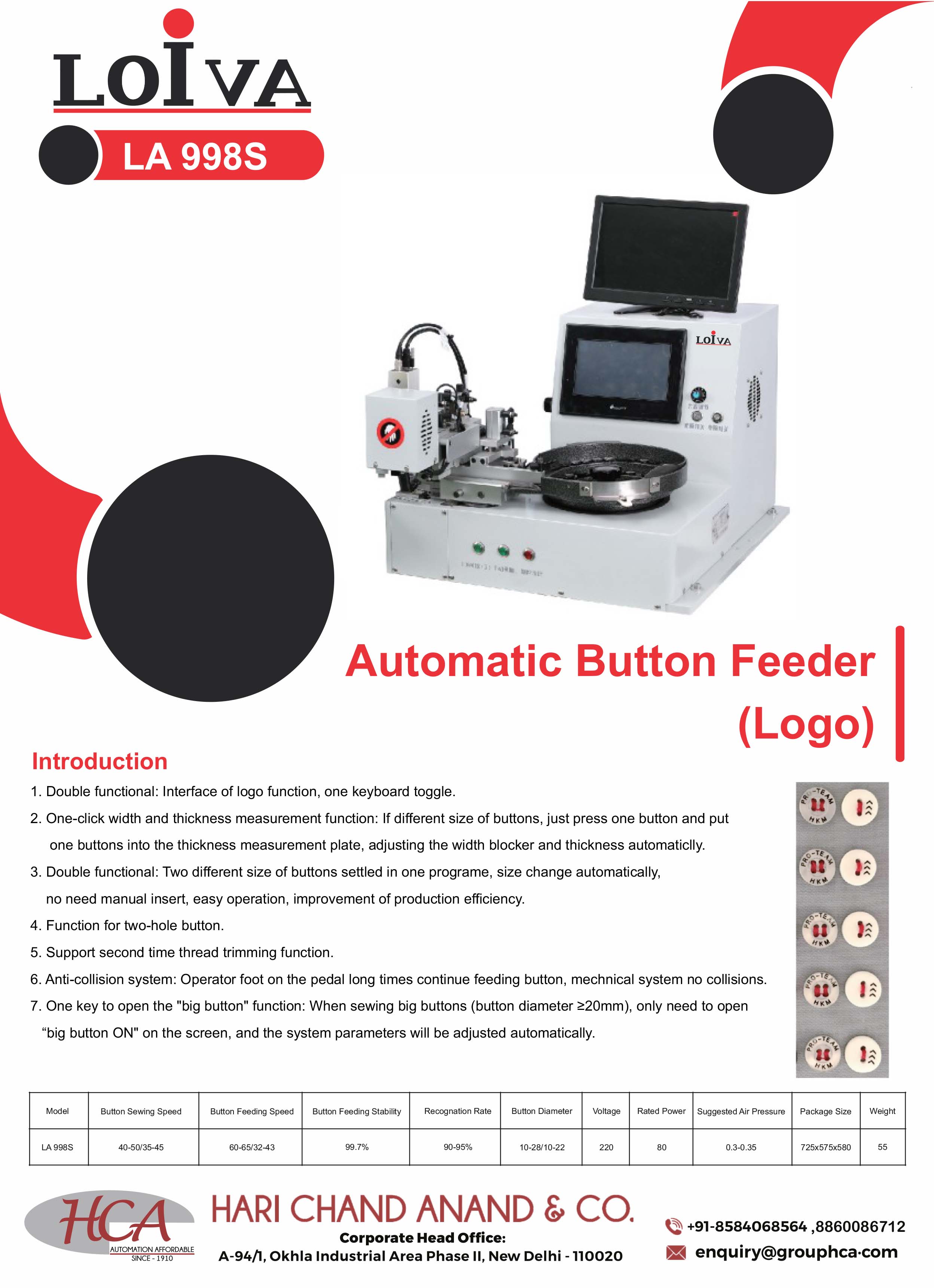

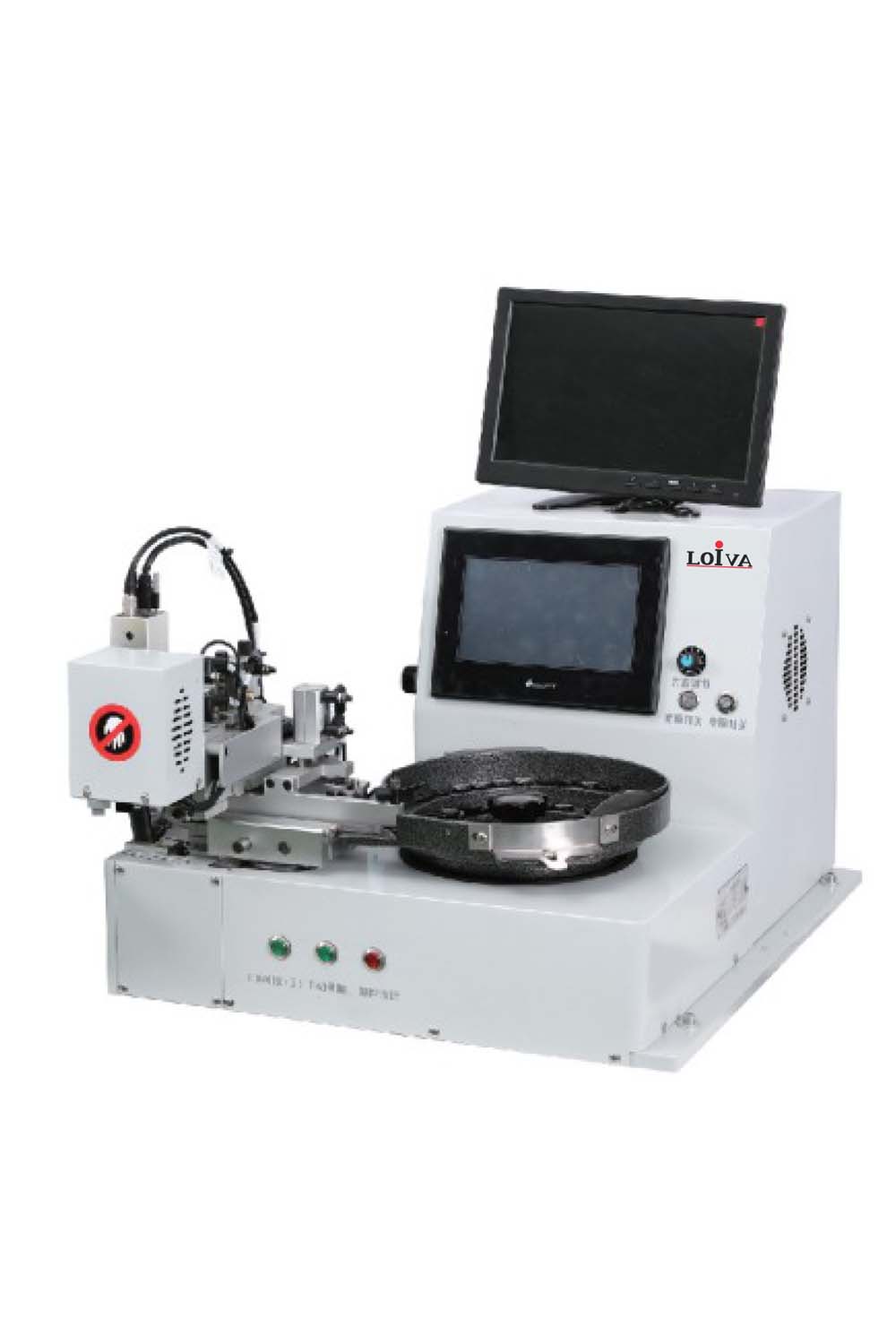

Loiva LA998S, distributed by HCA, is a high-performance automatic button feeder designed to handle multiple button sizes with ease. Equipped with intelligent measurement and switching systems, it ensures accurate button feeding, fast setup, and improved operator safety.

Specification

Model: LA998S

Button Sewing Speed: 40–50 / 35–45 pcs/min

Button Feeding Speed: 60–65 / 32–43 pcs/min

Feeding Stability: 99.7%

Button Recognition Rate: 90–95%

Supported Button Diameter: 10–28 mm / 10–22 mm

Voltage: 220V

Rated Power: 80W

Air Pressure Required: 0.3–0.35 MPa

Package Size (mm): 725 × 575 × 580

Feature

  • Dual button feeding – Seamlessly feed two different button sizes in a single program.
  • Auto width & thickness detection – Just place the button and press once for automatic size setup.
  • Touch interface with logo mode – Toggle easily between standard or branded operations.
  • Two-hole button support – Integrated functionality for various button types.
  • Second thread trimming support – Ensures clean finishing for every stitch.
  • Big button mode – Auto-adjusts parameters for buttons ≥20mm.
  • Anti-collision mechanism – Prevents mechanical collisions during continuous feeding.
  • High button feeding stability – Achieves up to 99.7% accuracy in button feeding.
