LA988A | Automatic Button Feeder (Pen Cylinder)

Automatic Button Feeder (Pen Cylinder) - Hari Chand Anand & Co.

Automatic Button Feeder (Pen Cylinder)

Rs. 0.00
Sold out

Description

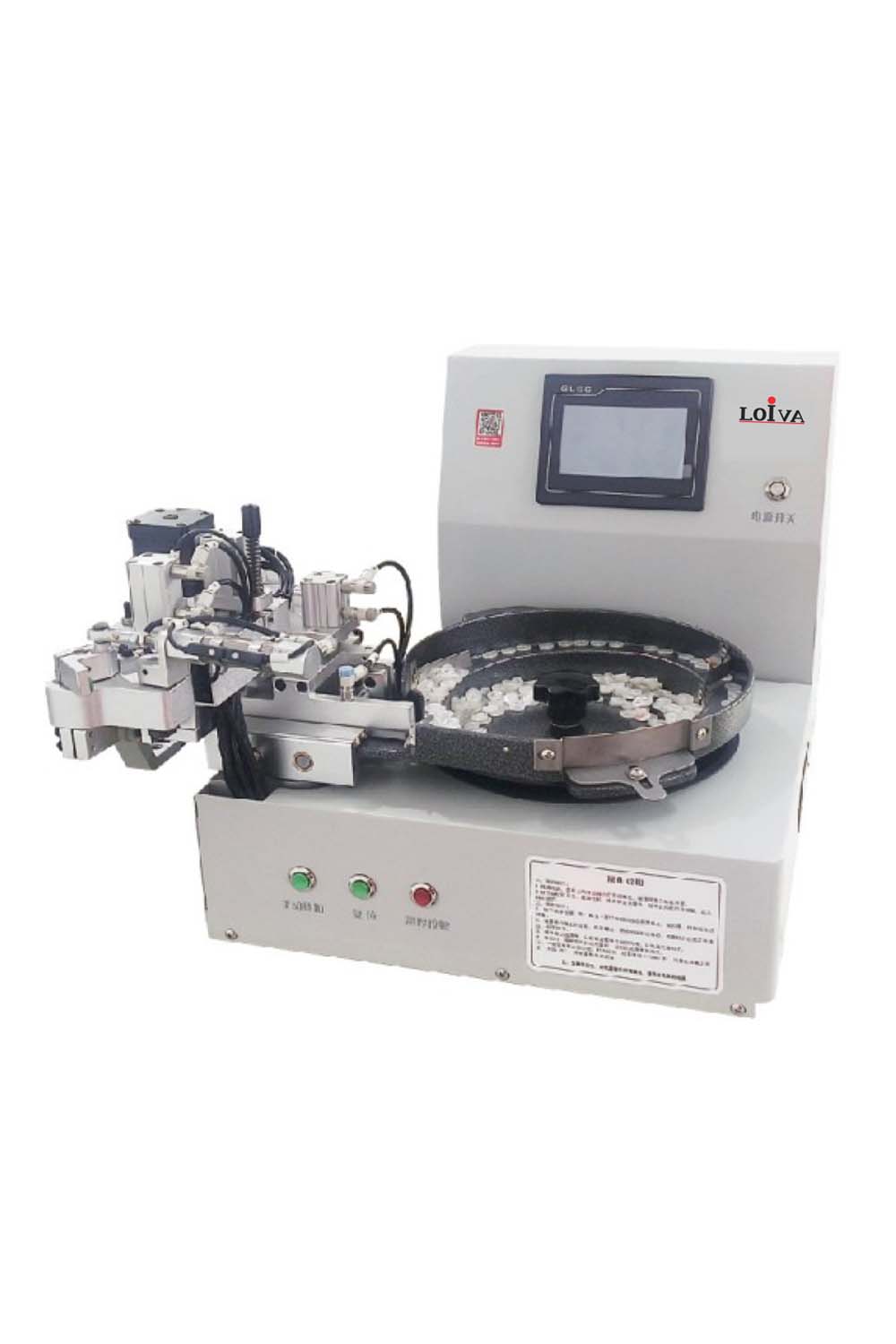

The Loiva LA988A, distributed by HCA, is a high-efficiency automatic button feeder featuring a rotary pen cylinder system for quiet, smooth, and 100% accurate feeding. Ideal for garment manufacturers requiring consistent performance and minimal manual adjustment.

Specification

  • Model: LA988A
  • Rated Button Sewing Speed: 40–50 pcs/min
  • Continuous Feeding Speed: 60–65 pcs/min
  • Feeding Stability: 99.7%
  • Supported Button Diameter: 9–28 mm
  • Voltage: 220V
  • Rated Power: 80W
  • Suggested Air Pressure: 0.3–0.35 MPa
  • Package Size (mm): 620 × 540 × 510
  • Weight: 40 kg

Feature

  • Pen cylinder feeding system – Ensures smooth, accurate button delivery with minimal noise.
  • Touchscreen control with PLC system – Stable, intuitive, and easy to operate.
  • One-touch width & thickness measurement – Automatically adjusts feeder settings for different button sizes.
  • Big button function – Enables seamless sewing for buttons ≥20mm with auto-adjust parameters.
  • Thread trimming support – Supports second-time trimming for cleaner finishing.
  • Anti-collision system – Prevents mechanical conflicts during continuous button feeding for enhanced safety.
