LA917-373D | Automatic Button Feeder (Shank Button)

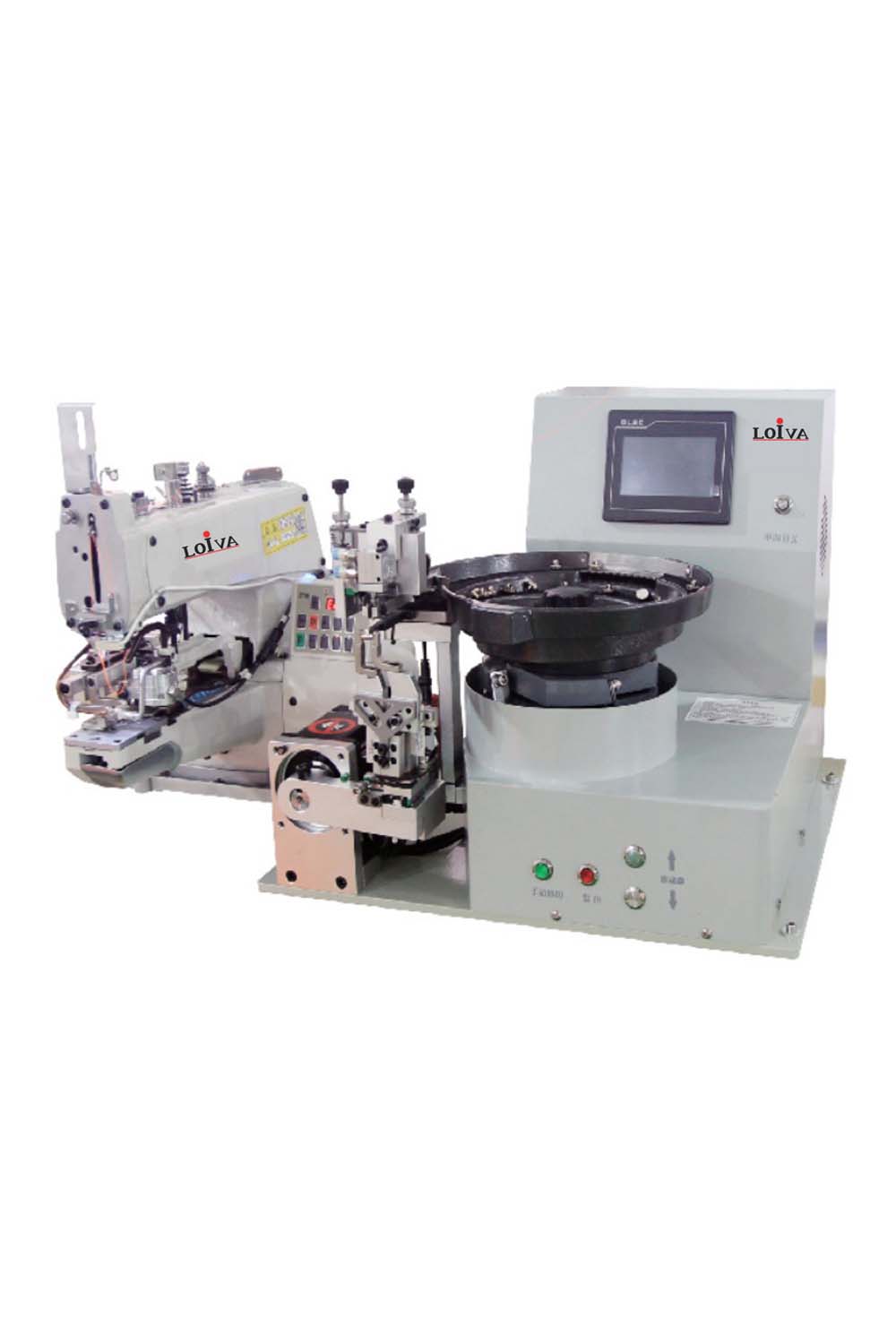

Loiva LA917-373D automatic button feeder front view

Automatic Button Feeder (Shank Button)

Sale priceRs. 0.00
Sold out

Description

Loiva LA917-373D, distributed by HCA, is a precision-engineered automatic button feeder for shank buttons, designed for high-efficiency garment production lines. The system features dual feeding modes, adjustable clip design for long/short-handle buttons, a user-friendly touch screen interface, and a servo motor for consistent speed and power.


Specification

  • Model: LA917-373D
  • Rated Button Sewing Speed: 40–50 pcs/min
  • Continuous Feeding Speed: 60–65 pcs/min
  • Feeding Stability: 99.7%
  • Button Diameter Range: 10–30 mm
  • Max Button Thickness: 10 mm
  • Rated Power: 800W
  • Air Pressure Required: 0.40–0.55 MPa
  • Package Size (mm): 1230 × 740 × 1330
  • Machine Weight: 130 kg


Feature

  • PLC touchscreen control – simple and intuitive for fast setup and operation.
  • Dual feeding modes – switch between normal and advanced feeding as needed.
  • Universal clip seat – easily adjust for long-handle and short-handle shank buttons.
  • Vibration disc control – automated up/down function for smoother button handling.
  • Adjustable handle length – fine-tune to match button specifications.
  • Stable clamping system – cylinder clamp prevents button misalignment or slipping.
  • Smooth feeding track – bottom and top air-blowing system ensures uninterrupted feeding.
  • Timing back-blow system – prevents button jamming at entry point.
  • High-powered servo motor – delivers silent, high-speed button feeding.
  • Anti-collision feature – prevents machine-arm collisions for safer, smoother operation.
