LA50LR | Heavy-Duty Cold & Hot Knife Cutter

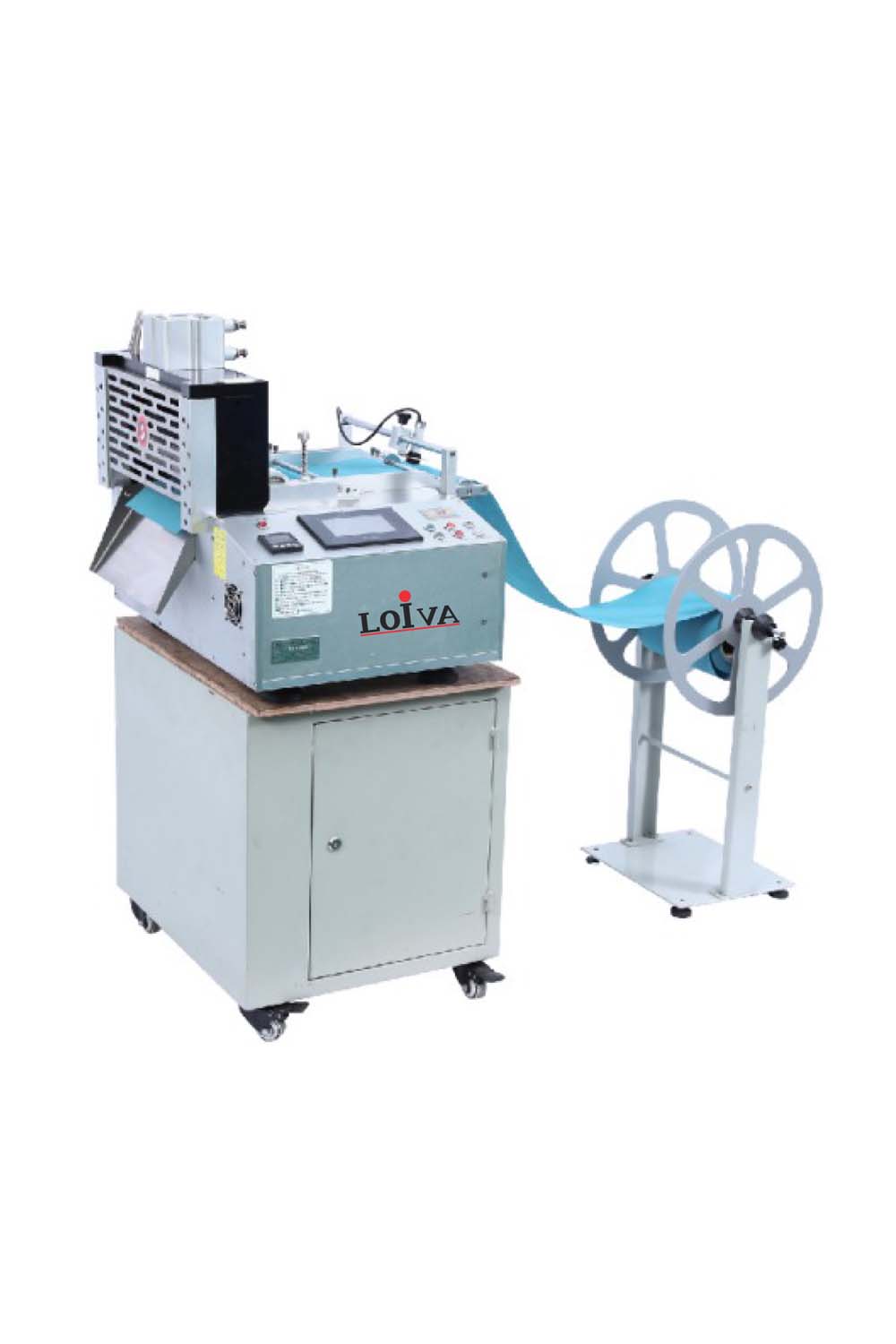

Loiva LA50LR heavy-duty knife cutter with touch panel – front view

Heavy-Duty Cold & Hot Knife Cutter

Sale priceRs. 0.00
Sold out

Description

Loiva LA50LR Heavy-Duty Cold & Hot Knife Cutter – 150 Cuts/Min

The Loiva LA50LR is a powerful heavy-duty automatic cutter built for high-speed, high-precision operations. With a cutting speed of up to 150 pieces per minute, this industrial-grade cold and hot knife cutter is perfect for woven labels, tapes, and lighter synthetic materials. Its intuitive PLC touch panel system supports multilingual settings and allows quick, easy operation.

Whether you’re working with garment accessories or packaging materials, the LA50LR delivers exceptional cutting accuracy, memory retention, and smart error detection — making it a reliable solution for continuous production environments.


Specification

  • Model: LA50LR
  • Cutting Length: 20 – 99,999 mm
  • Max Cutting Width: 200 mm
  • Cutting Speed: 150 pcs/min (50mm)
  • Max Blade Temperature: 350°C
  • Voltage: 110V / 220V
  • Suggested Air Pressure: 0.3 – 0.6 MPa
  • Power: 0.9 kW
  • Main Package Size: 675 x 645 x 695 mm
  • Main Weight: 105 kg
  • Stand Package Size: 550 x 445 x 465 mm
  • Stand Weight: 20 kg
  • Loading Capacity: 2 pieces


Feature

  • Super-Fast Cutting: Up to 150 pcs/min (50mm length).
  • Precision Engineered: Stepping motor ensures high cut-length accuracy.
  • Hot Knife Anti-Fray Technology: Clean, sealed edges with anti-static protection. (Note: Not for thick or hard materials.)
  • PLC Touchscreen: Multilingual interface with intuitive control and function pages.
  • Smart Error System: Auto error display for sensor faults, material shortage, or no supply.
  • Automatic Operation & Stop: Runs with pre-set length & quantity; halts automatically if material runs out.
  • Memory Save: Cutting settings are saved even after power off/on.
