LA 971 | Automatic Button Feeder (Logo)

Automatic Button Feeder (Logo)

Automatic Button Feeder (Logo)

Sale priceRs. 0.00
Sold out

Description

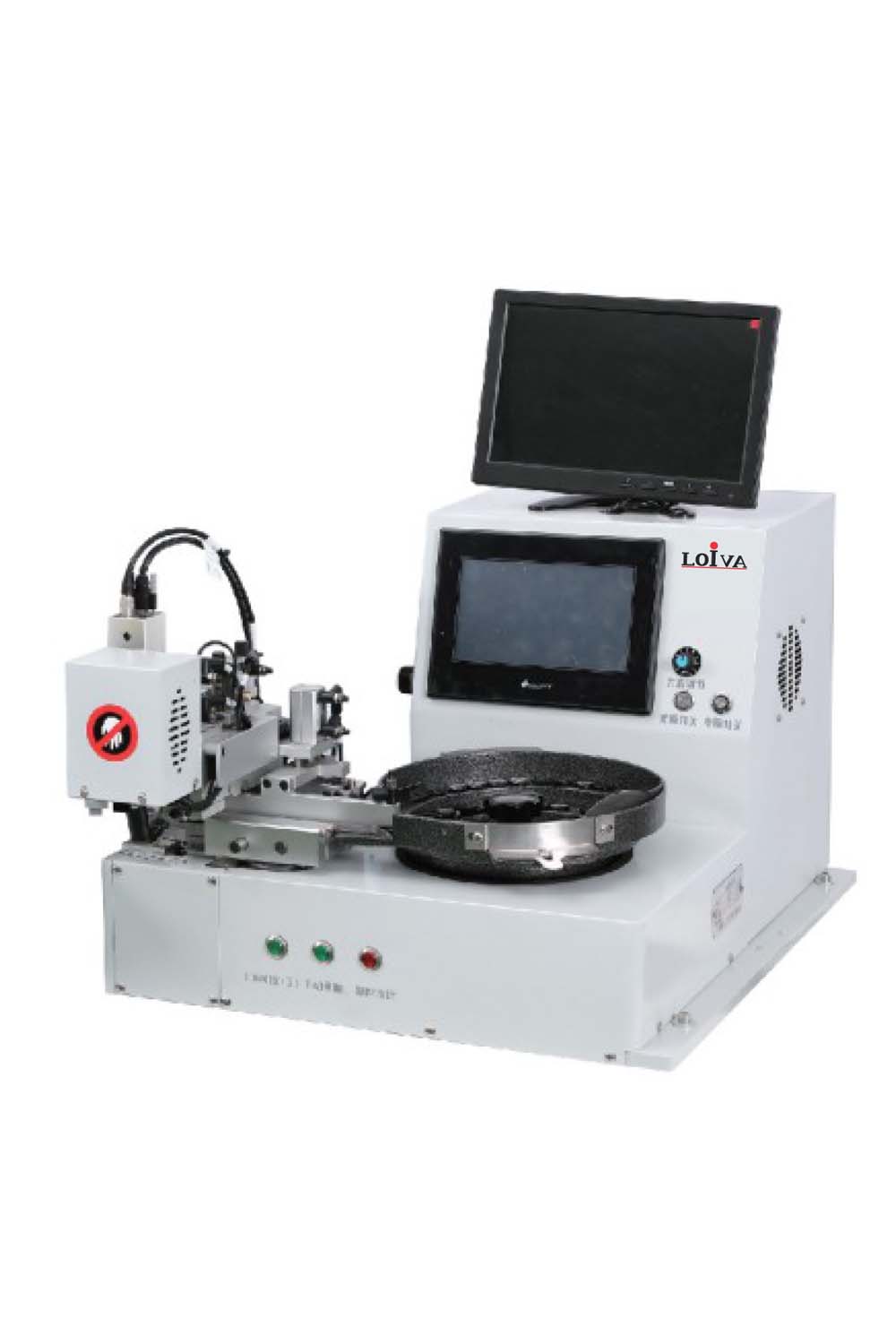

The LA 971 is a state-of-the-art automatic button feeder designed to optimize industrial sewing processes with unmatched efficiency and precision. Equipped with dual functional modes—including an advanced logo function—the LA 971 supports automatic adjustment for width and thickness, improving workflow and minimizing manual input. It allows easy switching between two different button sizes and supports two-hole buttons.

Its one-touch "Big Button" function simplifies operations for larger buttons (≥20mm), while anti-collision protection ensures safe, uninterrupted operation even during continuous feeding. With a high button recognition rate and feeding stability, this feeder is perfect for modern garment manufacturing setups.


Specification

  • Model: LA 971
  • Button Sewing Speed: 40-50 / 35-45 stitches per min
  • Button Feeding Speed: 60-65 / 32-43 per min
  • Feeding Stability: 99.7%
  • Recognition Rate: 90-95%
  • Button Diameter: 10-28mm / 10-22mm
  • Voltage: 220V
  • Rated Power: 80W
  • Suggested Air Pressure: 0.3 - 0.35 MPa
  • Package Size: 725 x 575 x 580 mm
  • Weight: 55 kg
