LA 970 | Automatic Button Feeder (Pen Cylinder)

LA 970 Automatic Button Feeder with pen cylinder system for industrial sewing machines

Automatic Button Feeder (Pen Cylinder)

Rs. 0.00
Sold out

Description

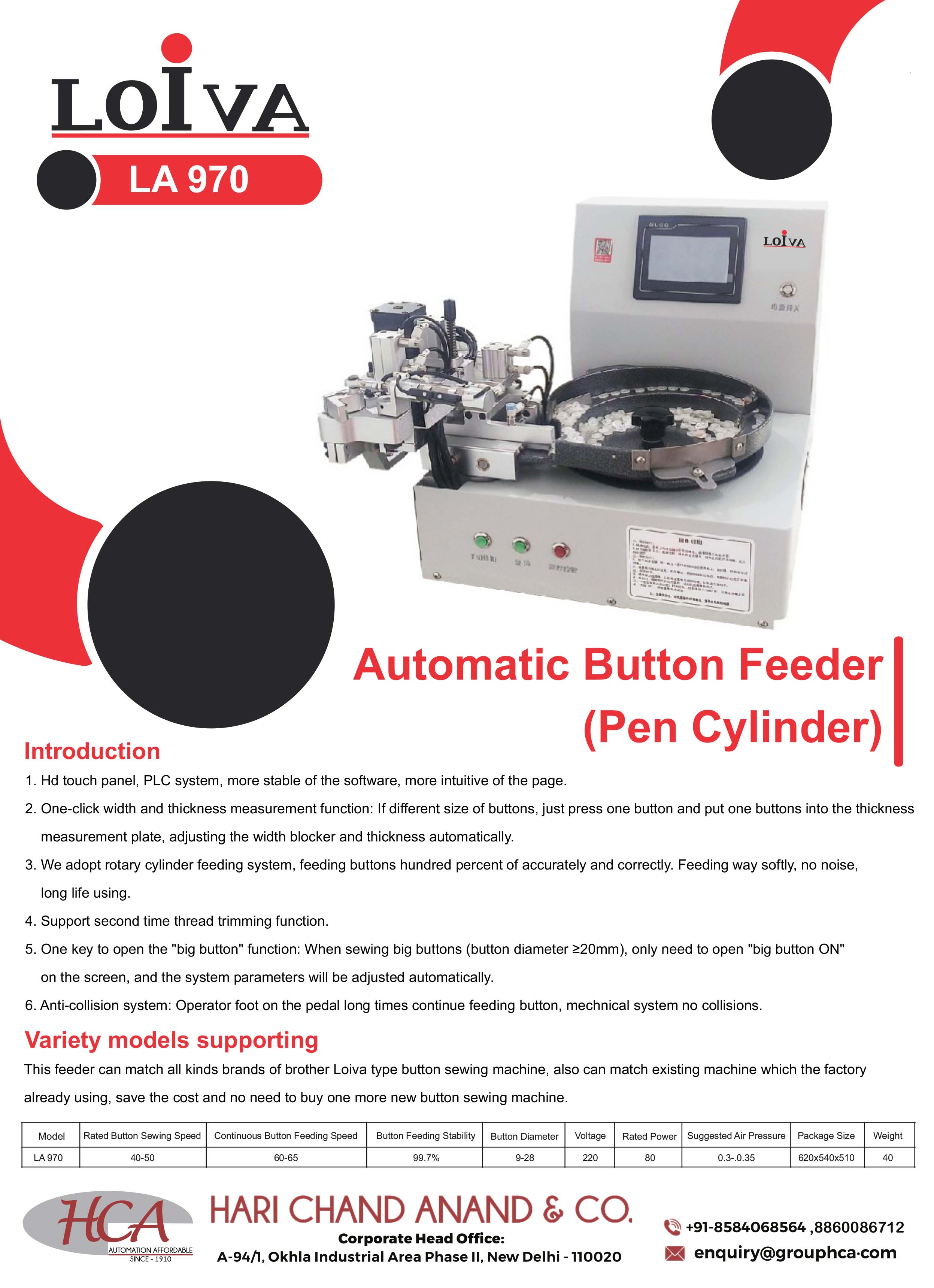

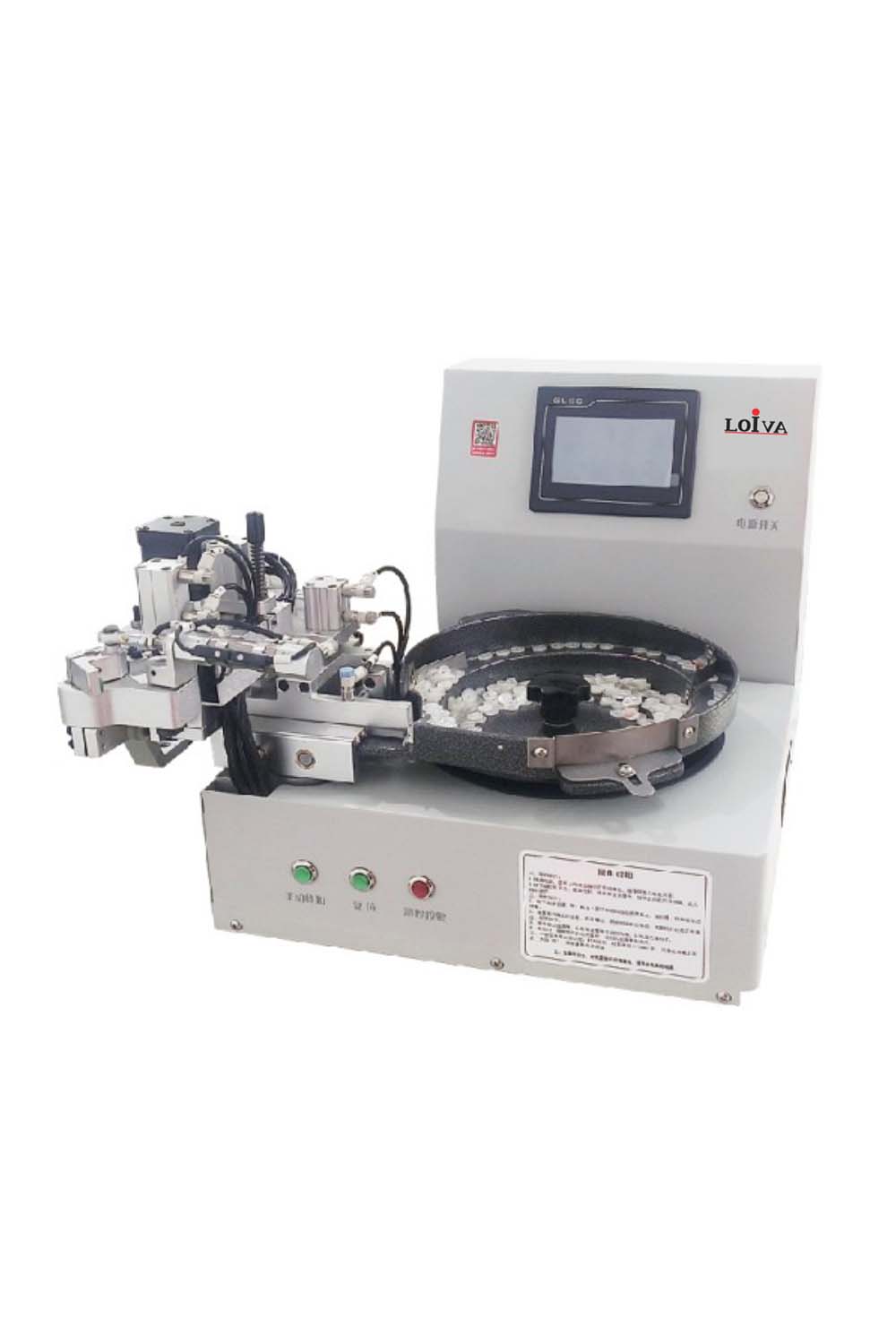

The LA 970 Automatic Button Feeder is designed for precision, quiet operation, and seamless integration with industrial sewing machines. Equipped with a rotary pen cylinder feeding system, it guarantees 100% accurate button placement. Ideal for use in high-volume garment manufacturing units, the LA 970 ensures smooth button feeding with reduced noise and long service life.

Specification

  • Model: LA 970
  • Rated Button Sewing Speed: 40–50 pcs/min
  • Continuous Feeding Speed: 60–65 pcs/min
  • Feeding Stability: 99.7%
  • Button Diameter Range: 9–28 mm
  • Voltage: 220V
  • Rated Power: 80W
  • Suggested Air Pressure: 0.3–0.35 MPa
  • Package Size: 620 x 540 x 510 mm
  • Weight: 40 kg

Feature

  • HD Touch Panel with PLC System: Stable performance and user-friendly interface.
  • Auto Width & Thickness Measurement: Just one click to auto-adjust for different button sizes.
  • Rotary Cylinder Feeding: High-precision, noise-free feeding system with extended durability.
  • Second-Time Thread Trimming: Improved finish and efficiency for multi-step stitching.
  • Big Button Mode: Easily switch settings for larger buttons (≥20mm).
  • Anti-Collision System: Safe for continuous operation—even with extended foot pedal use.
