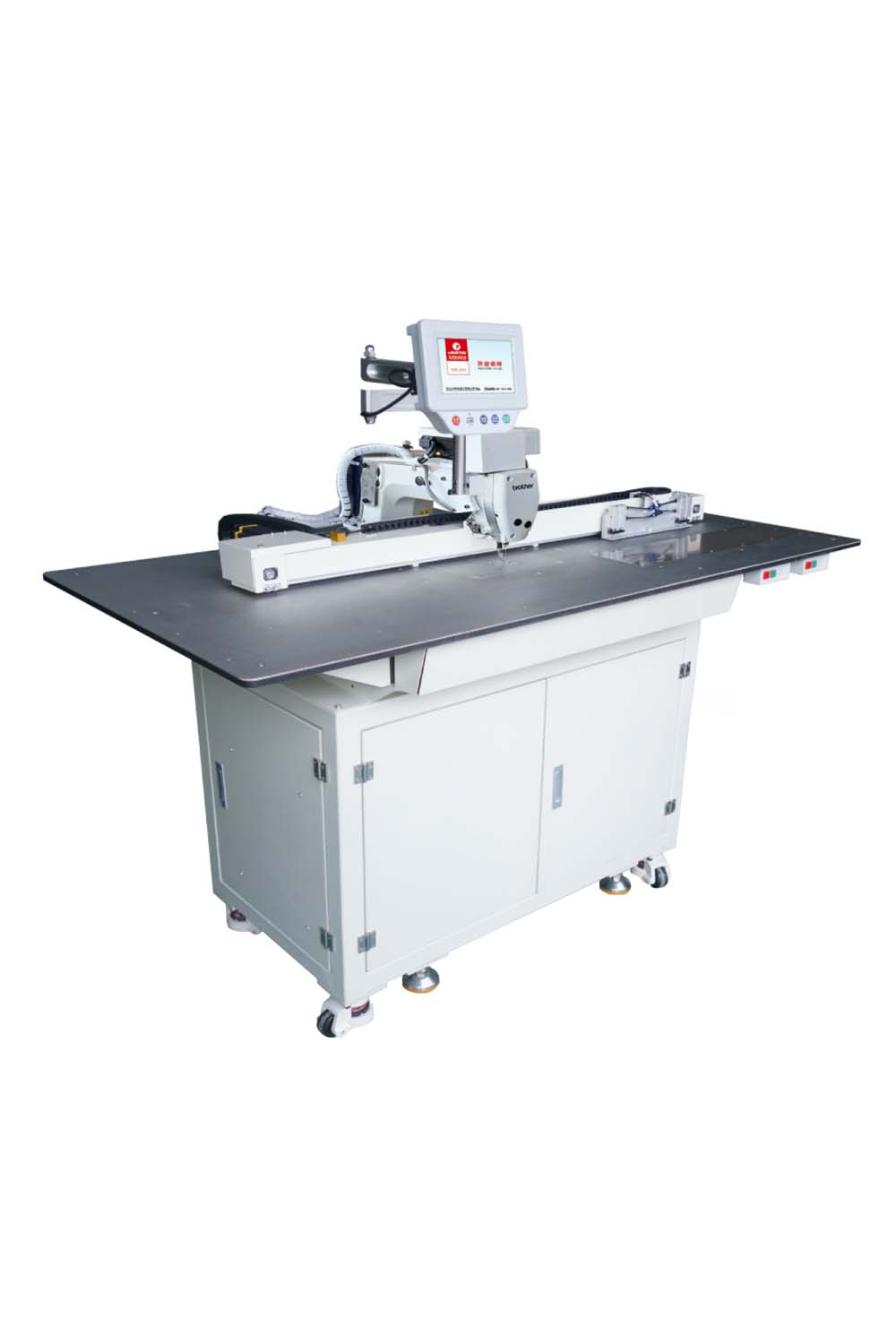

Fully Automatic Intelligent Sewing Machine

The Juita JTA3B-10020 is a high-precision, fully automatic intelligent sewing system designed for large-scale and high-efficiency sewing operations. It integrates automatic feeding, sewing, and receiving functions, reducing manual labor and ensuring consistent stitch quality.
With smart features like automatic counting, thread-break alarms, and microcomputer control, it enhances productivity, reliability, and accuracy in every cycle.

Key Features:

• Fully automatic operation – includes automatic feeding and receiving functions.

• Automatic counting system for efficient batch production.

• Thread-breaking and button thread-end alarm functions for smooth operation.

• Electronic presser foot for stable fabric control.

• Equipped with all pattern sewing machine functions (optional, sold separately).

• Microcomputer control system for precise and intelligent operation.

• Easy programming and operation through digital interface.

• Ensures high-quality stitching with minimal operator intervention.

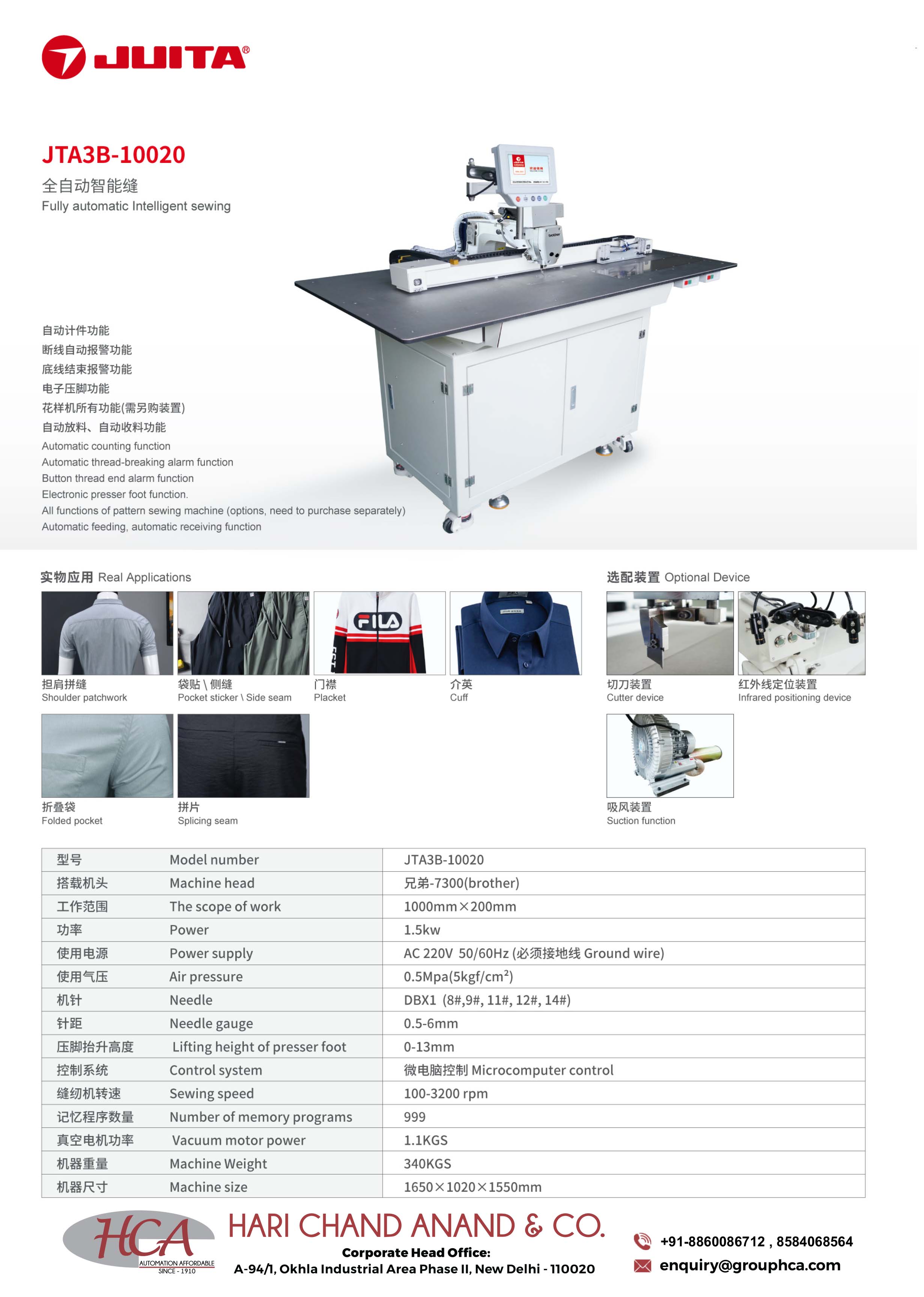

Technical Specifications:

• Model Number: JTA3B-10020

• Machine Head: 7300 (Brother)

• Sewing Area: 1000mm × 200mm

• Power: 1.5 kW

• Power Supply: AC 220V, 50/60Hz (Ground wire)

• Air Pressure: 0.5 MPa (5 kgf/cm²)

• Needle: DBX1 (#8, #9, #11, #12, #14)

• Needle Gauge: 0.5–6mm

• Presser Foot Lift Height: 0–13mm

• Control System: Microcomputer control

• Sewing Speed: 100–3200 rpm

• Program Memory Capacity: 999 programs

• Vacuum Motor Power: 1.1 kW

• Machine Weight: 340 kg

• Machine Dimensions (L×W×H): 1650 × 1020 × 1550 mm

Applications:

Perfect for garment factories and mass-production units, this machine is ideal for precision sewing of large panels, uniforms, and other complex fabric operations requiring automation and consistency.
