JTA3B-06S | Automatic Side Slitting Machine (For Knitting)
Automatic Side Slitting Machine (For Knitting)
Description

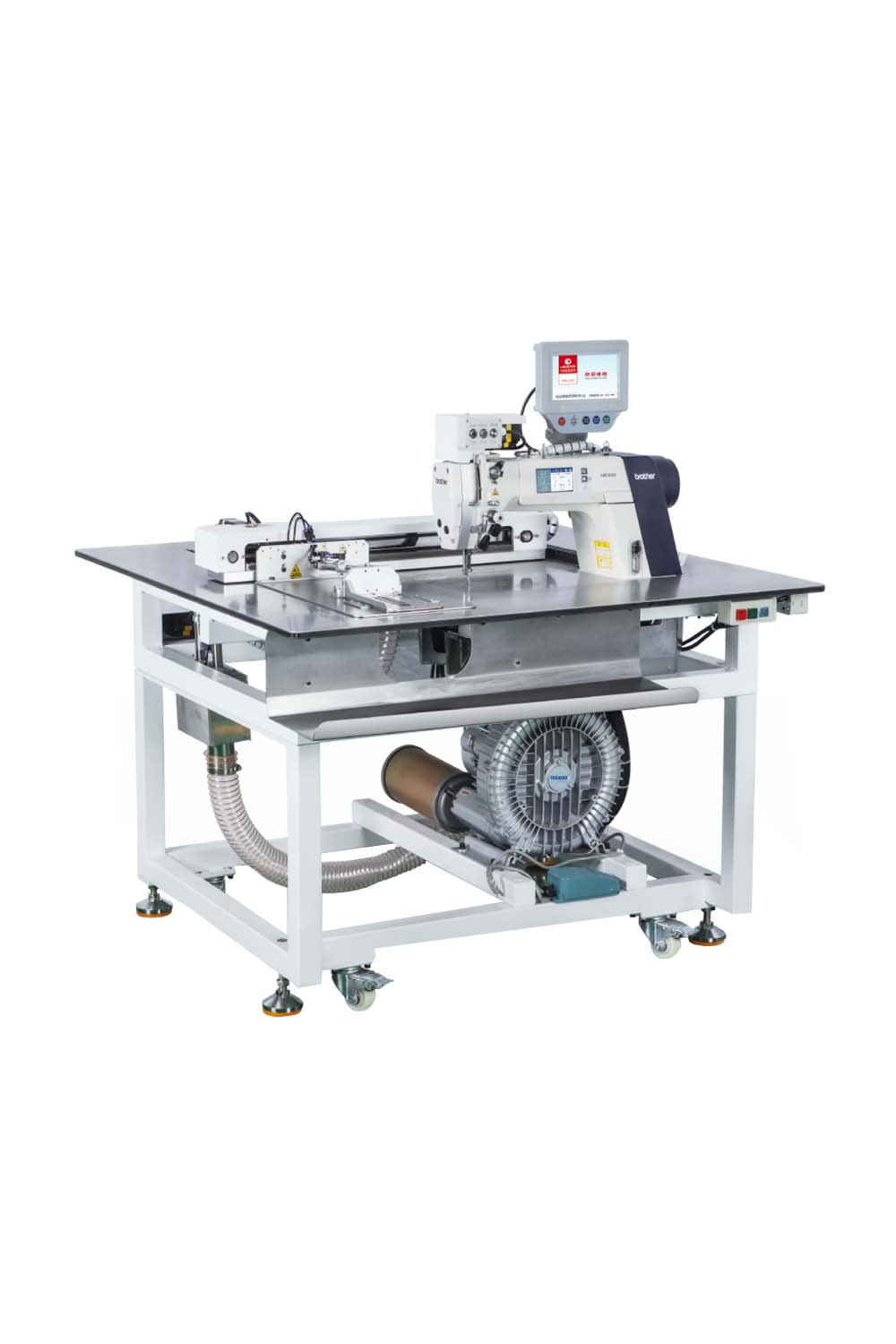

The Juita JTA3B-06S is an advanced automatic side slitting machine designed specifically for knitwear processing. Built with high precision, intelligent automation, and powerful performance, it ensures clean, consistent, and efficient side slitting for knitted fabrics. Equipped with a microcomputer control system, electronic presser foot, and automatic alarm functions, this model enhances productivity while minimizing manual intervention.
Key Features:
-
Automatic Counting Function: Keeps accurate production data for better management.
-
Thread-Breaking Alarm Function: Alerts operators to prevent stitching defects.
-
Button Thread End Alarm: Ensures continuous and uninterrupted operation.
-
Electronic Presser Foot: Enables smooth fabric handling for various knit types.
-
Microcomputer Control System: User-friendly and precise, allowing programmable operations.
-
High Efficiency: Capable of continuous operation with stable performance.
-
Optional Pattern Sewing Functions: Expandable to meet customized production needs.
-
Built for Knitting Applications: Optimized for soft and stretchable knitted materials.

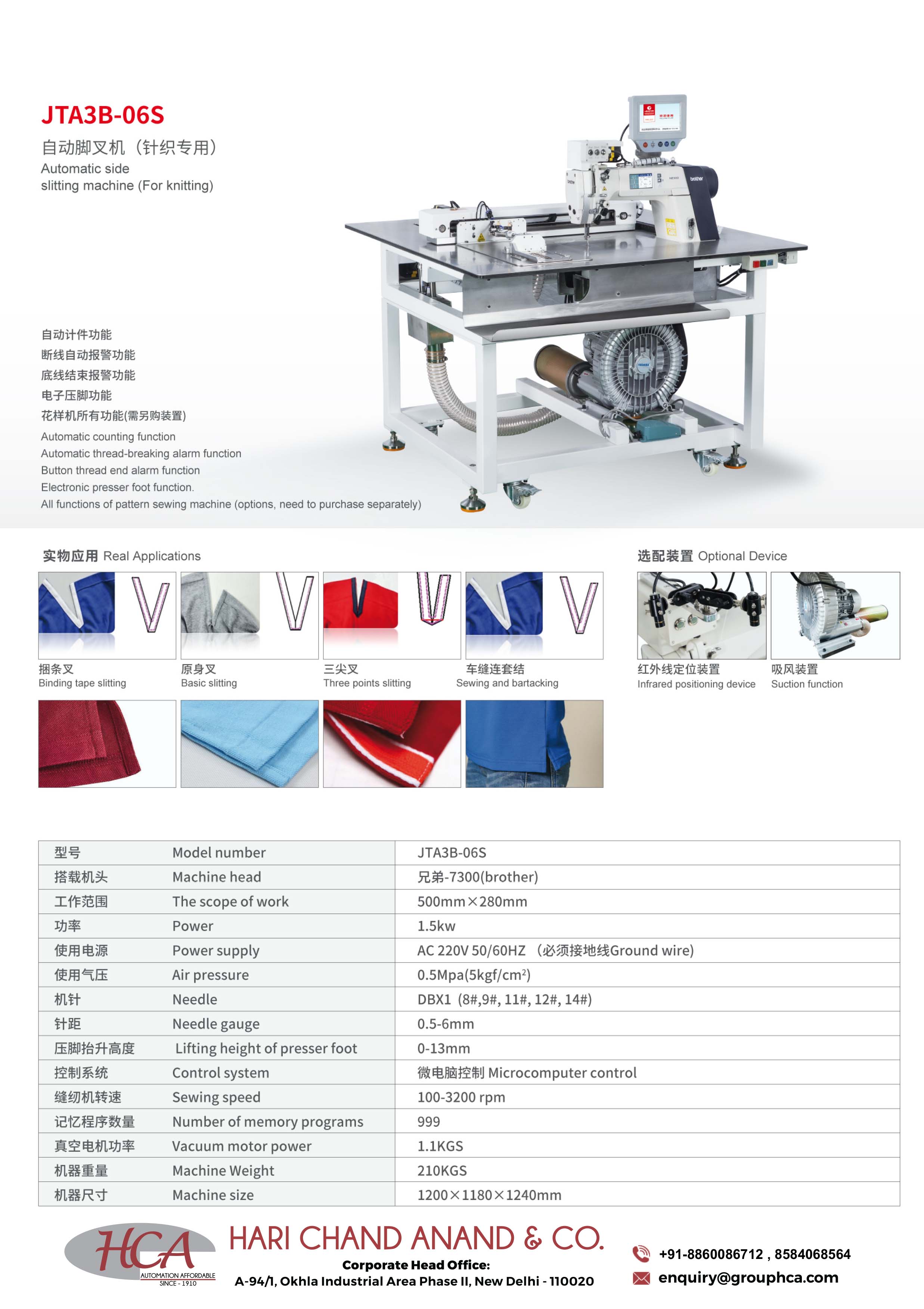

Technical Specifications:
| Specification | Details |
|---|---|
| Model | JTA3B-06S |
| Machine Head | 7300 (Brother) |
| Work Area | 500mm × 280mm |
| Power | 1.5 kW |
| Power Supply | AC 220V, 50/60Hz |
| Air Pressure | 0.5 Mpa (5kgf/cm²) |
| Needle Type | DBx1 (8#, 9#, 11#, 12#, 14#) |
| Needle Gauge | 0.5 – 6mm |
| Presser Foot Lift | 0 – 13mm |
| Control System | Microcomputer |
| Sewing Speed | 100 – 3200 rpm |
| Memory Programs | Up to 999 |
| Vacuum Motor Power | 1.1 kW |
| Machine Weight | 210 kg |
| Machine Size | 1200 × 1180 × 1240 mm |
Applications:
Ideal for knitwear factories, T-shirt manufacturing, and garment production units, this machine is designed for precise side slitting, trimming, and reinforcement on knitted fabrics with consistent stitch quality and clean finishing.
