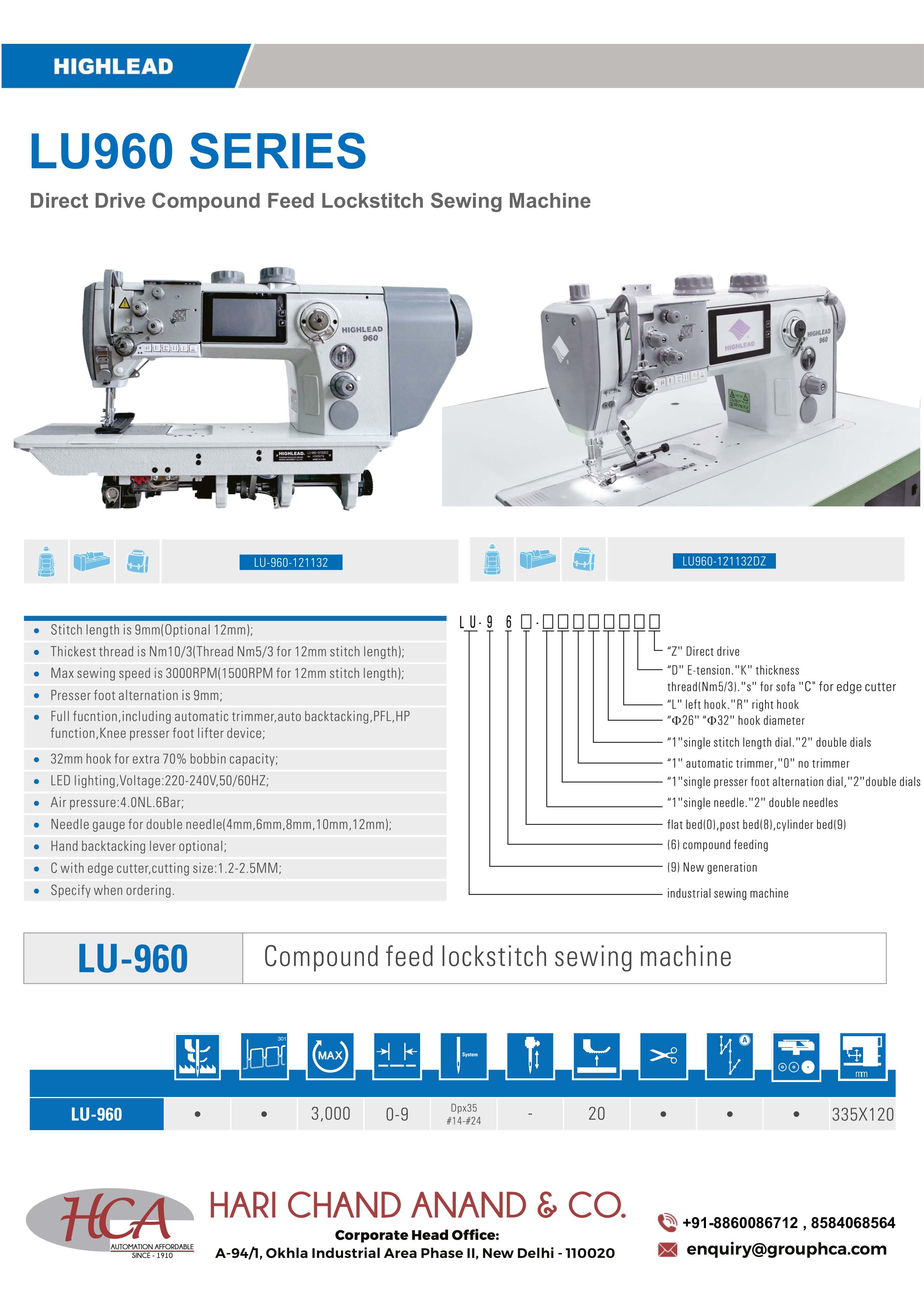

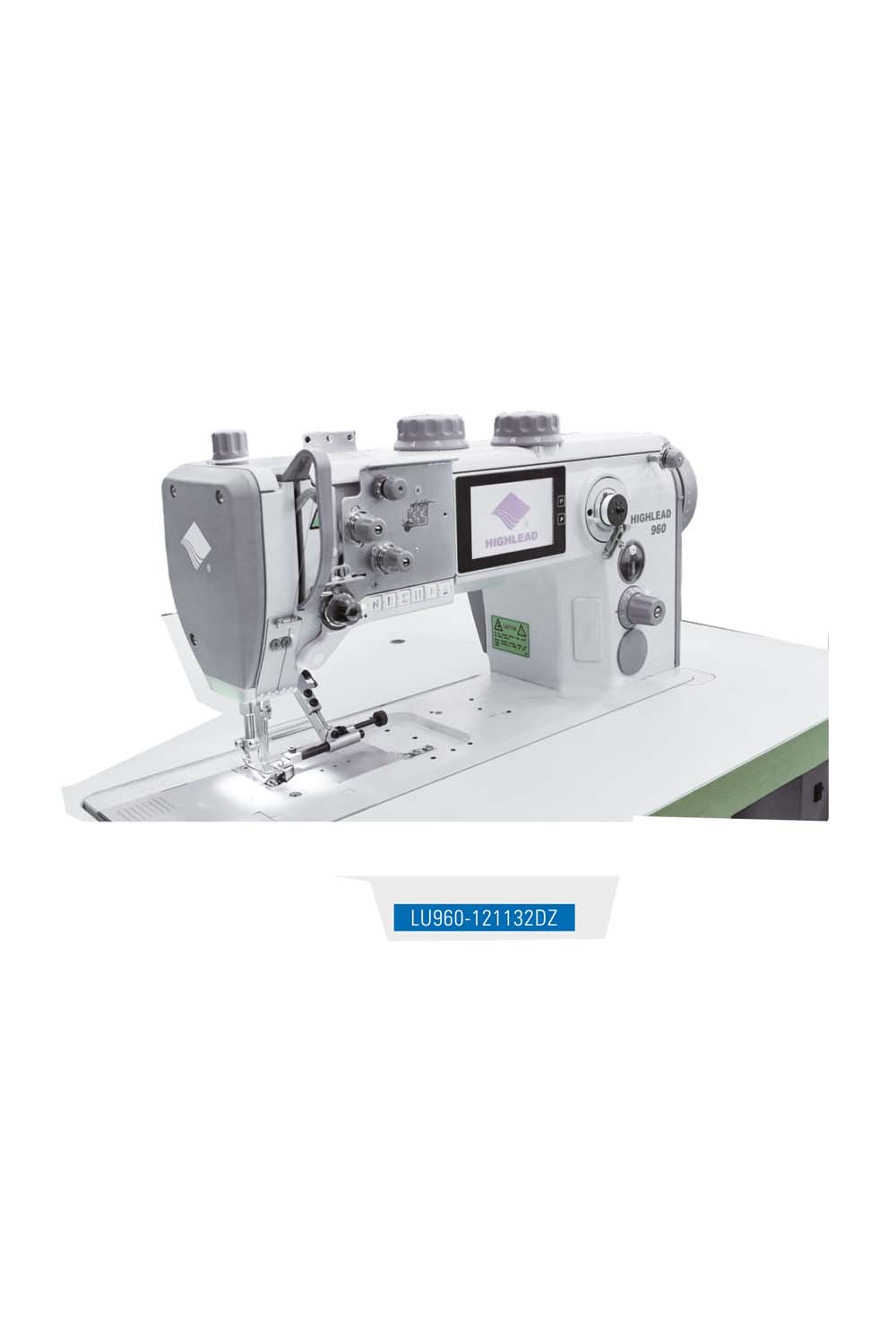

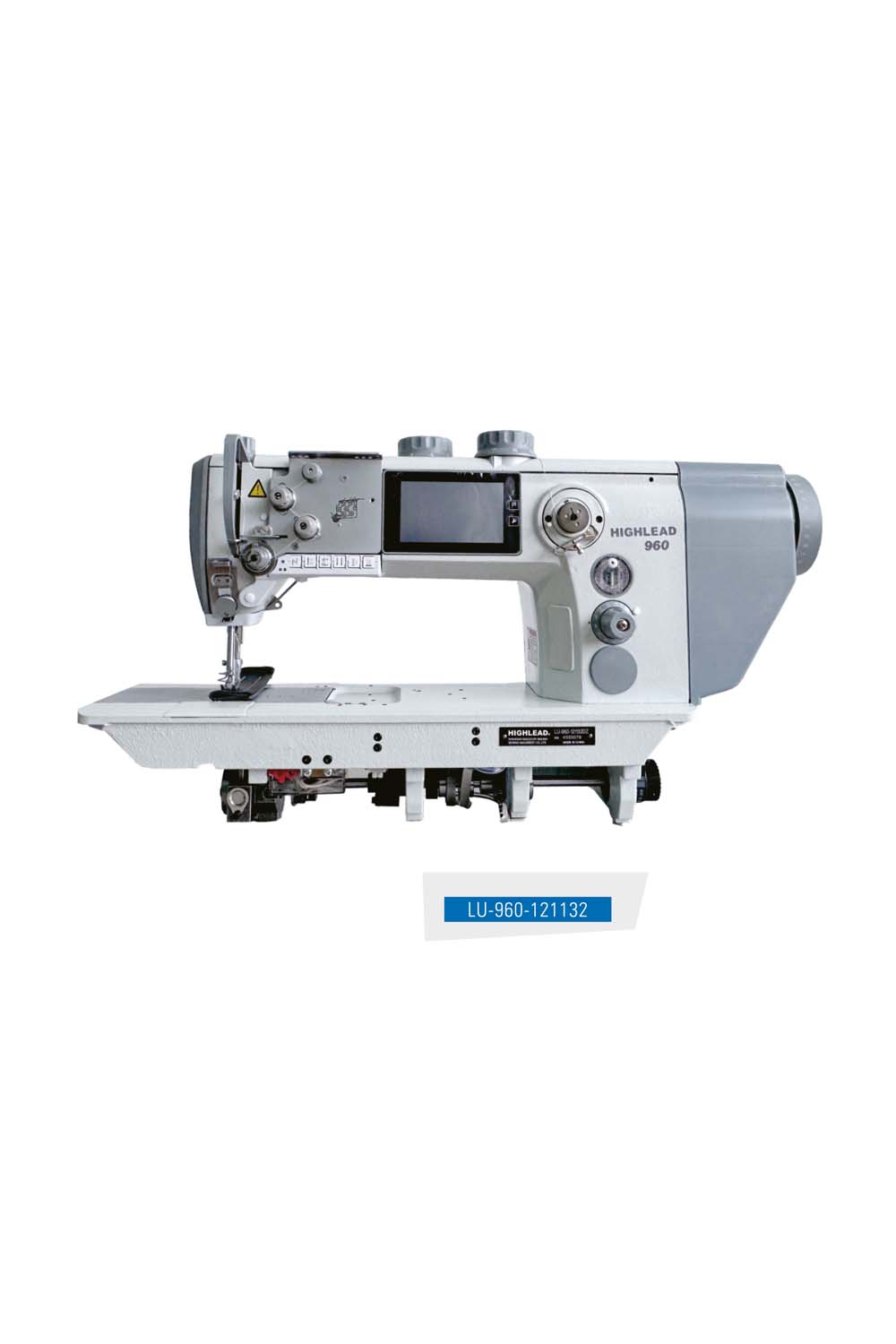

Direct Drive Compound Feed Lockstitch Sewing Machines

The Highlead LU960 Series is a state-of-the-art line of direct drive compound feed lockstitch sewing machines, built to handle demanding industrial applications with precision and efficiency. Designed for versatility, the LU960 series combines high stitch quality, heavy thread capability, and advanced automation features, making it a preferred choice for heavy-duty manufacturing.

This series supports a maximum stitch length of 9mm (optional 12mm) and can operate with Nm10/3 thread (or Nm5/3 when using 12mm stitch length). The powerful compound feed mechanism ensures reliable feeding across multiple layers of leather, canvas, technical textiles, and other tough materials.

With a maximum sewing speed of 3,000 RPM (1,500 RPM for 12mm stitch length), the LU960 balances productivity with precision. Its presser foot alternation of 9mm allows for smooth handling of bulky seams, while the 32mm large hook increases bobbin capacity by 70%, reducing downtime.

The LU960 series is fully equipped with automatic functions, including thread trimmer, backtacking, pneumatic foot lift (PFL), half-stitch positioning (HP), knee presser foot lifter, and LED lighting. For advanced operations, models with the edge cutter (C version) provide precise trimming with a cutting size of 1.2–2.5mm.

Available in single and double needle configurations (needle gauges 4–12mm), the LU960 delivers consistent, professional results for industries such as automotive, upholstery, leather goods, footwear, tents, and technical textiles.edge cutter sewing machineautomatic trimmer sewing machine
