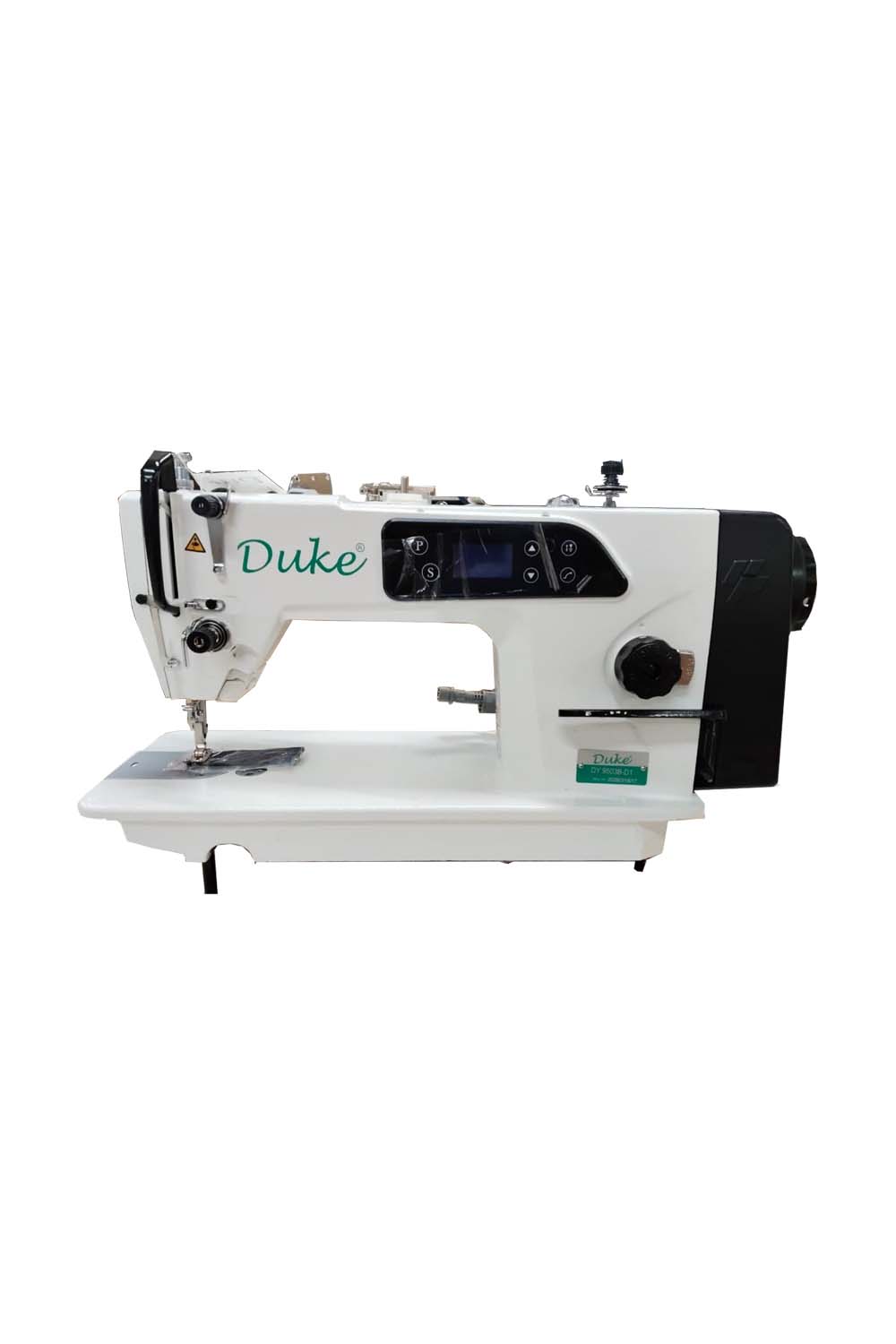

DY 9503B-D1 | High Speed Single Needle Lockstitch Sewing Machine

High Speed Single Needle Lockstitch Sewing Machine

High Speed Single Needle Lockstitch Sewing Machine

Sale priceRs. 0.00
Sold out

Description

This single needle, high-speed lockstitch sewing machine series uses a link take-up, a rotating hook, and a link-driven feed mechanism, thereby allowing it to maintain precise stitching even when changing between low and high speed as well as forward and reverse stitching. The arm shaft and hook are driven by bevel gears, which ensures quality stitch appearance. The dial-operated stitch regulator makes it easy to adjust and maintain stitch length. The different subclasses can be used to sew light and medium-weight materials up to and including medium-heavy weight materials such as leather, canvas, plastics, etc.


Specification

  • Max. Sewing Speed: 3000 r.p.m
  • Stitch Length: 0-8mm
  • Needle Bar Stroke: 35mm
  • Pressure Foot Left: By Hand-6mm, By Knee- 13mm
  • Needle Size: DP x 5 18#-24#
  • Feed Dog: 3 rows of Teeth
  • Rotating Hook: Auto Lubricating Large Hook
  • Lubrication: Auto Lubricated
  • Motor: 370 Clutch Motor


Download Catalogue Contact Now
×
