1. Advanced Cutting Head & Tooling
Dual Tool Holder System: Equipped with two sets of
oscillating knives and punch sets for simultaneous
multitasking.

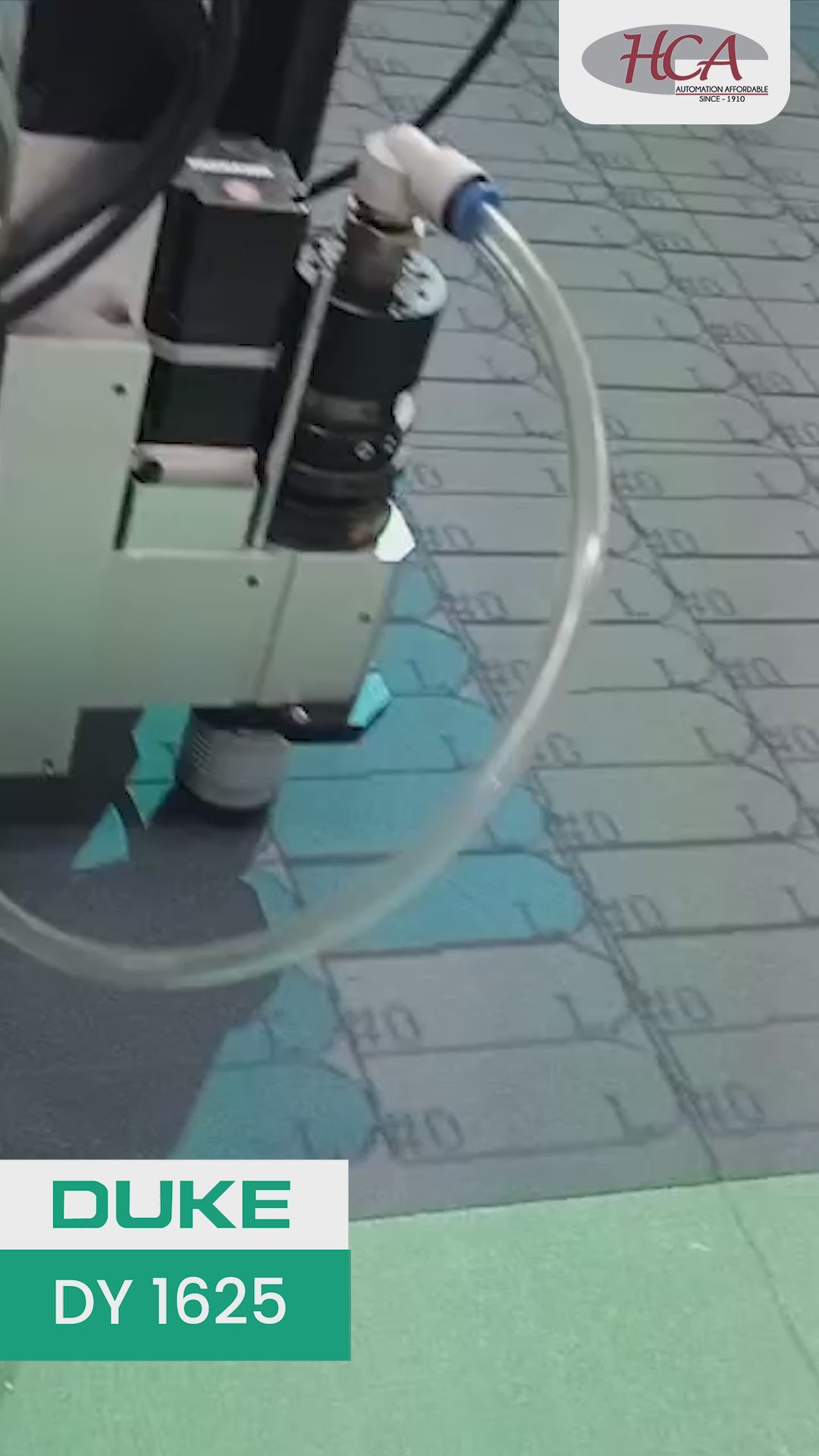

Oscillating Knife (Shenzhen CaiLun): High-frequency
vibration for clean edges on thick or soft leather.
Punching & Marking: Includes a high-speed punch set
(Hongke CNC) and a dedicated marking pen for
pattern identification.
2. Vision & Scanning Intelligence
Scanning System: Integrated Hongke CNC Scanner for
rapid material contour capture.
Industrial Imaging: Daheng Industry Camera
(MER2-2000-6GC) paired with a high-fidelity Kowa Lens.
Projection System: Ricoh PJ WX100ST Projector for
real-time nest visualization and material optimization.
3. Motion & Drive System
Yaskawa Servo Motors: A 10-motor configuration (in-
cluding 400W X/Y/Gantry motors and 100W Z/A axis
motors) ensures high-torque stability.
Transmission: A robust blend of Linear Rails, Gear
Racks, and high-precision Ballscrews.
Safety: Equipped with 10 limit sensors and a dedicated
Emergency Power Button.
4. Vacuum Adsorption Platform
Platform Construction: 25mm Heavy-duty Aluminum
table.
Power: Dual 9.5kw Ruijing Vacuum Pumps.
Control: 54 independent vacuum units for localized,
high-strength material hold-down.
