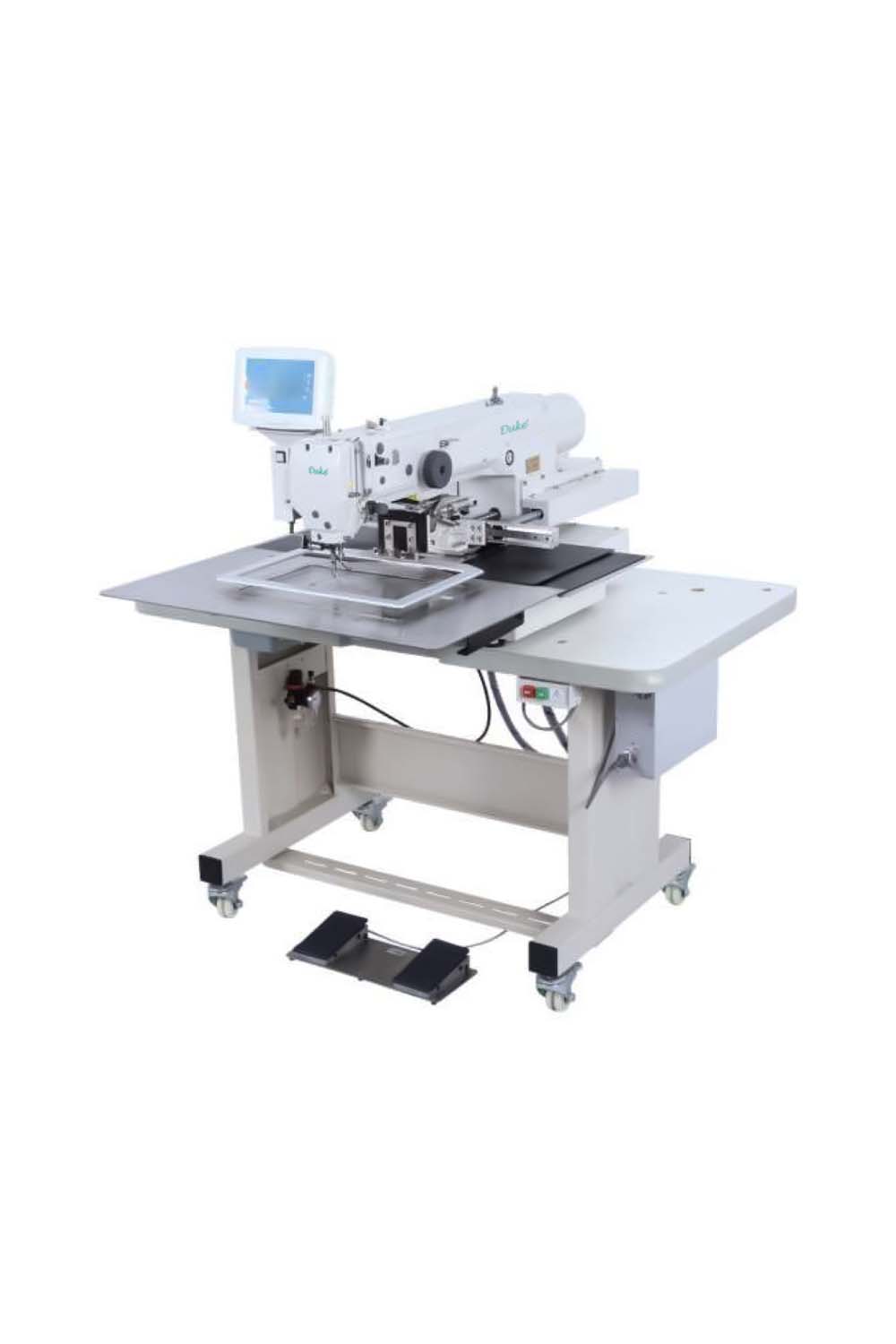

DY 3020 | HIGH-PERFORMANCE PROGRAMMABLE ELECTRONIC PATTERN SEWING MACHINES

HIGH-PERFORMANCE PROGRAMMABLE ELECTRONIC PATTERN SEWING MACHINES

HIGH-PERFORMANCE PROGRAMMABLE ELECTRONIC PATTERN SEWING MACHINES

Rs. 0.00
Sold out

Description

Engineered for Precision, Built for Scale. Featuring the industry-standard Mitsubishi-type
head design paired with the highly reliable, ultra-responsive Dahao Control System. This
combination ensures flawless stitching, high-speed efficiency, and user-friendly pattern management.

Specification

  • Machine Model: DY 3020
  • Sewing Area: 300 x 200mm
  • Max Sewing Speed: 2500 RPM
  • Speed Adjustment Scope: 200 - 2000RPM(Adjustable in 10 RPM increments)
  • Stitch Length: 0.1- 12.7mm(Min. resolution: 0.1mm)
  • Max Stitch Count: 8,000 stitches per pattern
  • Enlarge & Reduce Scale: X, Y-axis: 10%-200% (Min. resolution: $0.1|%$)
  • Needle Type: DPx17 #18
  • Hook System: Large Capacity Rotary Hook
  • Pressure Foot Type: Pneumatic
  • Lifting of Clamp: 32mm
  • Lifting of Intermediate Presser: 20mm
  • Stroke of Intermediate Presser: 4-10mm
  • Control System: Dahao Control System
  • Motor Type: Direct Drive Servo Motor
  • Power Supply: AC 220V, 750W
  • Net Weight: 220kg

Feature

Designed to handle heavy-duty materials with absolute precision. This series is the perfect automated solution for manufacturing:

  • Leather Goods: Wallets, notebook covers, watch straps, and premium bags.
  • Footwear & Accessories: Shoes, sports footwear, and visor caps.
  • Trademarks & Labels: High-speed, identical replication of brand logos and patches.
  • Heavy-Duty Fabric Assemblies: Luggage straps, harnesses, and automotive interiors.
