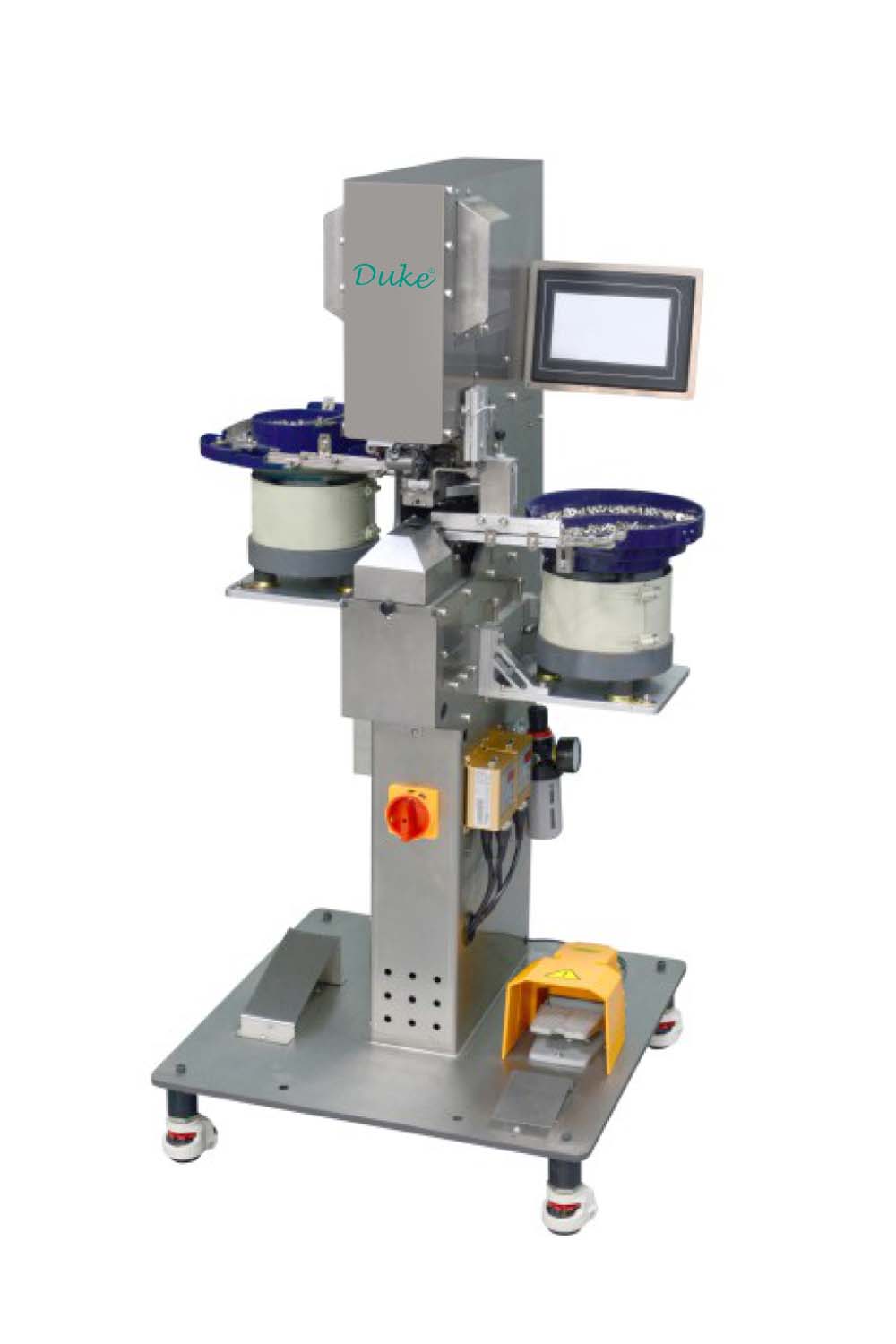

Fully Automatic Punching & Fastening Machine (Snap Button & Eyelet Button Attaching Machine)

The Duke DE 8833 is a fully automatic servo-driven snap button and eyelet button attaching machine designed for high-precision, safe, and efficient fastening in garment production.
It supports metal snap buttons, four-part buttons, and eyelets with automatic feeding, pre-punching, and optional membrane pad attachment.

Equipped with a PLC control system, laser positioning, automatic counter, and EU-standard finger protection, it offers a high level of safety and productivity.

✅ Applications

• Snap buttons

• Metal four-part buttons

• Eyelet buttons

• Suitable for denim, shirts, jackets, uniforms, trousers, bags, etc.

✅ Key Features

• Servo motor + PLC control

• Automatic button feeding & loading

• Hole pre-punching + attaching in a single operation

• Finger safety protection (EU-standard) – auto stop & return if finger detected

• Laser positioning with adjustable brightness

• Auto attaching pressure buffer – no adjustment required for fabric thickness

• Automatic counter

• Adjustable binding/attaching speed

• Membrane pad can be added automatically

• Oil-proof design to prevent fabric staining

• Castor wheels for easy movement

• Supports all types of metal four-part buttons

• Quick changeover – different button types with conversion kits

✅ Technical Specifications (Bullet Format)

• Drive Mode: Servo motor

• Max Power: 0.75 kW

• Voltage: 220V

• Frequency: 50/60 Hz

• Speed: 50–60 times/min

• Throat Depth: 60 mm

• Throat Height: 45 mm

• Operation Height: 880 mm

• Weight: 140 kg

• Machine Dimensions (W × D × H): 700 × 500 × 1290 mmMetal button attaching equipment
