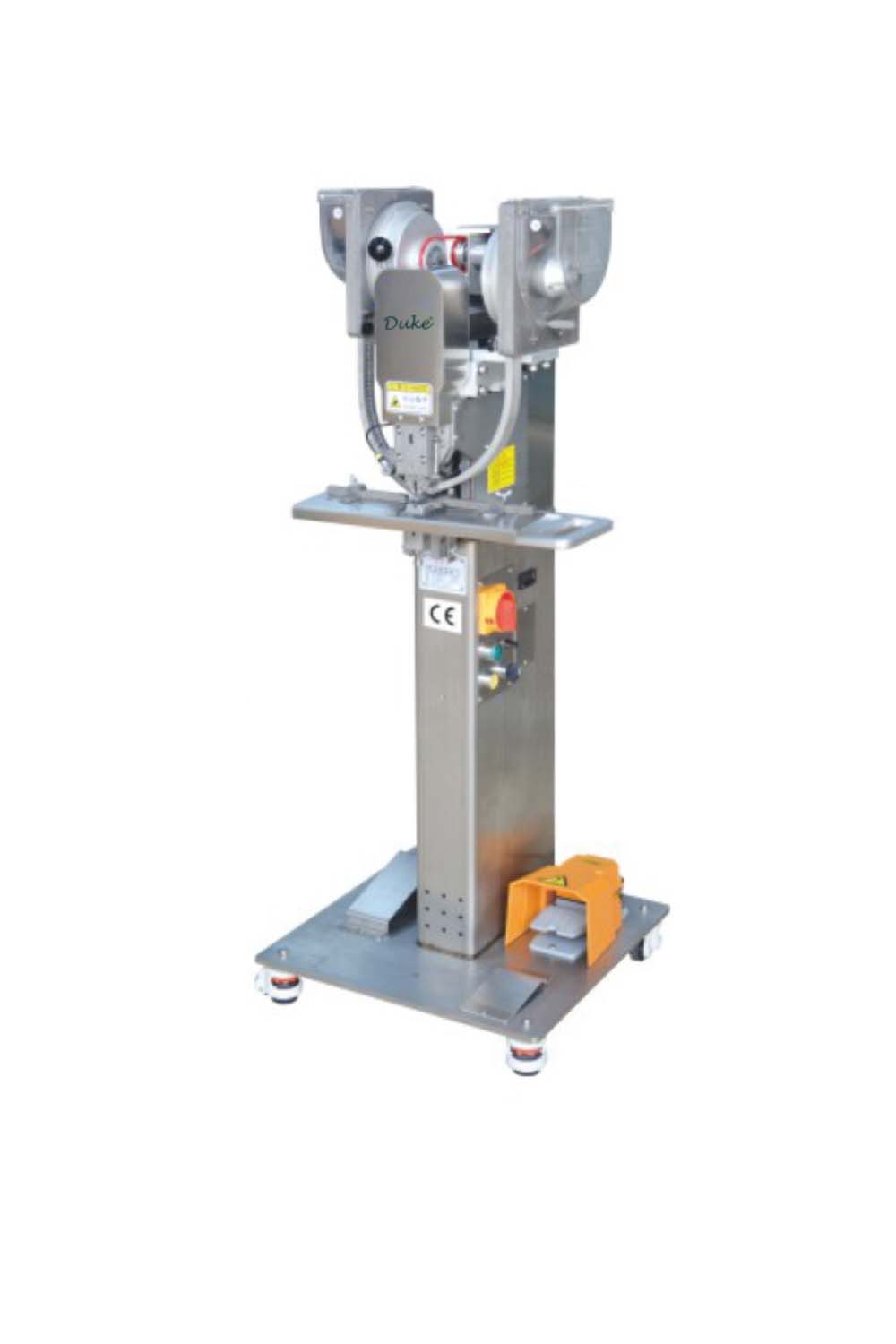

DY 93/2K | Fully Automatic Button Machine (prong snap Button and plastic snap button)

Fully Automatic Button Machine (prong snap Button and plastic snap button)

Fully Automatic Button Machine (prong snap Button and plastic snap button)

Rs. 0.00
Sold out

Description

This machine is designed for the automatic attachment of Duke DY 93/2K prong snap buttons and plastic snap buttons, making it an efficient solution for garment and apparel manufacturing. It is equipped with an advanced finger protection safety device that detects if an operator's finger is positioned under the mould during operation. When detected, the machine immediately stops and automatically returns to the shutdown position, helping to protect the operator's fingers and ensuring safer operation.

Specification

  • Drive mode: Servo motor
  • Max. power: 0.75 KW
  • Voltage: 220V
  • Frequency: 50/60 Hz
  • Speed: 200 times/min
  • Throat depth: 50 mm
  • Throat height: 18 mm
  • Operation height: 880mm
  • Weight: 80 kg
  • Dimension WxDxH: 500x500x1300 mm

Feature

1. Provided CE certification and Security finger protection function witch passing EU standard.
2. Auto button feeding device (avoid feeding buttons manually by hand to keep safety).
3. Auto attaching pressure buffer regulator (no needed adjustment for garment thickness).
4. Automatic counter.
5. Precise attaching position of laser light pointer with adjustable brightness.
6. Continuous attaching mode and discontinuous attaching mode supported.
7. Auto and manual mode supported for machine adjustment.
8. Adjustable positioning plate applicable to prong snap button and snap button).
9. Castor installed for easy movement.
10. Installed left foot pedal conforming to human ergonomics.
11. Servo motor with speed adjustable and constant torque adopted.
12. Attaching speed is adjustable.
13. Operation period is adjustable for feeding motor.
