Description

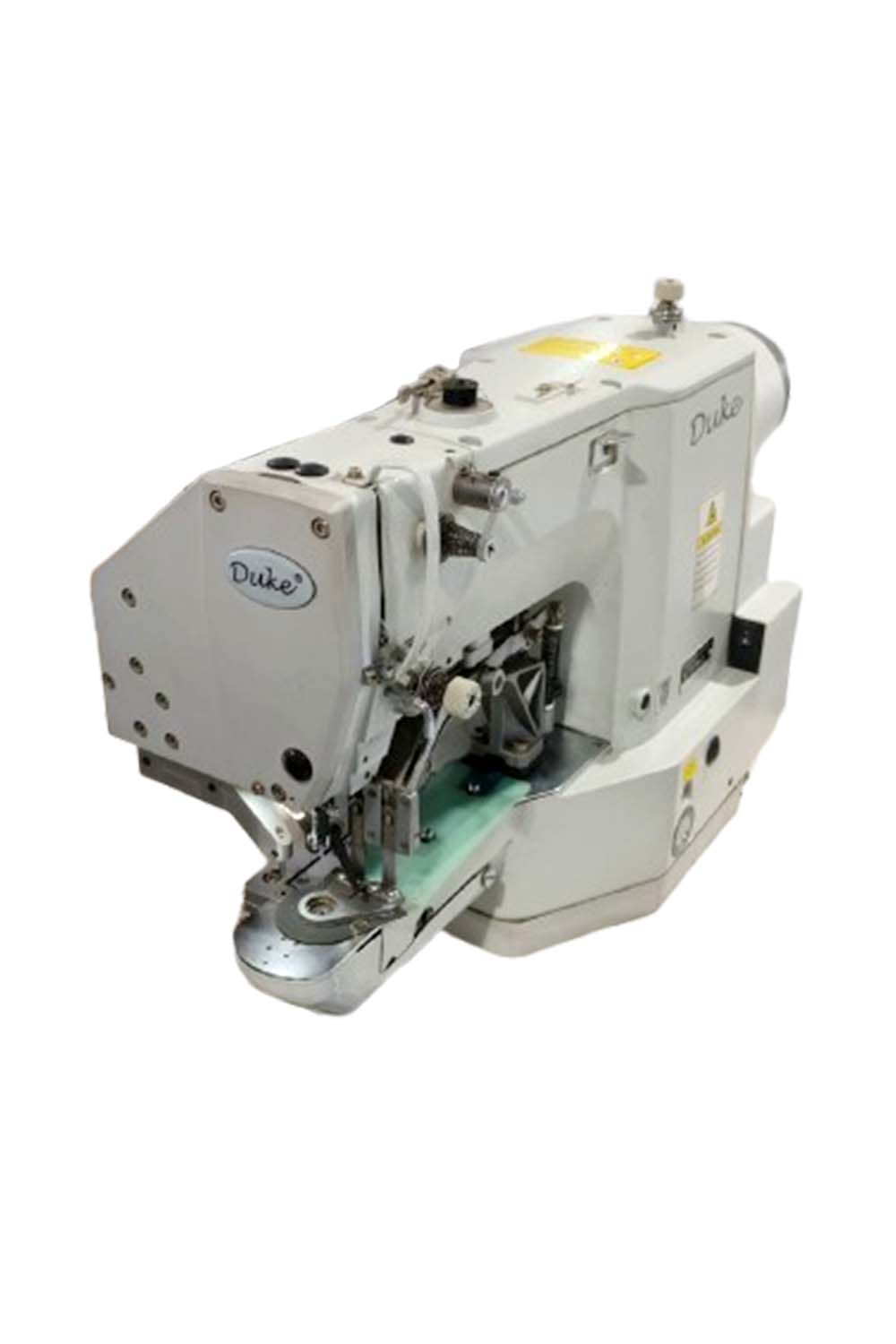

The DY 430G-03 is a high-speed, electronic punching and bar tacking powerhouse designed for precision and efficiency. With a direct-drive AC servo motor and advanced pulsed motor technology, this machine delivers consistent, high-quality stitches even at speeds of up to 3200 rpm.

Specification

  • Model: DY 430G-03
  • Machine Type: Electronic Punching & Bartacking Machine
  • Application: Punching & bar tacking, cap hole sewing
  • Stitch Type: Single-needle flat stitch
  • Max Sewing Speed: 3200 RPM
  • Sewing Area: 15 mm × 15 mm
  • Stitch Length: 0.05 – 12.7 mm
  • Max Stitches per Pattern: 5,000 stitches
  • Pre-loaded Patterns: 89 patterns
  • Pattern Storage: Up to 512 custom patterns (via CF card)
  • Presser Foot Lift: Max 17 mm
  • Hook Type: Semi-rotary standard rotary hook
  • Motor: AC Servo Motor (Direct Drive) – 550W
  • Air Pressure: 0.5 MPa (1.5 L/min)
  • Weight (Head): Approx. 56 kg

Feature

Precision Control: Utilizing an intermittent feed system driven by apulsed motor for exact stitch placement.

Versatile Stitching: Offers a wide stitch length range (0.05mm to 12.7mm) and comes pre-loaded with 89 patterns.

High Efficiency: Features a standard thread wiper and trimmer to reduce manual post-processing time.

Expandable Memory: Supports CF cards, allowing you to upload up to 512 custom patterns with a total capacity of 500,000 stitches.

User-Centric Design: The pulsed motor presser lifter ensures smooth operation with a maximum lift height of 17mm.
