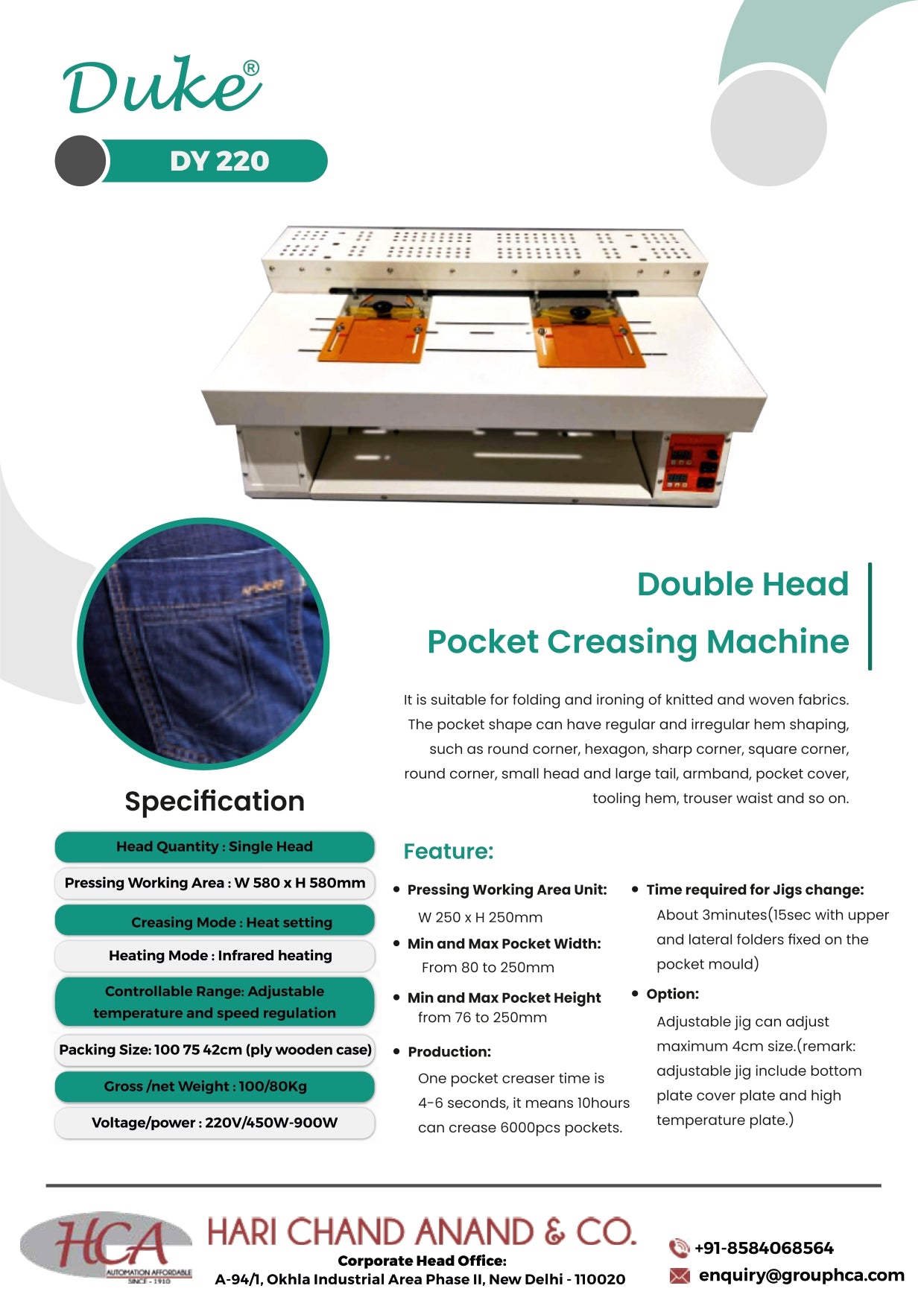

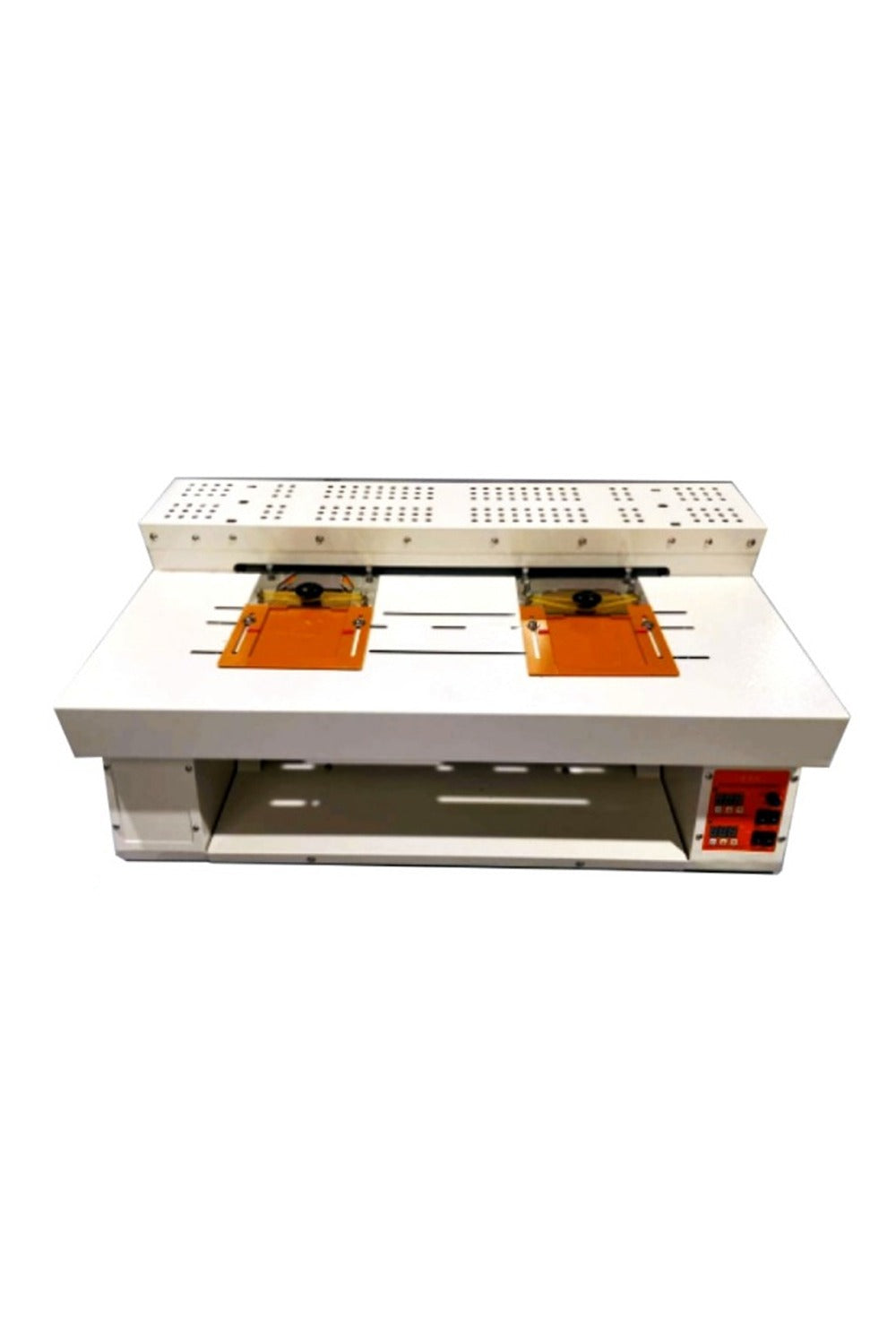

DUKE DY 220 | Duke pocket creasing machine ( double head )

Duke pocket creasing machine ( double head )

Duke pocket creasing machine ( double head )

Sale priceRs. 0.00
Sold out

Description

Single Head Pocket Creasing Machine, It is suitable for folding and ironing of knitted and woven fabrics. The pocket shape can have regular and irregular hem shaping, such as round corner, hexagon, sharp corner, square corner, round corner, small head and large tail, armband, pocket cover, tolling hem, trouser waist and so on.


Specification

• Head Quantity : Single Head
• Pressing Working Area : W 580 x H 580 mm
• Creasing Mode : Heat Setting
• Heating Mode : Infrared Heating
• Controllable Range : Adjustable temperature and Speed regulation
• Packing Size : 100-75*42 cm ( ply wooden case )
• Gross/Net Weight : 100 Kg/80Kg
• Voltage/Power : 220V/450W-900W"


Feature

• Pressing Working Area Unit: W 250 x H 250mm
• Min and Max Pocket Width: From 80 to 250mm
• Min and Max Pocket Height from 76 to 250mm
• Production: One pocket creaser time is 4-6 seconds, it means 10hours can crease 6000pcs pockets.
• Time required for Jigs change: About 3minutes(15sec with upper and lateral folders fixed on the pocket mould)
• Option: Adjustable jig can adjust maximum 4cm size. (remark: adjustable jig include bottom plate cover plate and high temperature plate.)
