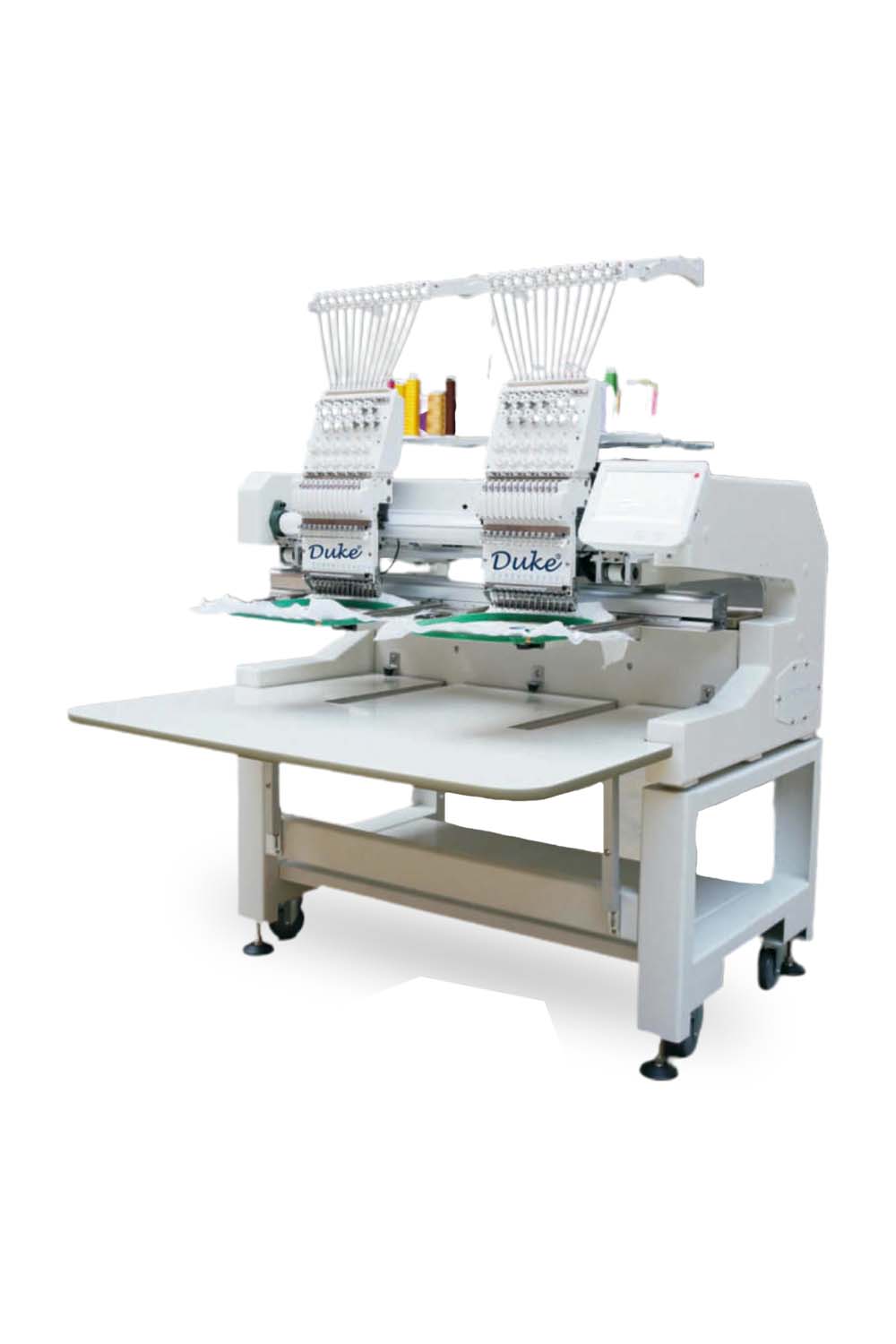

The Duke DY 1202H Special Structure Embroidery Machine is a high-performance embroidery solution designed for flat embroidery, caps, and finished garments. Built with a robust structure and equipped with automatic features such as thread trimming, color changing, and external thread winding, it ensures continuous, stable, and high-precision production.

Its advanced LCD control panel provides real-time stitching updates and full-screen design preview, making pattern management simple and efficient. With a maximum speed of 1200 RPM, large memory capacity, and multi-language support, the DY 1202H delivers exceptional flexibility for factories, boutique units, and commercial embroidery workshops.

Designed for versatility, the machine supports optional devices like cording, sequins, beads, and rhinestone attachments—making it suitable for both simple monograms and premium decorative work. A wide voltage input range ensures stable performance even in areas with fluctuating electricity.

Features:

• Suitable for flat embroidery, cap embroidery, and finished garments

• Auto thread trimmer and auto color change

• 270° wide cap frame

• Real-time stitch display

• Full-screen design preview

• Auto start and color change (up to 200 color changes)

• Wide voltage input (AC 80–260V)

• Safe DC36V output

• Automatic external thread winding device

• Compatible with cording, sequins, beads, and rhinestone attachments

Specifications:

• Model: DY 1202H

• Heads: 1

• Needles: 12 (9/15 available)

• Maximum Speed: 1200 RPM

• Memory Capacity: 2,000,000 stitches (200 designs)

• Embroidery Area: 500 × 500 × 400 mm

• Power Consumption: 150W

• Supported Languages: Chinese, English, French, Russian, Dutch, Spanish, Portuguese, Turkish, German, Arabic, Thai, Vietnamese

• Machine Weight: 310–360 kg

• Machine Dimensions: 135 × 113 × 160 cm
