DY 430GT-01 | Direct Drive Lockstitch Electronic Bar Tack Machines (Light & Heavy Duty)

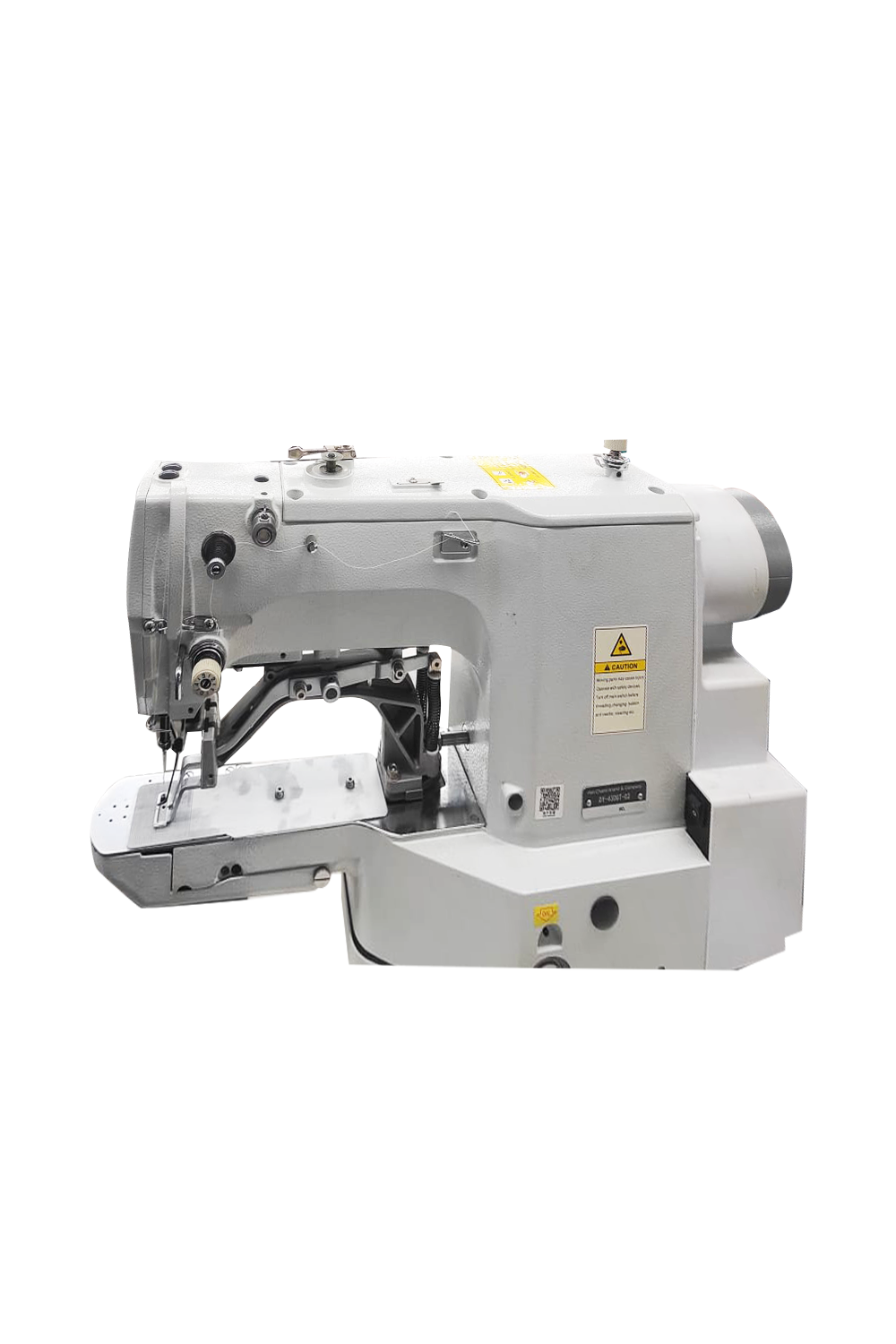

Duke DY 430GT-01 & DY 430GT-02 Electronic Bar Tack Sewing Machines – Light and Heavy Duty
Direct Drive Lockstitch Electronic Bar Tack Machines (Light & Heavy Duty)
Direct Drive Lockstitch Electronic Bar Tack Machines (Light & Heavy Duty)
Direct Drive Lockstitch Electronic Bar Tack Machines (Light & Heavy Duty)
Direct Drive Lockstitch Electronic Bar Tack Machines (Light & Heavy Duty)

Direct Drive Lockstitch Electronic Bar Tack Machines (Light & Heavy Duty)

Rs. 0.00
Sold out

Description

The Duke DY 430GT series includes two models—DY 430GT-01 for light-duty applications and DY 430GT-02 for heavy-duty fabrics—designed for high-speed, low-noise industrial bar tacking.

Both machines are equipped with a direct drive servo motor, reducing power consumption by up to 35% compared to traditional models. The maximum sewing speed of 3,200 SPM, combined with low vibration and noise, ensures comfortable and efficient operation even during extended use.

With a sewing area of 40 x 30 mm, these bar tack machines support flexible pattern creation for various garment types, from men's suits to jeans and lingerie. An intuitive operation panel allows easy adjustment of presser foot height without tools. The high-rigidity frame ensures stable performance and perfect stitch precision.

Designed for the modern garment factory, the Duke DY 430GT-01 and 430GT-02 support 89 built-in sewing patterns and allow expansion up to 200 custom programs via CF card.

Specification

  • Models: DY 430GT-01 (Light Duty), DY 430GT-02 (Heavy Duty)
  • Stitch Pattern: Single needle flat seam
  • Max Sewing Speed: 3,200 rpm
  • Sewing Area (X-Y): 40 x 30 mm
  • Needle Pitch: 0.05–12.7 mm
  • Gauge: Programmable (up to 210,000 needles)
  • Presser Foot Lift: Max 17 mm, motorized control
  • Thread Trimming, Clamping, Sweeping Devices: Standard
  • Motor: 550W AC Servo Motor
  • Data Storage: Flash memory + CF card support (50 user programs, 9 cycles)
  • Weight: Machine head ~56 kg | Control box ~14.2–16.2 kg
  • Power Supply: 100V/220V Single Phase | 200V–400V Three Phase
  • Application: Apparel, denim, sportswear, underwear, heavy-duty fabric
