DY 2000-C | Belt Loop Maker Machine

Belt Loop Maker Machine
Belt Loop Maker Machine
Belt Loop Maker Machine
Belt Loop Maker Machine

Belt Loop Maker Machine

Rs. 0.00
Sold out

Description

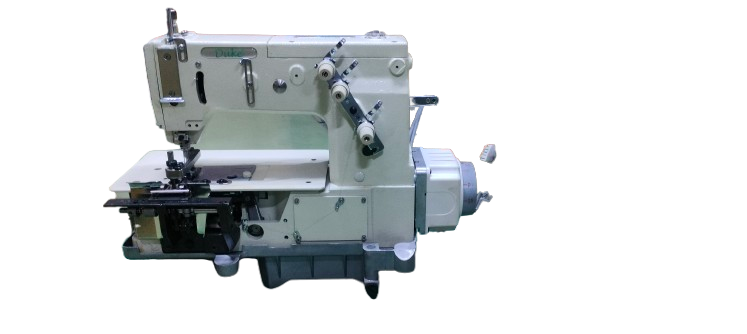

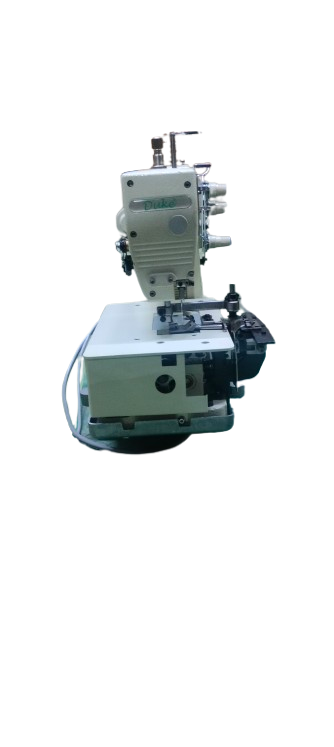

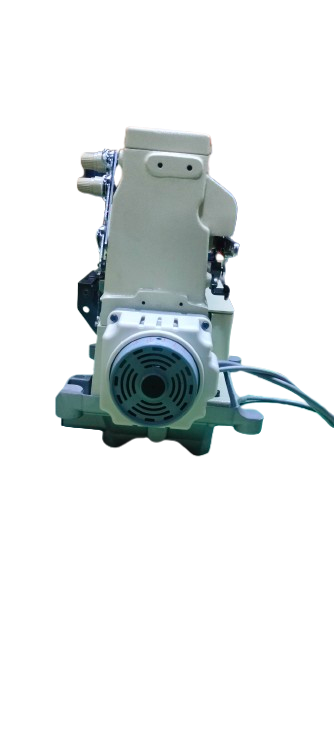

The Duke DY 2000-C is a high-speed 2-needle flat-bed belt loop making machine, engineered to deliver clean, precise loops for trousers, jeans, uniforms, and workwear. It comes with front-mounted fabric knives for automated trimming and shaping during the sewing process.

Designed for durability and high-volume production, the DY 2000-C supports stitch lengths from 9 to 12mm and operates at speeds up to 4500 rpm, making it ideal for mass manufacturing.

The machine is pre-equipped with standard folders (12mm for 1/4", 10mm for 7/32" or 3/16")—ensuring versatility in belt loop sizes.

Specification

  • Model: Duke DY 2000-C
  • Needles: 2
  • Threads: 3
  • Needle Gauge: 3/16
  • Needle Bar Stroke: 34mm
  • Stitch Length: 9–12mm
  • Maximum Speed: 4500 RPM
  • Presser Foot Lift: 8mm
  • Folder Sizes Included: 12mm (1/4"), 10mm (7/32", 3/16")

Feature

  • 2-Needle Flat-Bed Construction: For accurate belt loop formation
  • Integrated Front Fabric Knives: Seamless cutting during sewing
  • Pre-included Folders: For 12mm, 10mm, and 7/32" loop sizes
  • High-Speed Operation: Up to 4500 stitches per minute
  • Ideal for Mass Production: Jeans, trousers, uniforms, and belts

Catalogue Contact Now
