PUNCHING AND SEWING MACHINE

Rs. 0.00
Sold out

Description

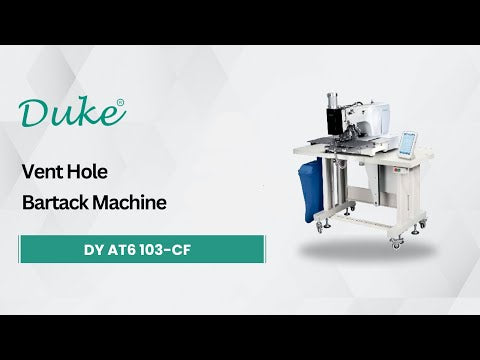

The Duke DY AT6103-CF is an advanced punching and sewing machine designed for the high-precision production of shoes, bags, hats, and accessories. This automated machine completes the punching and sewing processes in a single operation, enhancing speed and consistency.

Specification

  • Using: Flat-Stitching Pattern Sewing Machine (2-Time Hook)
  • Stitch: Single-Needle Flat Seam
  • Max. Sewing Speed: 2800 Rpm
  • Sewing Area (X x Y): 220×100
  • Feeding Device: Intermittent Feed (Pulsed Motor Drive)

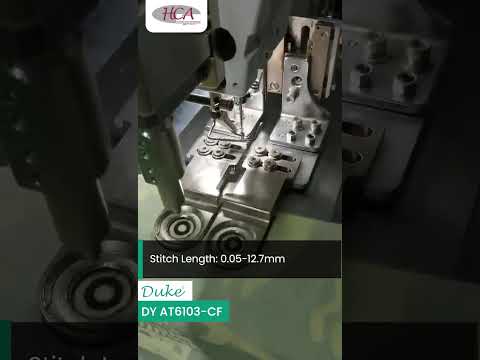

  • Stitch Length: 0.05- 12.7 mm
  • Max. Number of Stitches: 20000 stiches /1 Pattern
  • Press The Foot Drive Mode: Pneumatic
  • Height Of Presser Foot: Max. 30mm
  • Two-Step Presser Foot: One-Piece Presser Foot
  • Intermittent Pressure Height: 22 Mm
  • Stroke of Intermittent Pressure: o(Or)2-10 Mm (Factory Setting: 3mm)
  • Hooks: Twice The Shuttle (Standard Shuttle Is Optional)
  • Sweep Line Device: Standard Equipment
  • Tangent Device: Standard Equipment
  • Data Storage: Variable Electronic Gripper
  • Motor: 750W AC Servo Motor 750W
  • Power Supply: Three Phase 200~240V, 380~415V.350v
  • Air Pressure: 0.5Mpa, 1.8L/Min
