DY 900LFS / DY 600LFS | Continuous Type Fusing Machine With Auto Belt Alignment

Continuous Type Fusing Machine With Auto Belt Alignment

Continuous Type Fusing Machine With Auto Belt Alignment

Rs. 0.00
Sold out

Description

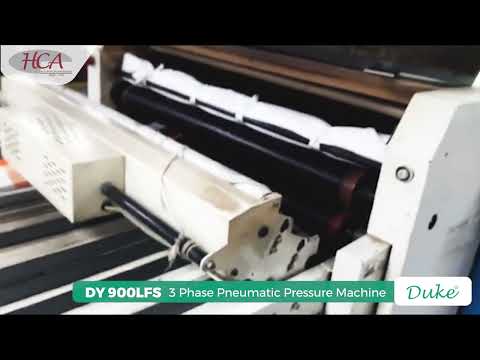

The Duke DY 900LFS & DY 600LFS is a high-efficiency, continuous fusing machine designed for industrial-scale garment production. With a 900mm fusing width, advanced belt alignment technology, and precise temperature regulation, this machine ensures consistent fabric bonding and superior productivity.

Its continuous feeding system with a front conveyor belt enhances output, while the automatic belt warping prevention device maintains belt alignment and prolongs machine life. Integrated with an electronic thermostat and SSR (Solid State Relay), the DY 900LFS & DY 600LFS maintains uniform heating without contact point wear, ensuring both durability and reliability.

Specification

  • Power Supply: Three Phase
  • Heater Output: 12 kW
  • Motor Output: 295 W
  • Fusing Width: 900 mm
  • Belt Speed: Max 10.2 m/min
  • Max Pressure: 41 N/cm² (4.02 kg/cm²)
  • Max Temperature: 195°C
  • Heating Time: 6–28 sec
  • Machine Dimensions: 1200 x 1490 x 3300 mm
  • Weight: 450 kg

Feature

  • 900mm wide fusing belt for high-volume production
  • Auto belt alignment system prevents misalignment and belt damage
  • Electronic temperature control with ±3°C accuracy for consistent bonding
  • Rotary Strip-Off Device available as optional equipment
  • Front conveyor system increases production efficiency
  • Continuous type design boosts productivity for long production runs
