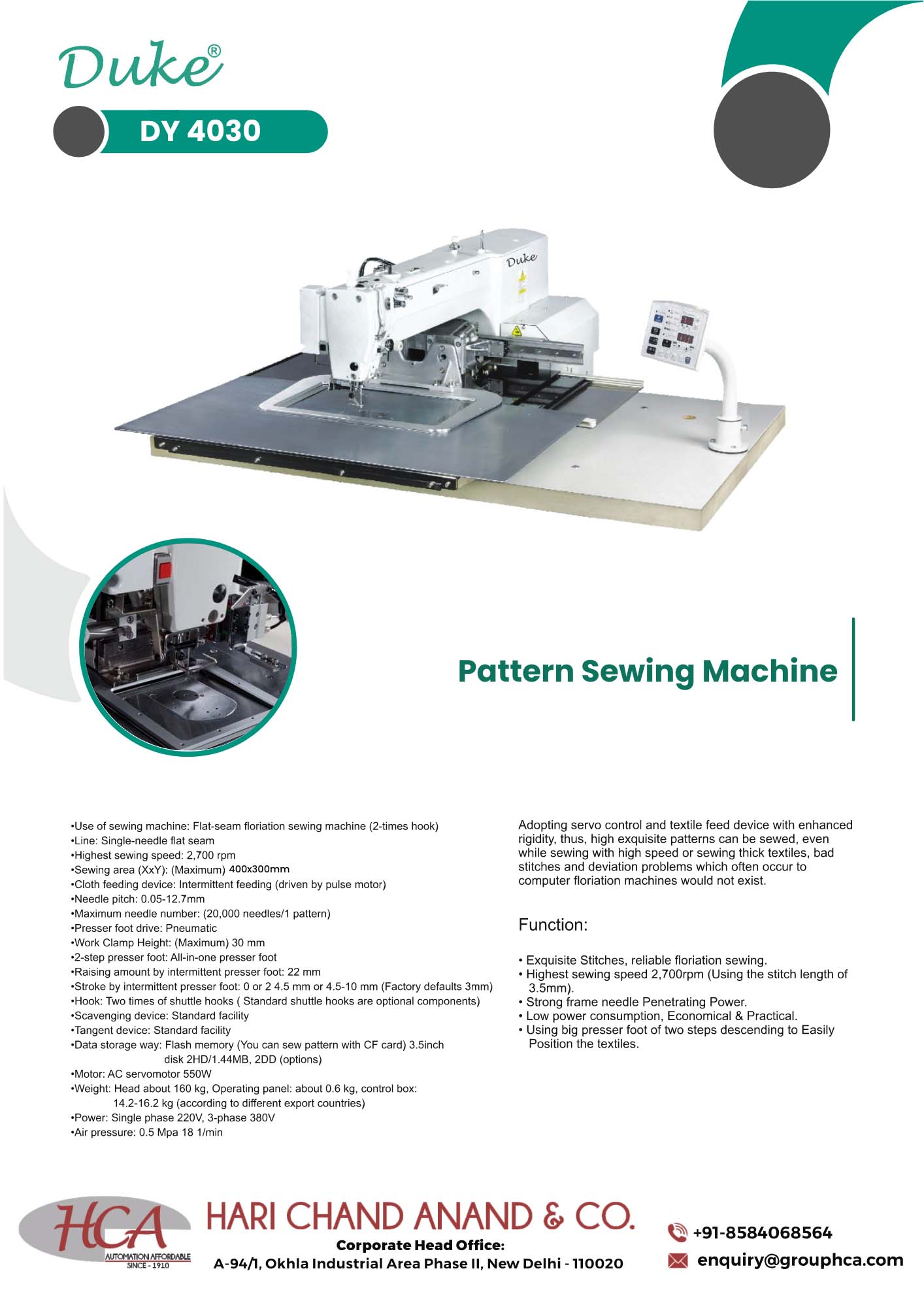

DY 4030 | Pattern Sewing Machine

Pattern Sewing Machine

Pattern Sewing Machine

Rs. 0.00
Sold out

Description

The Duke DY 4030 Pattern Sewing Machine is engineered for high-performance decorative stitching and floral floriation, perfect for complex embroidery on garments, linens, and heavy fabrics. Featuring a 400 x 300 mm sewing area and intermittent pulse motor feed, this machine offers excellent control and stability, even at high speeds of 2,700 RPM.

Designed with an advanced servo motor system and dual shuttle hooks, the DY 4030 ensures smooth thread control, no stitch deviation, and flawless patterns, making it ideal for industrial embroidery, fashion design, and custom pattern work.

Whether working with light or thick textiles, this machine is built to deliver consistent, high-quality results with low power consumption and easy data storage via CF card or USB-compatible options.

Specification

  • Model: Duke DY 4030
  • Machine Type: Flat Seam Floriation Pattern Sewing
  • Needle Type: Single needle, flat seam
  • Maximum Sewing Speed: 2,700 stitches per minute
  • Sewing Area: 400 mm (X) × 300 mm (Y)
  • Needle Pitch (Stitch Length): 0.05–12.7 mm
  • Max Stitches per Pattern: 20,000 stitches
  • Presser Foot Drive Type: Pneumatic control
  • Work Clamp Height: Maximum 30 mm
  • Hook System: Dual shuttle hook
  • Data Storage: Flash memory, Compact Flash (CF) card, 3.5" disk
  • Motor: 550W AC servo motor
  • Power Supply Options: Single-phase 220V / Three-phase 380V
  • Required Air Pressure: 0.5 MPa, air consumption 18 L/min
  • Weight (Head Only): Approximately 160 kg
