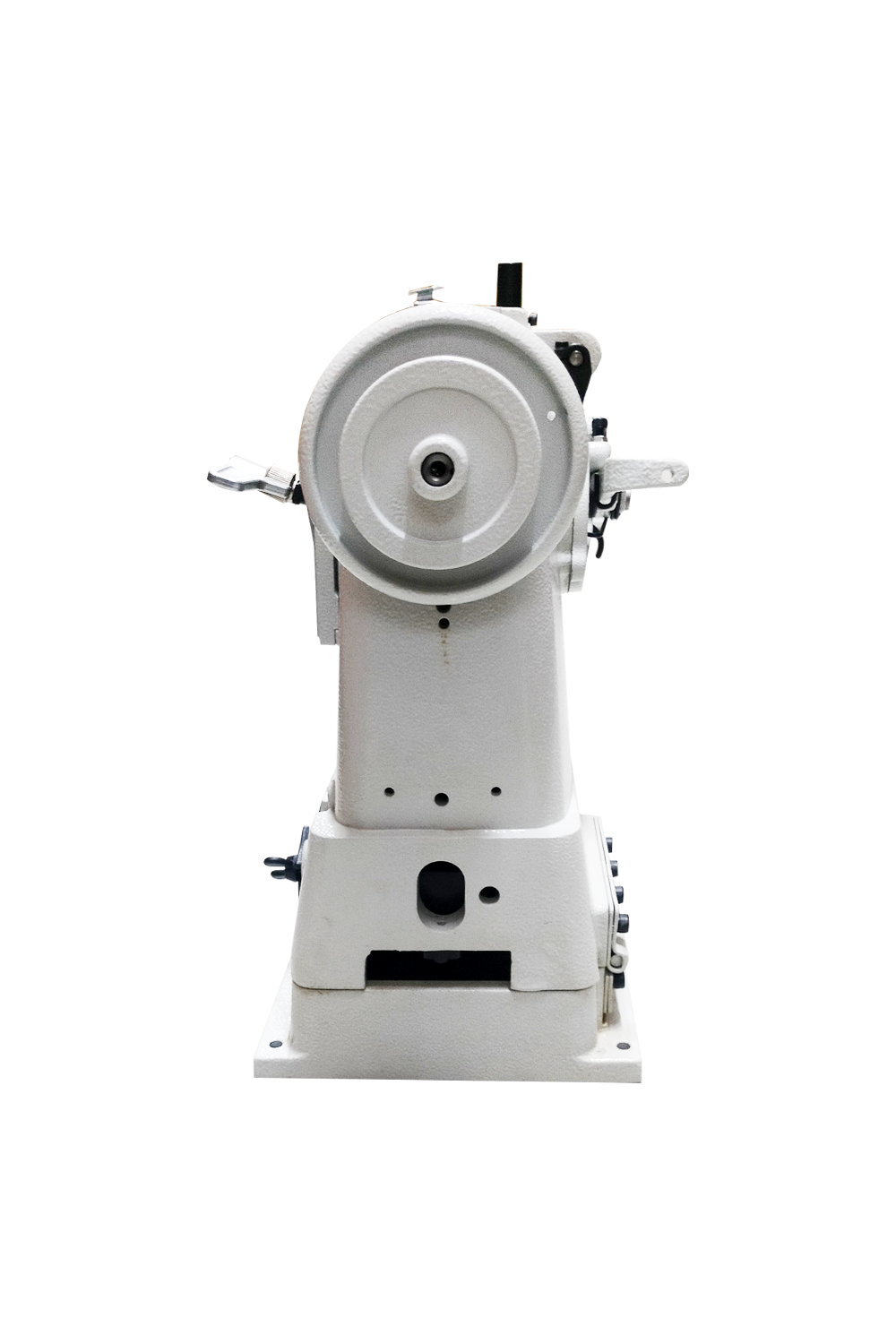

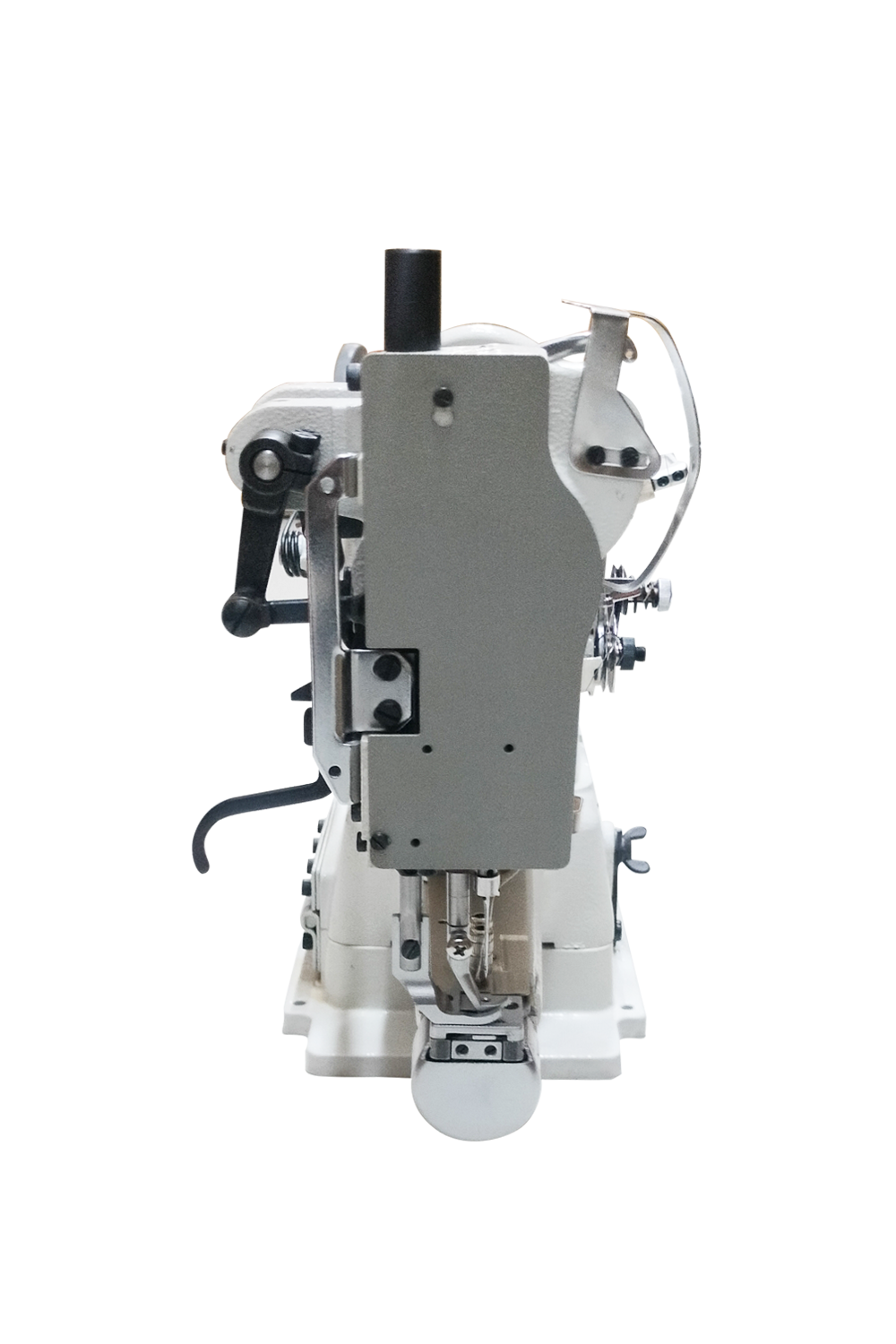

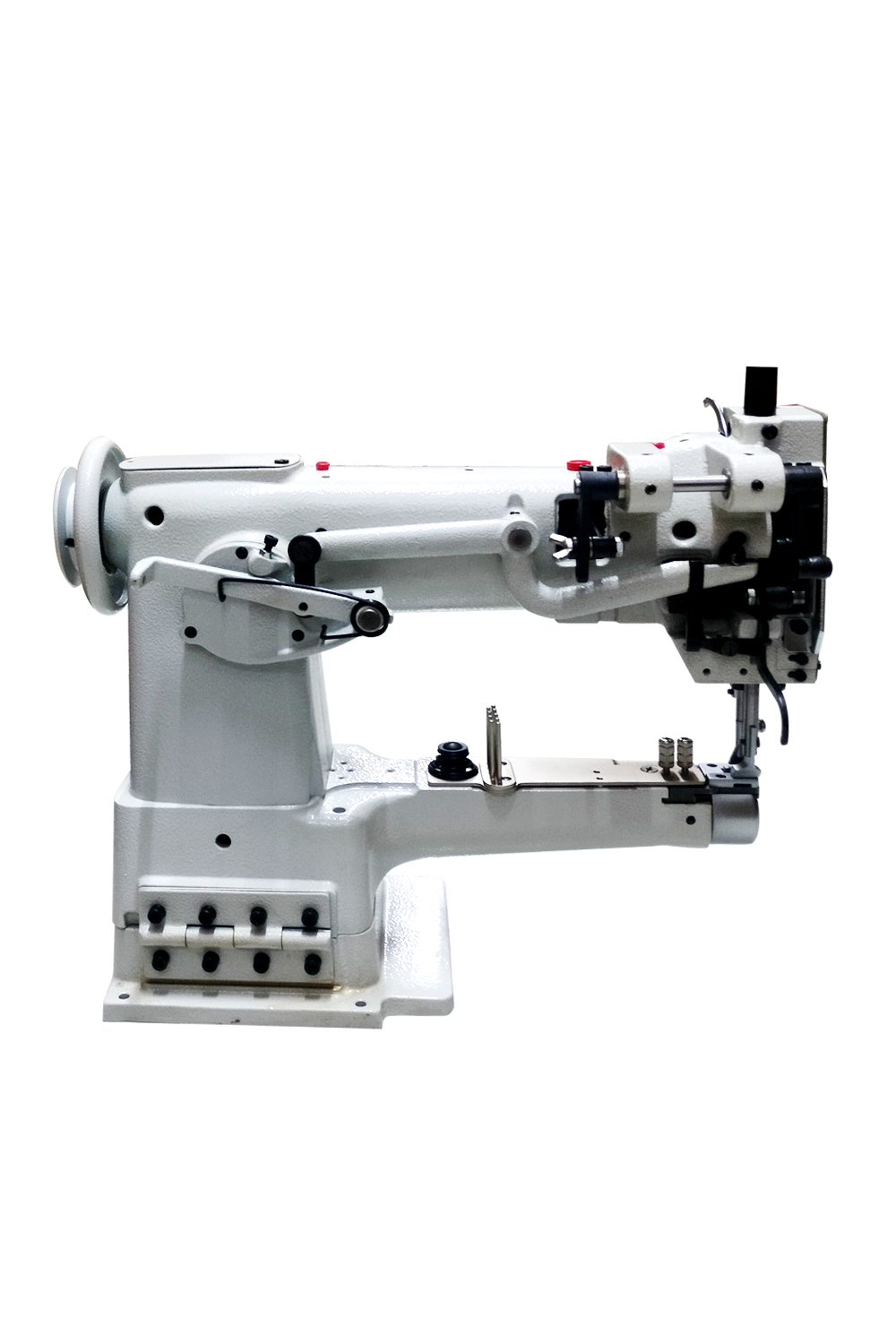

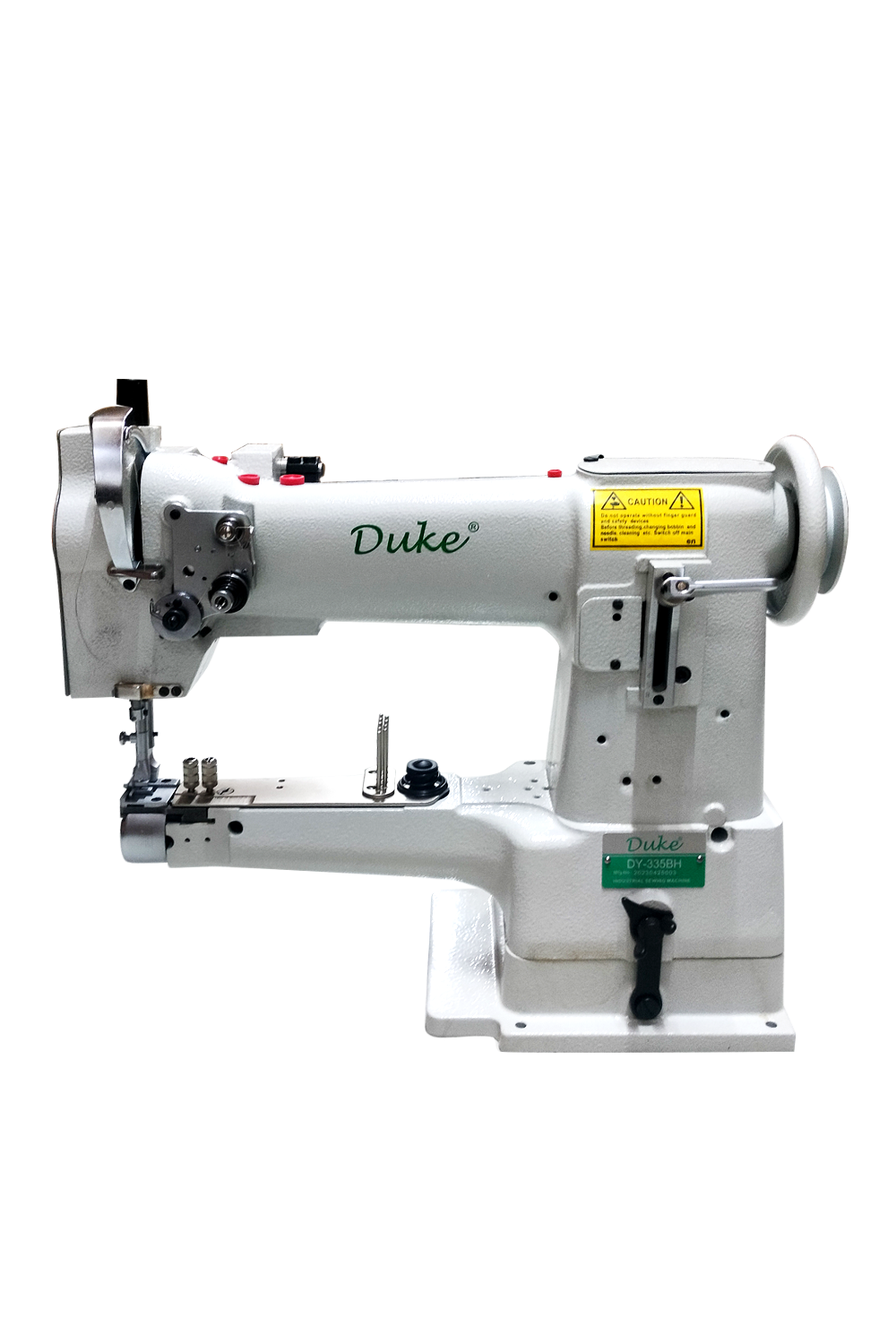

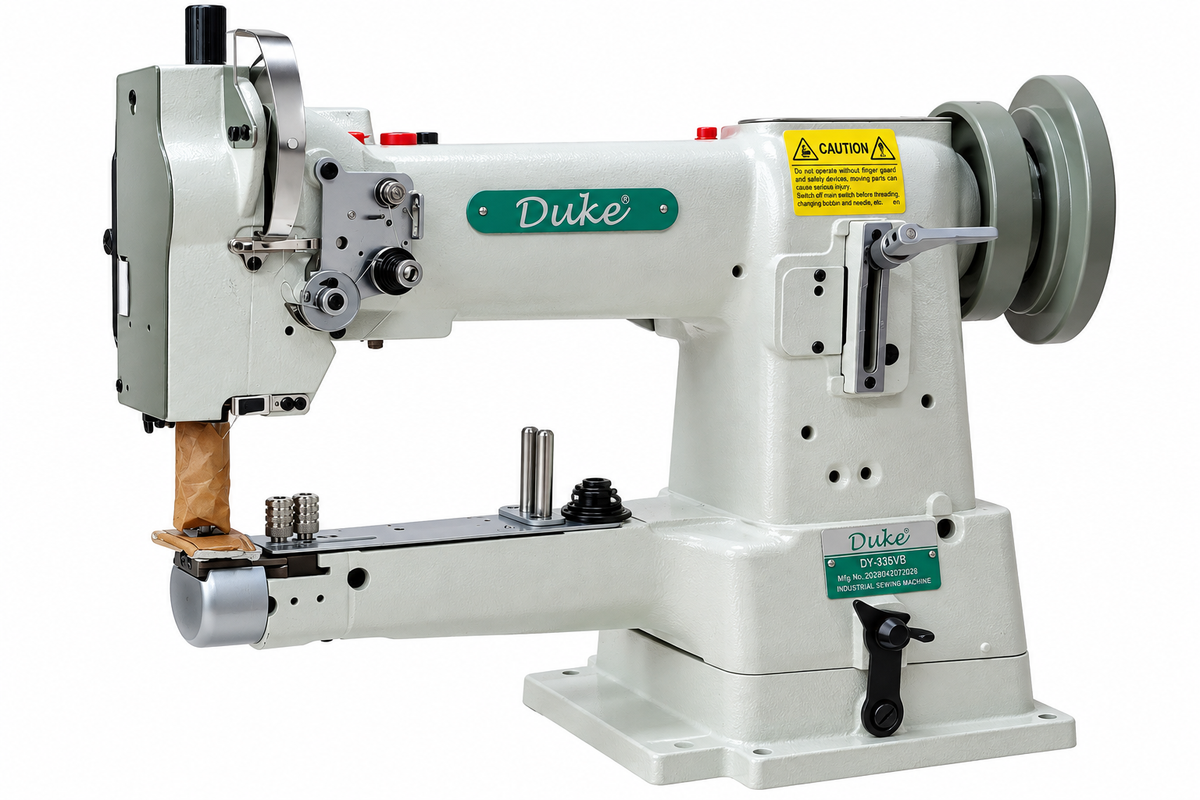

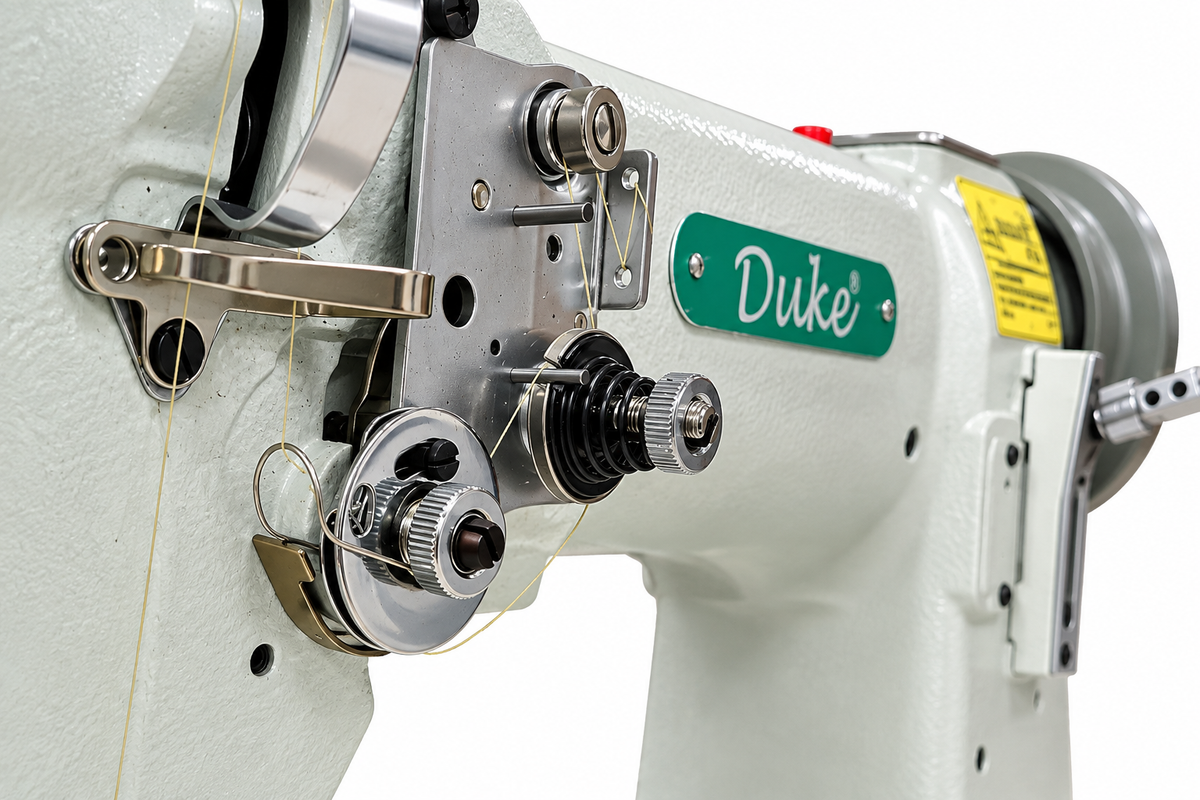

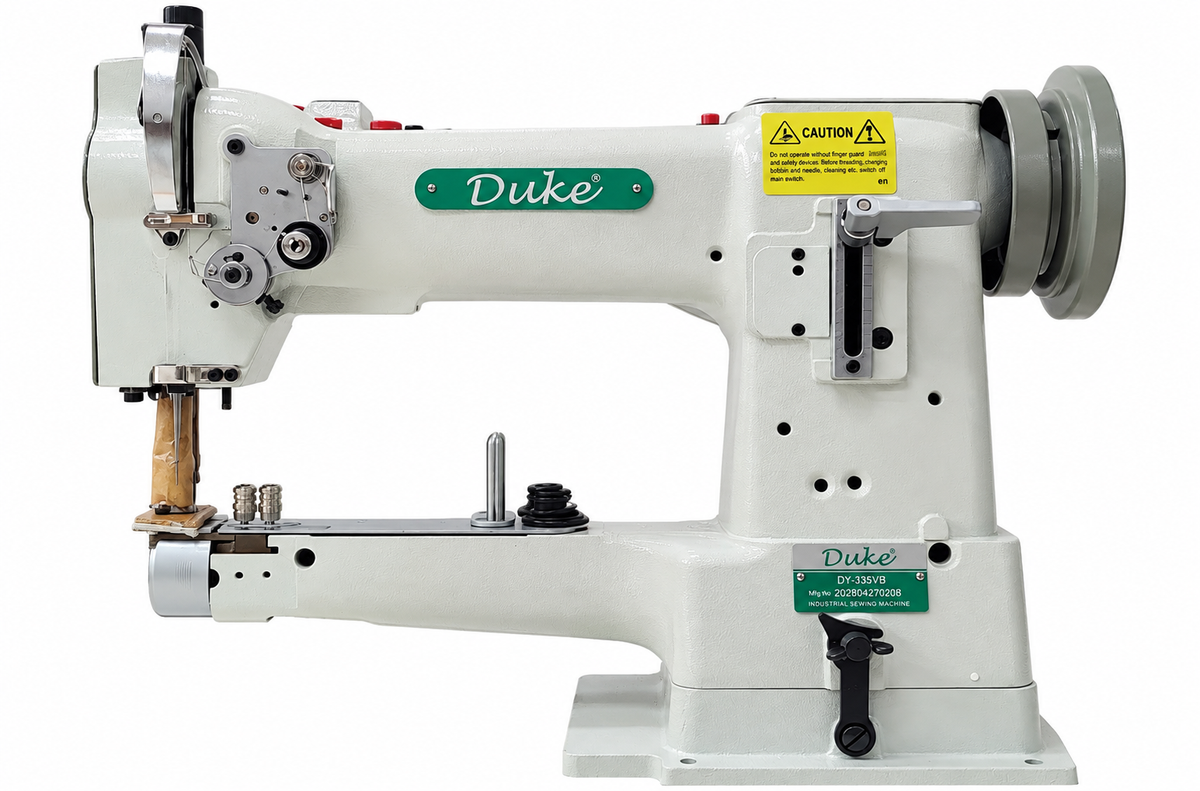

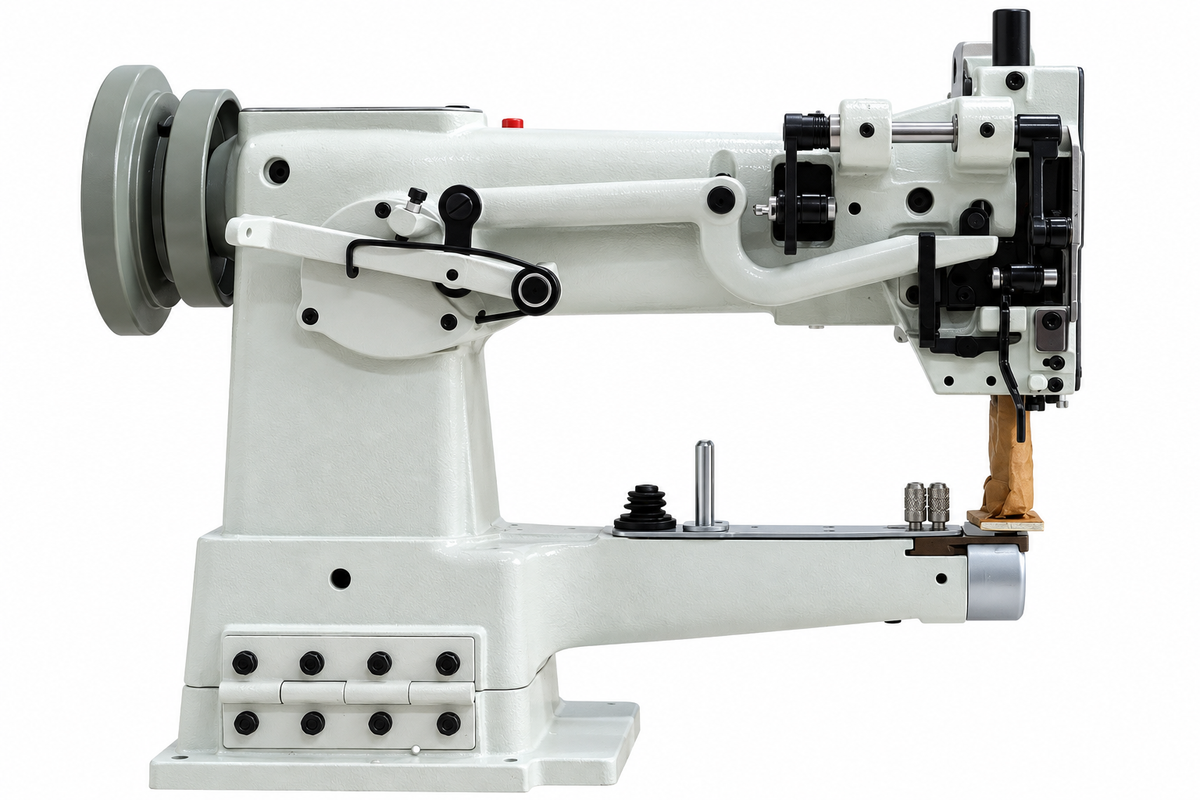

DY 335 | Cylinder Bed Compound Feed Single Needle Lock Stitch With Large Hook For Binding

Cylinder Bed Compound Feed Single Needle Lock Stitch With Large Hook For Binding - Hari Chand Anand & Co.
Cylinder Bed Compound Feed Single Needle Lock Stitch With Large Hook For Binding - Hari Chand Anand & Co.
Cylinder Bed Compound Feed Single Needle Lock Stitch With Large Hook For Binding - Hari Chand Anand & Co.
Cylinder Bed Compound Feed Single Needle Lock Stitch With Large Hook For Binding - Hari Chand Anand & Co.
Cylinder Bed Compound Feed Single Needle Lock Stitch With Large Hook For Binding - Hari Chand Anand & Co.

Cylinder Bed Compound Feed Single Needle Lock Stitch With Large Hook For Binding

Rs. 0.00
Sold out

Description

The Duke DY 335 is a specialized cylinder bed lockstitch machine designed for binding operations in curved and tubular materials. With a compound feed mechanism, synchronized binder, and small radius cylinder, it ensures consistent, precise, and high-quality binding even on difficult materials like leather, synthetic fabric, and canvas.

Its durable construction and large hook capacity make it ideal for industrial-scale production of leather garments, bags, seat cushions, and footwear.

Specification

  • Max Sewing Speed: 2,400 rpm
  • Stitch Length: 0–6 mm
  • Needle Bar Stroke: 33.4 mm
  • Thread Take-Up Lever Stroke: 59.6 mm
  • Presser Foot Lift: By hand: 5/16" , By knee: 5 mm
  • Presser Foot Alternation: 5 mm
  • Needle Type: DPx35LR #14–18
  • Cylinder Bed Diameter: 47 mm
  • Hook Type: Large hook (1.4x capacity)
  • Lubrication: Manual
  • Motor: 370W Clutch Motor

Feature

  • Cylinder Bed Design (Ø47mm): Perfect for sewing circular or tubular parts like cuffs, bags, and shoes.
  • Compound Feed Mechanism: Prevents slippage and ensures consistent stitching across thick and uneven layers.
  • Synchronized Binder: Achieves clean and even binding on straight and curved surfaces.
  • Large Hook (1.4x capacity): Reduces bobbin changes for increased productivity.
  • Perfect for Leather Goods: Handles heavy materials with ease and accuracy.
  • Compact & Smooth Operation: Offers high maneuverability with low vibration.
