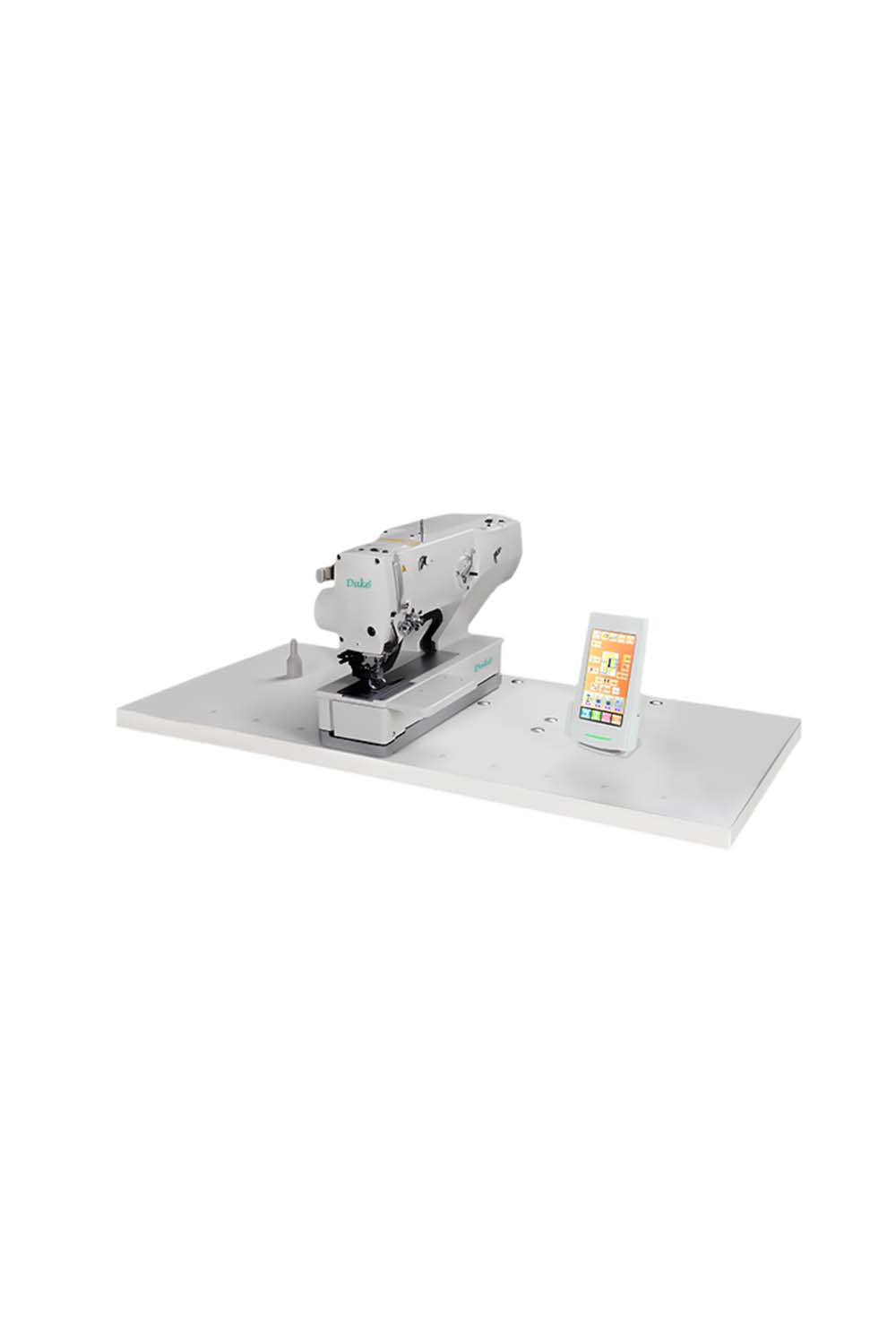

DY 1790S | High-Speed Computerized Lockstitch Buttonholing Machine

Duke DY 1790 | High-Speed Computerized Lockstitch Buttonholing Machine
Duke DY 1790 | High-Speed Computerized Lockstitch Buttonholing Machine
Duke DY 1790 | High-Speed Computerized Lockstitch Buttonholing Machine
Duke DY 1790 | High-Speed Computerized Lockstitch Buttonholing Machine

High-Speed Computerized Lockstitch Buttonholing Machine

Sale priceRs. 0.00
Sold out

Description

The Duke DY 1790 is a state-of-the-art solution designed for high-speed buttonholing machines with unmatched precision. Featuring full electronic control over thread tension and drive mechanisms, it ensures a clean, professional finish on every garment.


Specification

  • Model: DY 1790
  • Sewing Speed: Max 4,200rpm (Normal 3,600rpm)
  • Buttonhole Length: Max 41 mm(Optional: 70mm or 120mm)
  • Needle Bar Stroke: 34.6mm
  • Cloth Cutting Knife: 6.4-31.8mm (1/4" - 1-1/4")
  • Bar Tacking Width: Max 5.0mm
  • Pattern Memory: Up to 99 patterns can be input
  • Work Clamp Lift: 14mm (Stepping motor auto-lifter included)
  • Drive System: Compact AC Servo Motor (Direct-Drive)
  • Needle Type: DP5 (#11J) #11J - #14J


Feature

Electronic Active Tension: Features Duke's unique electronic
thread tension control system for consistent stitch quality
across different fabric weights.

30 Standard Stitch Patterns: Pre-programmed with 30 button
holing patterns to handle diverse design requirements
immediately.

Clean Sewing Technology: Advanced design eliminates oil
stains on the sewing product, ensuring high-quality output.

Superior Finish: Includes a basting stitch mechanism effective
for producing beautiful, reinforced buttonholes.

Precision Needle Throwing: Utilizes a stepping motor system
with a precision of $0.05\text{ mm)$ for perfectly aligned
stitches.

Enhanced Operability: The frame shape is optimized for better
handling, and sewing settings can be easily adjusted via the
control interface.

Efficient Finishing: Delivers a shorter remaining length of
bobbin thread on the material to reduce manual trimming.


Download Catalogue Contact Now
×
