DY 168-Y | Single Needle Shoe Side Lockstitch Sewing Machine

Single Needle Shoe Side Lockstitch Sewing Machine

Single Needle Shoe Side Lockstitch Sewing Machine

Rs. 0.00
Sold out

Description

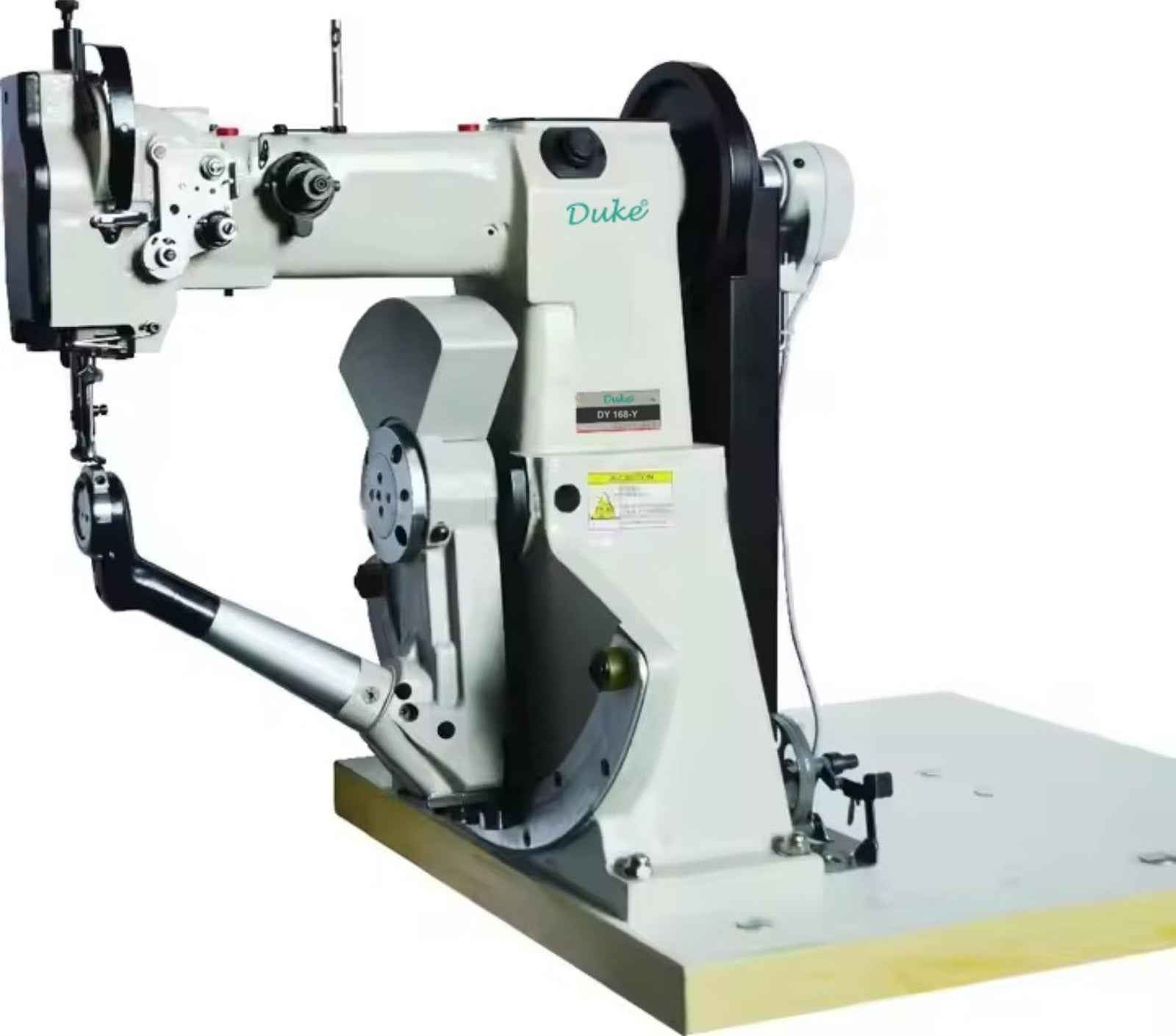

The Duke DY 168-Y is a powerful and intelligent shoe side lockstitch machine engineered for leather edge folding with automatic hot melt glueing. It is ideal for manufacturing shoes, rubberized components, and other footwear requiring precision and durability.

Specification

  • Maximum Speed: 800 SPM
  • Needle Type: CPx5
  • Maximum Sewing Thickness: 6 mm
  • Largest Sewn Head Clearance: 13 mm
  • Needle Trip: 16 mm
  • Presser Foot Lift: 13 mm
  • Weight: 158 kg
  • Dimensions: 1150 x 600 x 1390 mm

Feature

  • Automatic Edge Gluing: Applies hot melt adhesive automatically for clean, reinforced seams.
  • Eco-Friendly Gluing: Uses environmentally friendly adhesive suitable even for rubberized parts.
  • Adjustable Hem Width: Fold width from 3mm to 6.5mm; supports reinforcement folding.
  • Easy Control System: Temperature and glue flow are adjustable via knobs with clear indicators.
  • Photoresistor-Controlled Gluing: Ensures stable, precise glue application.
  • Advanced Folding Mechanism: Includes a new line folding device and pressure guiding system.
  • Convenient Speed Control: Enhanced speed management for improved handling and stitching comfort.
