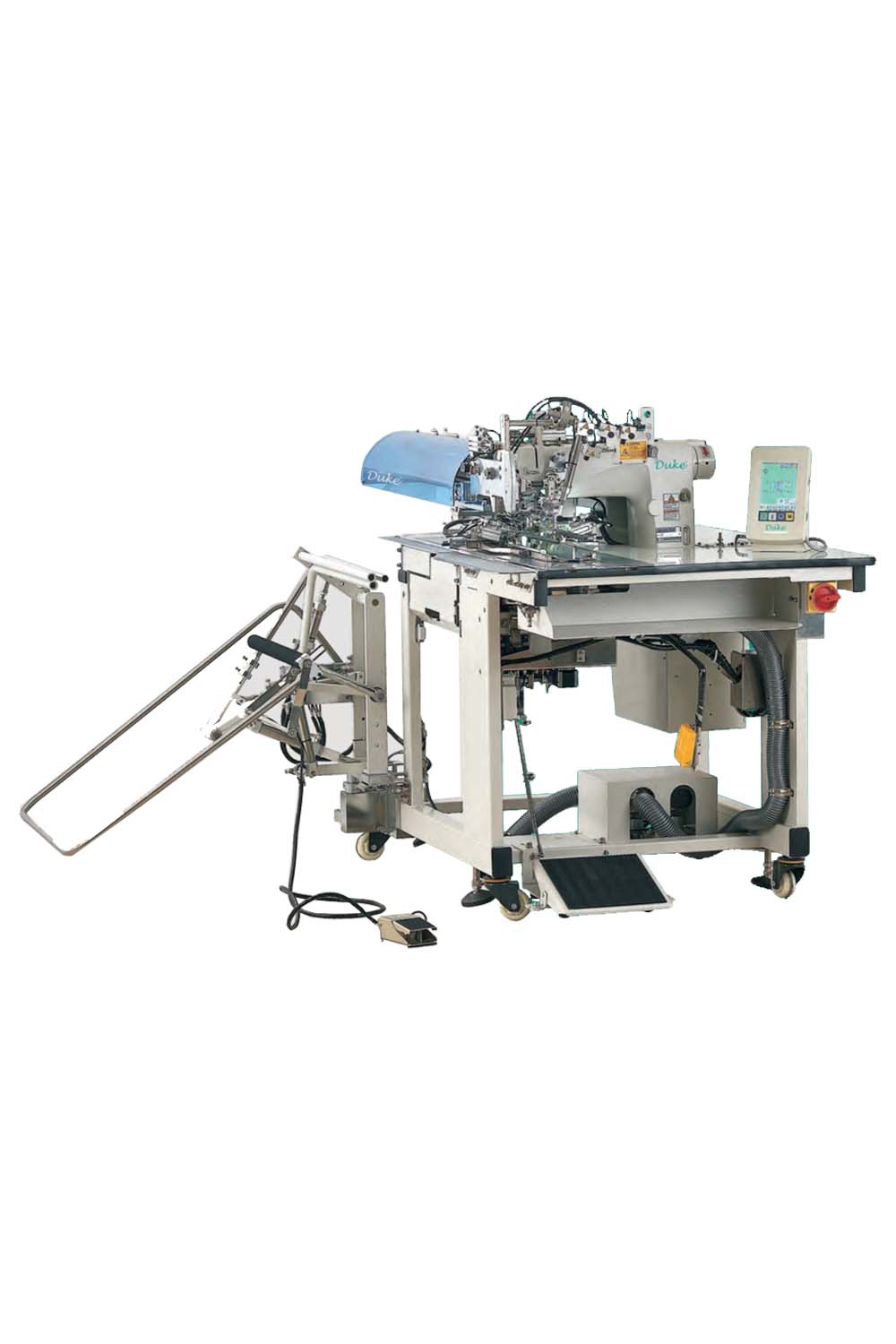

Automatic Pocket Welting Machine

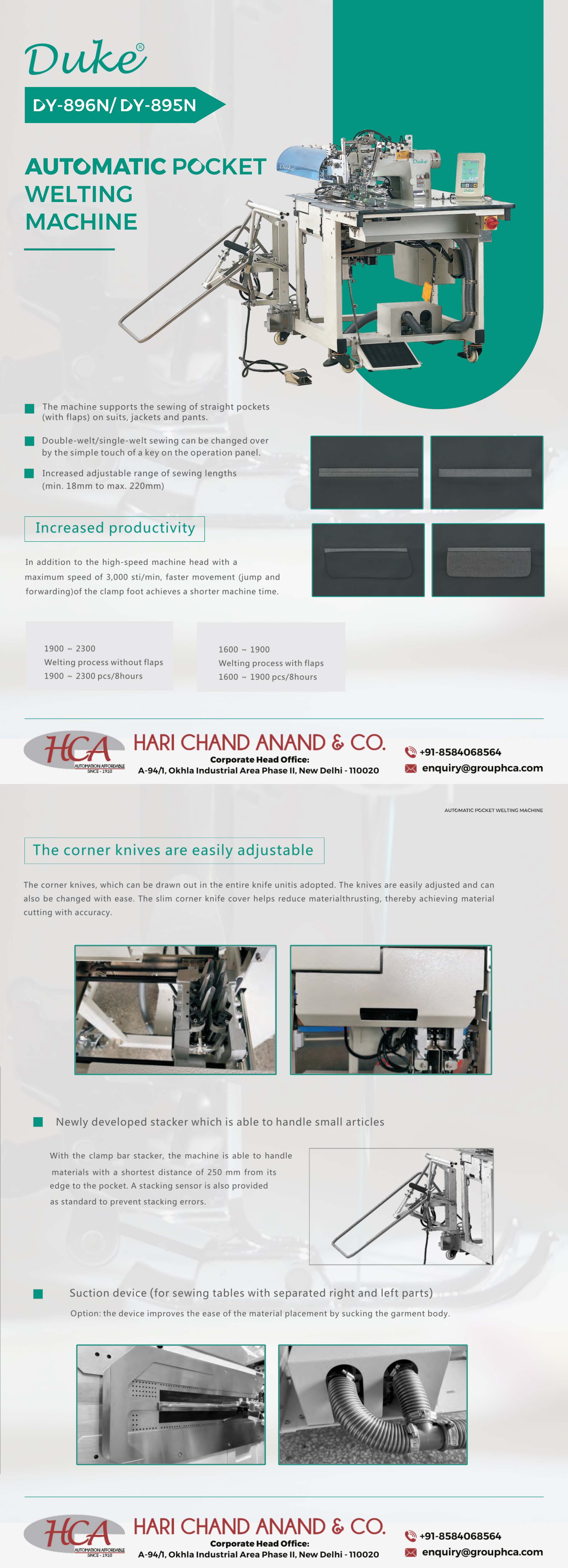

The Duke DY-896N / DY-895N is a high-performance automatic pocket welting machine designed for suits, jackets, and pants. It supports straight pockets, single-welt, double-welt, and welt with flaps, all changeable through a simple touch on the control panel.
With faster clamp foot movement and a high-speed machine head, it delivers significantly improved production efficiency, accuracy, and consistency for garment factories.

Key Features

• Suitable for straight welt pockets, with or without flaps

• Single-welt / double-welt switching with one-touch operation

• Adjustable sewing length from 18 mm to 220 mm

• High-speed machine head: up to 3,000 sti/min

• Faster clamp foot movement for reduced cycle time

• High output capability:

  • 1900–2300 pcs/8 hours (welting without flaps)

  • 1600–1900 pcs/8 hours (welting with flaps)

• Newly designed corner knife system:

  • Knives can be fully pulled out for easy adjustment and replacement

  • Slim knife cover reduces fabric thrusting for cleaner cut accuracy

• New-generation clamp bar stacker:

  • Efficient stacking even for short-distance materials (as close as 250 mm from edge to pocket)

  • Built-in stacking sensor to prevent stacking errors

• Optional suction device for easier garment placement on split-table models
