Double needle automatic belt loop setting machine

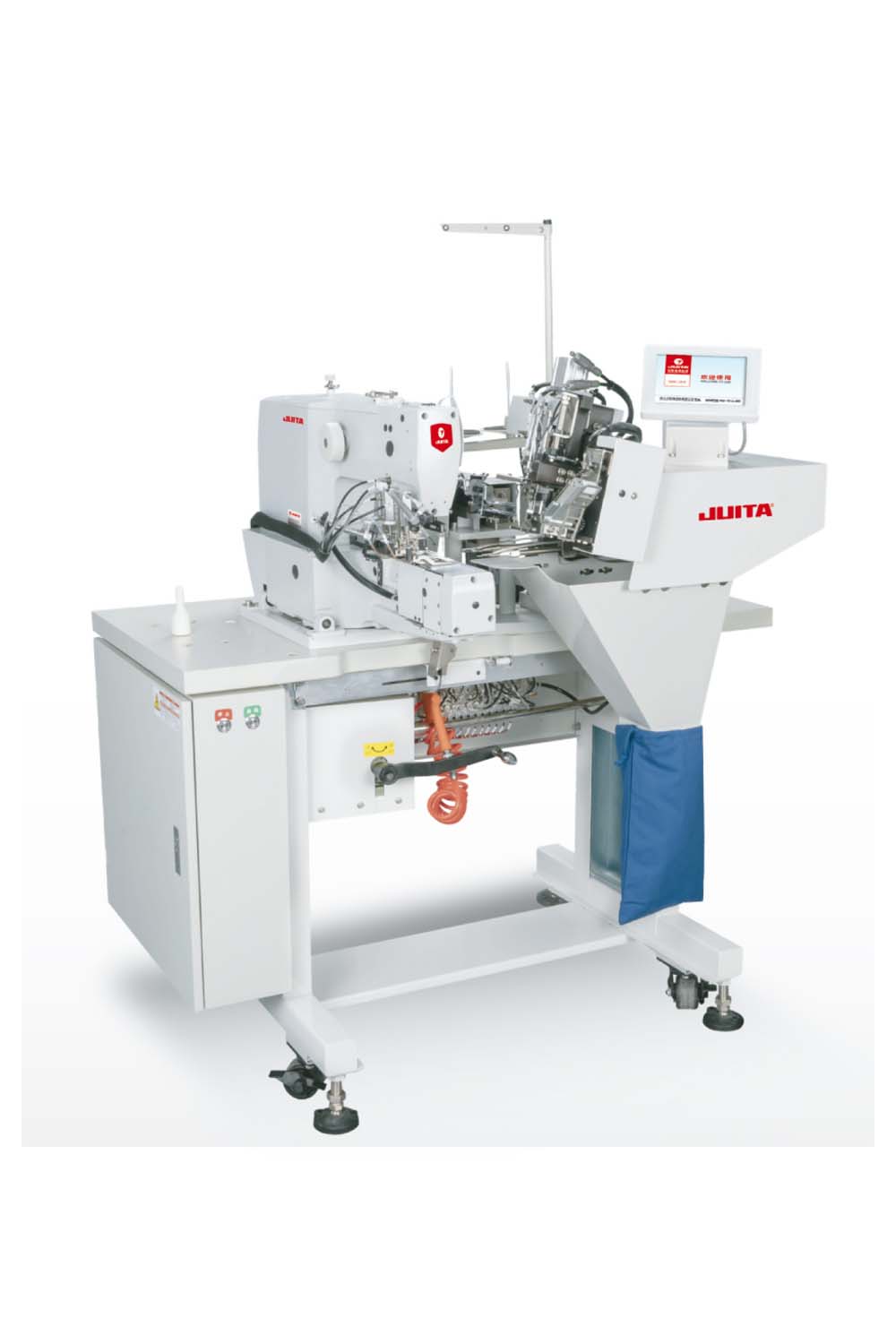

Juita JT-254-DH – Double Needle Automatic Belt Loop Setting Machine

The Juita JT-254-DH Double Needle Automatic Belt Loop Setting Machine is a fully automated solution designed to dramatically increase efficiency in jeans and casual pants production. Built with independent double-needle technology, this machine performs one-time belt loop forming—from screening and cutting to folding and bar-tacking—without manual intervention.

By automating every stage, including automatic detection and removal of belt loop waste, the JT-254-DH reduces manpower requirements and significantly improves production speed. With the ability to adjust gauge set position, belt length, stitch ending position, and waste material data via a motorized system, workers no longer need to manually set belt loop lengths.

The machine integrates loop cutting, bar-tacking, and carrying functions into a single process, saving up to four workers and improving efficiency by up to 70%. It is ideal for high-volume garment factories that produce jeans, slacks, and other pants requiring belt loops with consistent precision and strength.

Key Features of the Juita JT-254-DH Automatic Belt Loop Setting Machine

• One-Time Belt Loop Forming: Screens, cuts, folds, and bar-tacks in a single automated cycle.

• Automatic Waste Detection & Removal: Efficiently detects and removes belt loop waste without manual handling.

• Motorized Adjustment: Easily adjust belt loop length, gauge position, stitch end, and waste material data using motor control.

• High Efficiency: Saves labor costs by replacing up to four workers and increasing production efficiency by 70%.

• Precision Sewing: Ensures reinforced, durable belt loops suitable for both jeans and casual pants.

• Easy Operation: Simple interface and smart automation reduce operator effort and learning curve.

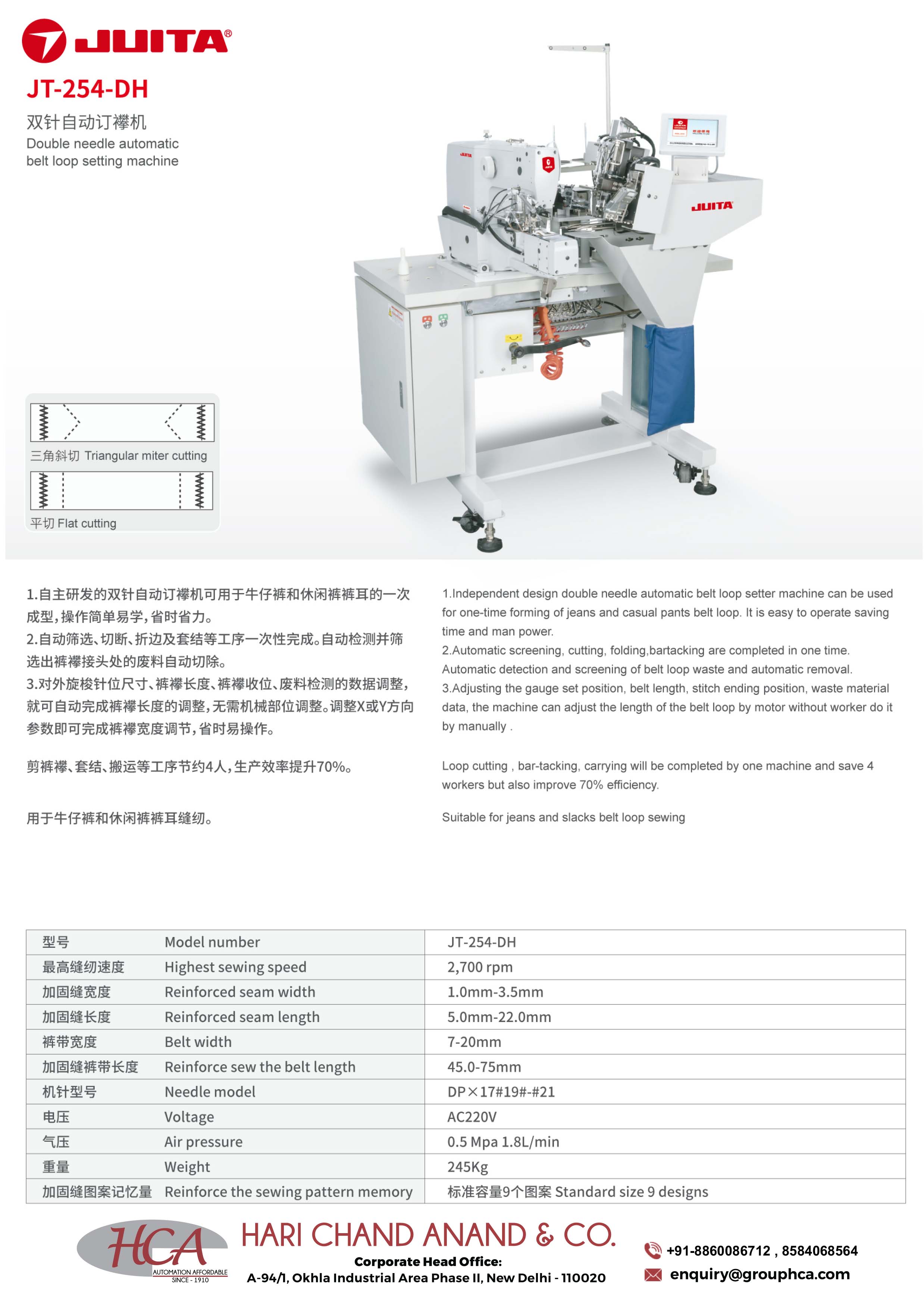

Technical Specifications

• Model Number: JT-254-DH

• Highest Sewing Speed: 2,700 rpm

• Reinforced Seam Width: 1.0 mm – 3.5 mm

• Reinforced Seam Length: 5.0 mm – 22.0 mm

• Belt Width: 7 – 20 mm

• Reinforced Belt Length: 45.0 mm – 75 mm

• Needle Model: DPX17 #19 – #21

• Voltage: AC 220 V

• Air Pressure: 0.5 Mpa, 1.8 L/min

• Weight: 245 Kg

• Sewing Pattern Memory: Standard size – 9 designs

Applications

Perfect for denim manufacturers, casual pants production units, and large-scale garment factories, the Juita JT-254-DH ensures consistent and professional belt loop stitching for high-quality jeans and slacks.
