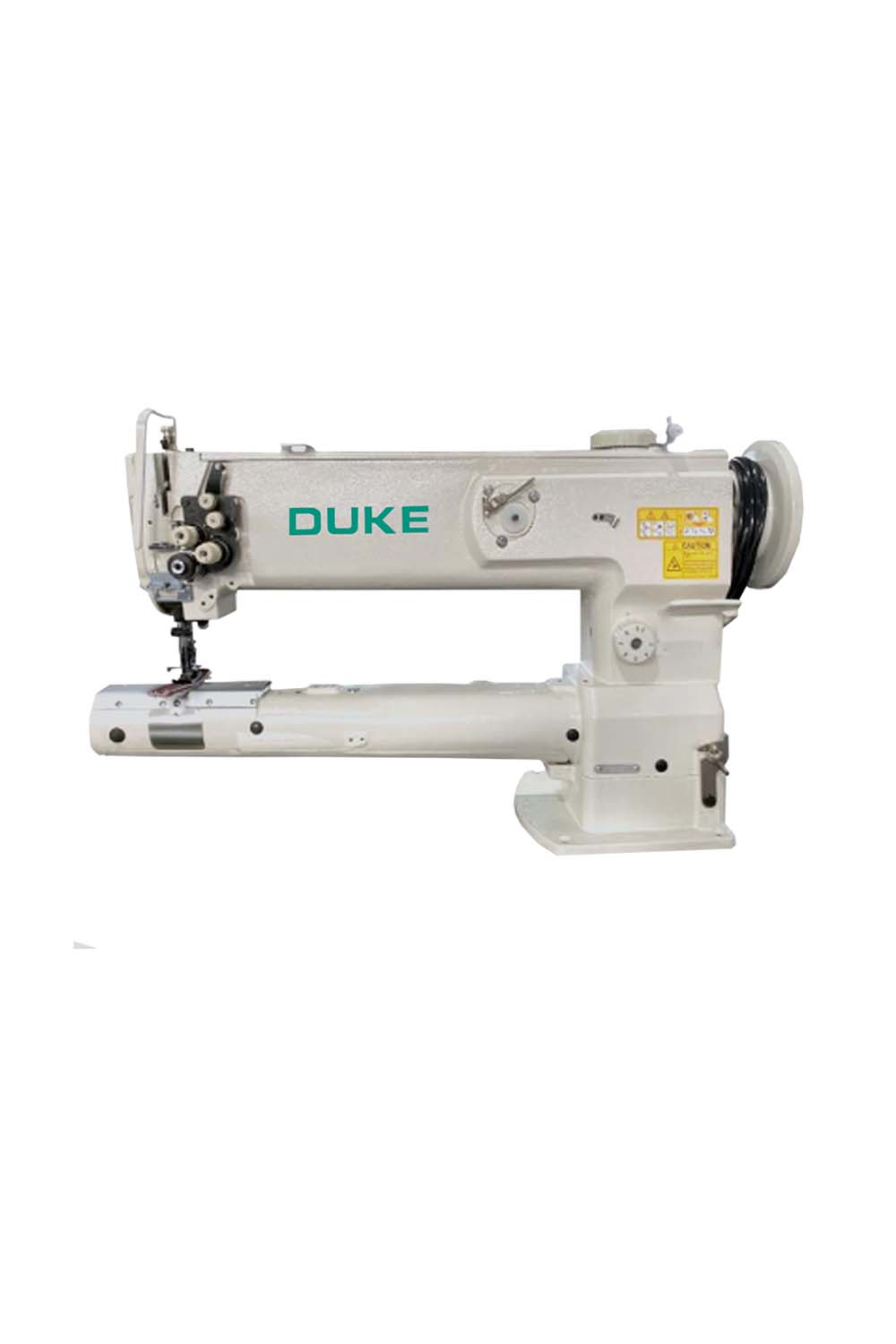

DY 1341L-25’' | CYLINDERBED LONG ARM 25’’ SEWING MACHINE

CYLINDERBED LONG ARM 25’’ SEWING MACHINE

CYLINDERBED LONG ARM 25’’ SEWING MACHINE

Sale priceRs. 0.00
Sold out

Description

The DUKE 1341L-25" is a heavy-duty cylinder-arm sewing machine designed for sewing tubular and hard-to-reach materials. It features a 70 mm cylinder arm with a 25-inch cylinder, providing excellent accessibility for bags, leather goods, upholstery, and other cylindrical products. Equipped with a single-needle compound walking-foot triple-feeding mechanism, it ensures smooth and even material feeding. The machine can sew materials up to 10 mm thick (equivalent to 10 layers of 1 mm PU leather) while maintaining consistent stitch quality. It comes with a standard bobbin and vertical hook and is supplied complete with a table and an electronic energy-saving servo motor for reliable performance and energy-efficient operation.


Specification

  • Model: DY1341L-25’’
  • Number of needle: 1 needle
  • The diameter of the cylinder: 72mm
  • Max.sewing speed: 2000 SPM
  • Max.stitch length: 11 mm
  • Max.Lift of the presser foot: Hand 8mm–Foot 15mm
  • Thread sizes: #45 to #13
  • Needle Sizes: 6.4, 7.9, 9.5, 12.7mm
  • Cylinder arm Length: 25 inches
  • Function: Standard Function
  • Feeding Mechanism: Walking Foot Triple Feeding


Feature

  • Cylinder arm diameter of 70mm
  • Compound feed, walking foot mechanism (alternating
    presser feet + needle feed + feed dog) to help feed thick &
    bulky materials
  • Standard bobbin, Vertical hook
  • Reverse Feed to reinforce stitching
  • Reinforced Short Table
  • Uses needle type DPX17, sizes #15 to #23
  • Allows for use of thread up to size #138
  • Includes complete table, servo motor, needles, bobbins
  • Includes FREE technical support for the life of your
    machine
  • Machine comes inspected, oiled, and adjusted
