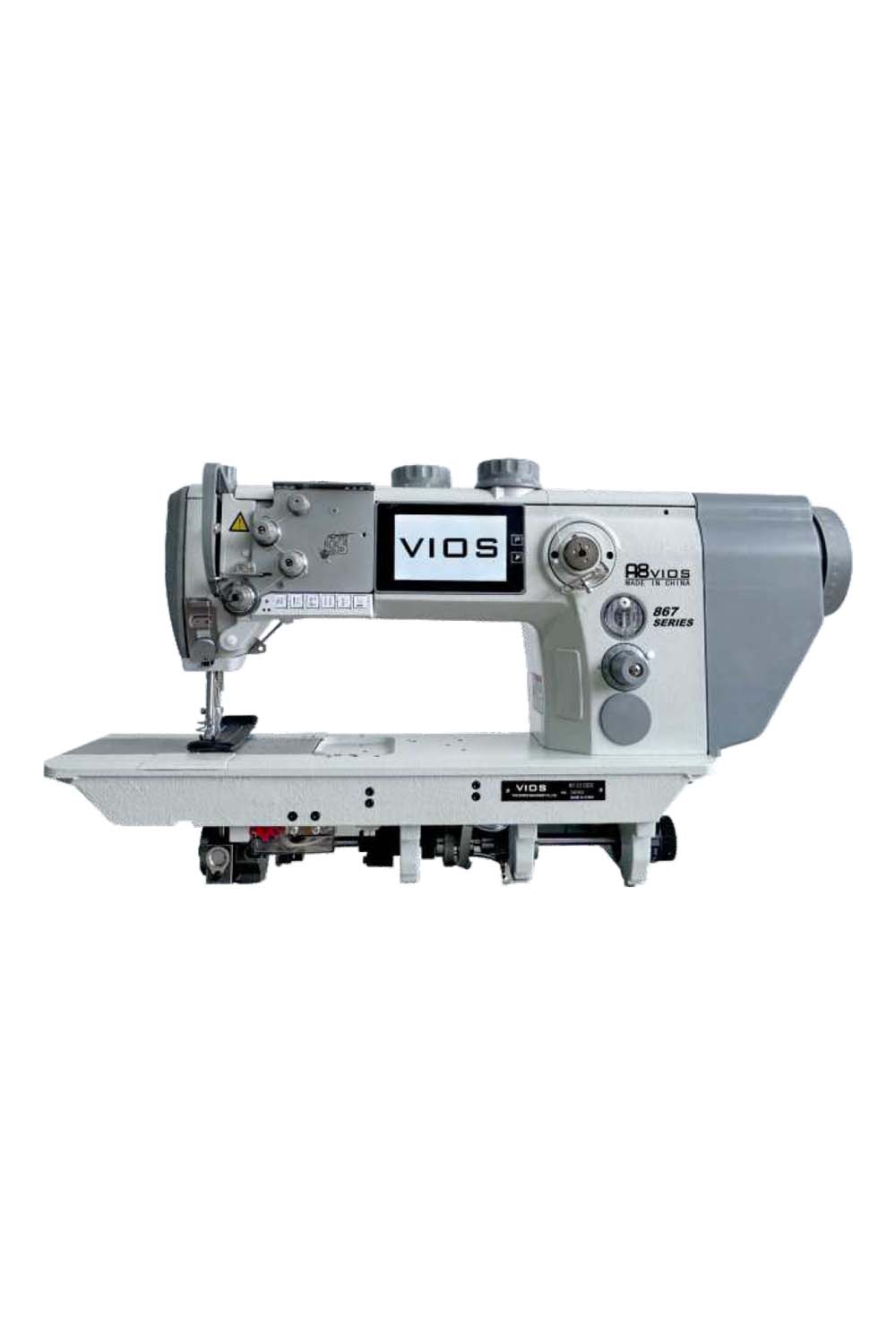

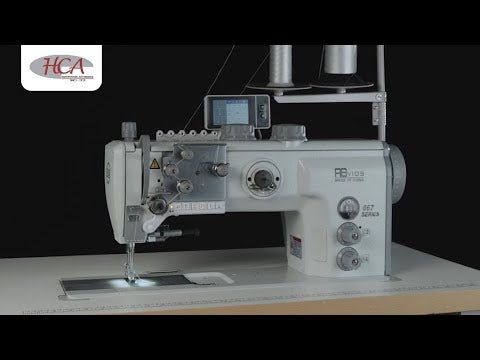

Compound Feed Lockstitch Sewing Machine

The VIOS 867 Flat Bed Series is an advanced compound feed lockstitch sewing machine engineered for medium to heavy-duty applications. Built with precision, speed, and durability in mind, this machine ensures consistent stitch quality even on thick or multi-layered materials such as denim, canvas, upholstery, and leather.

Equipped with a 32mm XXL hook, it provides 70% more bobbin capacity, reducing the need for frequent bobbin changes and increasing productivity. The self-developed VIOS control system ensures smooth, reliable operation, while the LED lighting improves visibility for the operator.

The machine supports full automation functions including automatic thread trimming, auto backtacking, programmable foot lift (PFL), and high presser foot lifter (HP). A pneumatic foot lifter allows up to 20mm lift, making it ideal for handling bulky materials effortlessly.

With a high top feed stroke up to 9mm, and stitch length options of 9mm (or 12mm optional), the VIOS 867 delivers powerful feeding performance and superior seam strength — perfect for demanding industrial operations like sofa production, seat covers, luggage, and leather goods manufacturing.

Key Features:

• Compound feed mechanism for uniform stitching on heavy materials.

• 32mm XXL hook providing 70% higher bobbin capacity.

• LED lighting for a clear and well-lit working area.

• Self-developed VIOS control system ensuring stable performance.

• Automatic functions: thread trimming, backtacking, foot lift, and presser control.

• High top feed stroke: up to 9mm.

• Maximum stitch length: 9mm (optional 12mm).

• Maximum sewing speed: 3000 RPM (1500 RPM for 12mm).

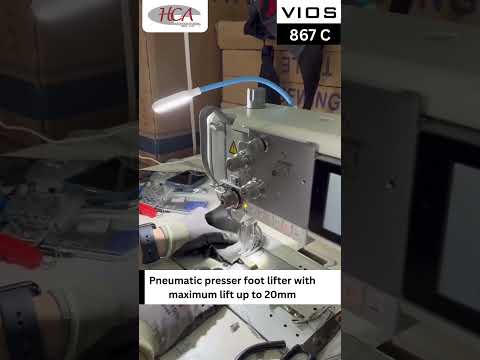

• Pneumatic presser foot lifter: up to 20mm.

• Optional hand backtacking lever.

• Edge cutter (Model C): cutting size 1.2–2.5mm.

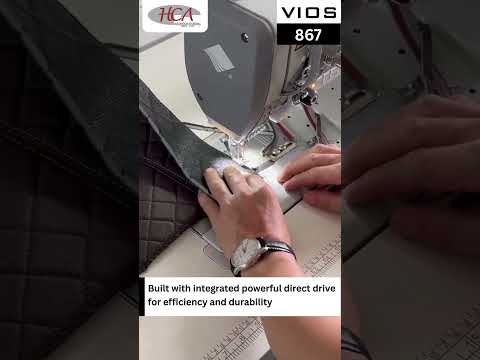

• Z-integrated direct-drive motor for powerful, smooth, and energy-efficient operation.

• Applicable for: sofas, seat covers, bags, canvas goods, denim, and other medium to heavy fabrics.
