Automatic Pocket Welting Machine

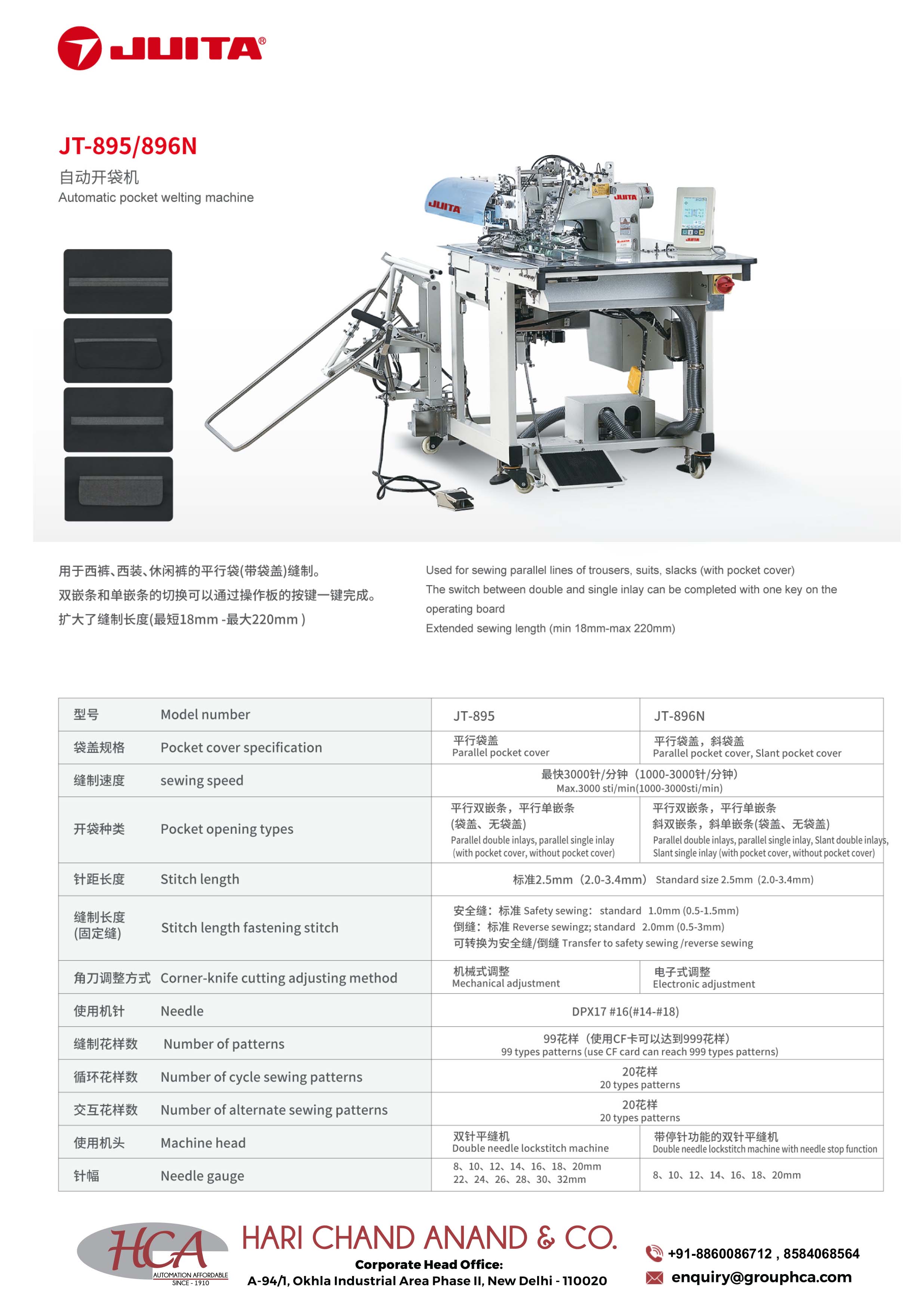

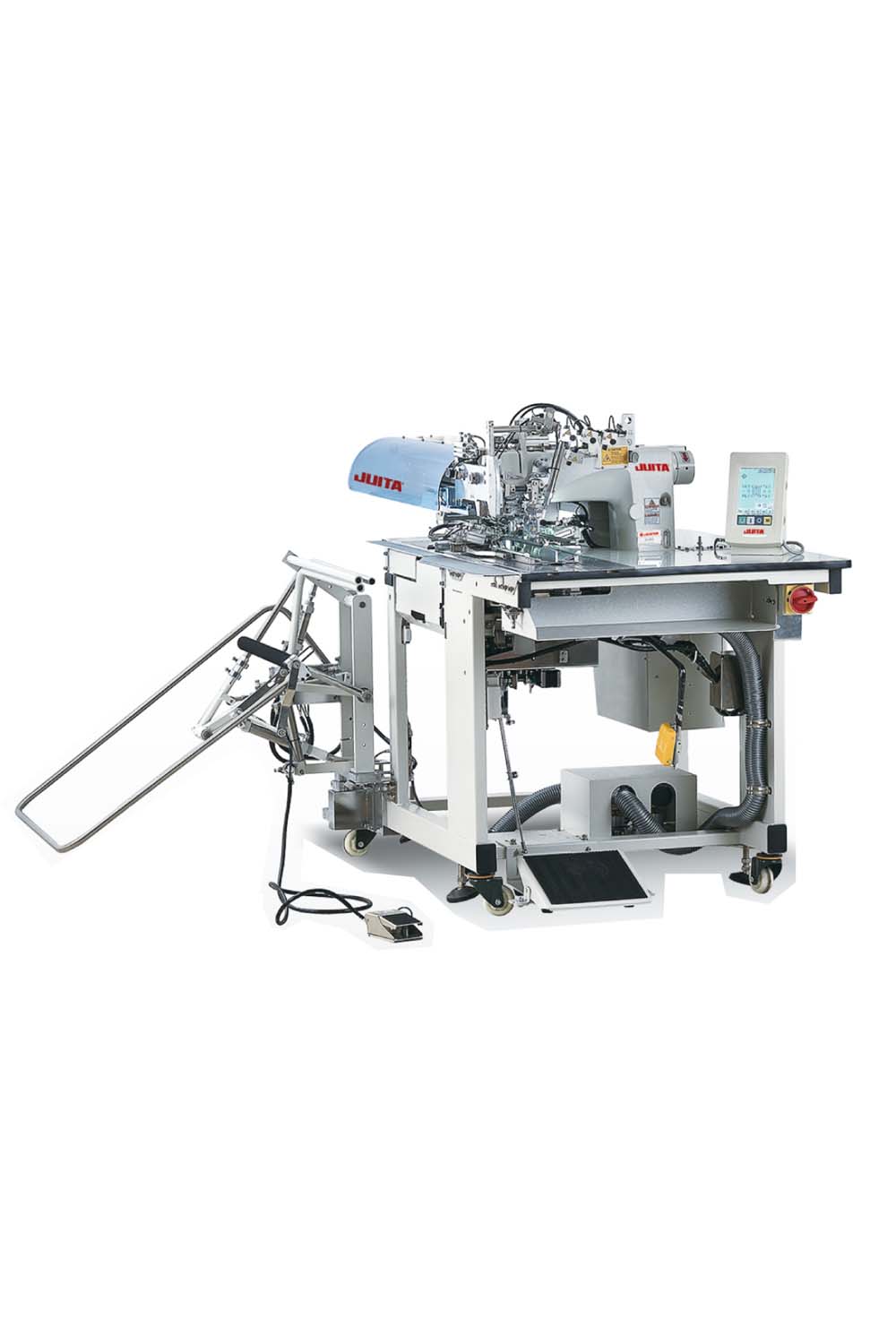

Juita JT-895 / JT-896N – Automatic Pocket Welting Machine

The Juita JT-895 / JT-896N Automatic Pocket Welting Machine is designed for fast, precise, and high-quality pocket openings on trousers, suits, and slacks—whether with or without pocket covers. With a sewing speed of up to 3000 stitches per minute, it ensures superior productivity while maintaining professional finishing standards.

This advanced machine allows one-touch switching between double and single inlay, giving garment manufacturers flexibility for various pocket designs, including parallel and slant pocket openings. The extended sewing length of 18–220 mm makes it suitable for a wide range of garment styles and pocket sizes.

The JT-896N variant features an electronic corner-knife adjustment and a double needle lockstitch machine head with a needle stop function, providing greater precision and ease of operation. With up to 99 built-in sewing patterns (expandable to 999 via CF card) and 20-cycle/alternate pattern options, it delivers efficiency and versatility for high-volume production lines.

Key Features

• High-Speed Operation: Sewing speed adjustable from 1000 to 3000 stitches per minute for faster production.

• Versatile Pocket Design: Supports parallel or slant double/single inlays with or without pocket covers.

• One-Touch Switching: Easily change between single and double inlay settings from the operating board.

• Flexible Sewing Length: Adjustable from 18 mm to 220 mm, ideal for various pocket styles.

• Advanced Pattern Memory: Up to 99 built-in patterns (expandable to 999 with CF card) and 20 cycle/alternate patterns for custom designs.

• Precision Cutting: Corner-knife adjustment available in mechanical (JT-895) or electronic (JT-896N) options.

• Professional Finish: Needle gauge range of 8–32 mm, ensuring clean, consistent pocket openings.

Technical Specifications

• Model Numbers: JT-895 / JT-896N

• Sewing Speed: 1000–3000 stitches/minute (max 3000 sti/min)

• Stitch Length: Standard 2.5 mm (adjustable 2.0–3.4 mm)

• Safety Sewing: Standard 1.0 mm (0.5–1.5 mm)

• Reverse Sewing: Standard 2.0 mm (0.5–3 mm), convertible to safety sewing

• Needle Type: DPX17 #16 (range #14–#18)

• Needle Gauge: 8–32 mm (selectable sizes)

• Patterns: 99 built-in (up to 999 with CF card)

• Cycle/Alternate Patterns: 20 each

• Machine Head: Double needle lockstitch machine (JT-895), with needle stop function (JT-896N)

• Corner-Knife Adjustment: Mechanical (JT-895) / Electronic (JT-896N)
