Automatic bar hooks attaching sewing machine

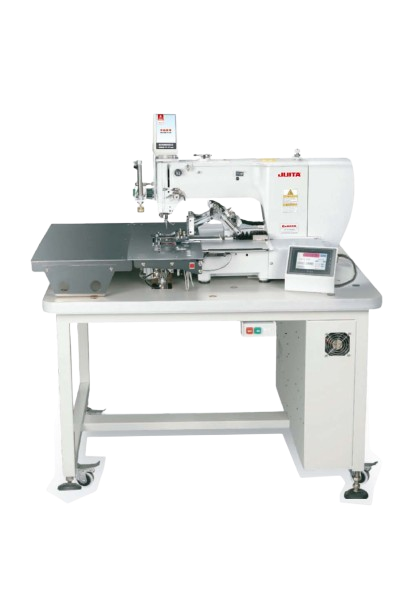

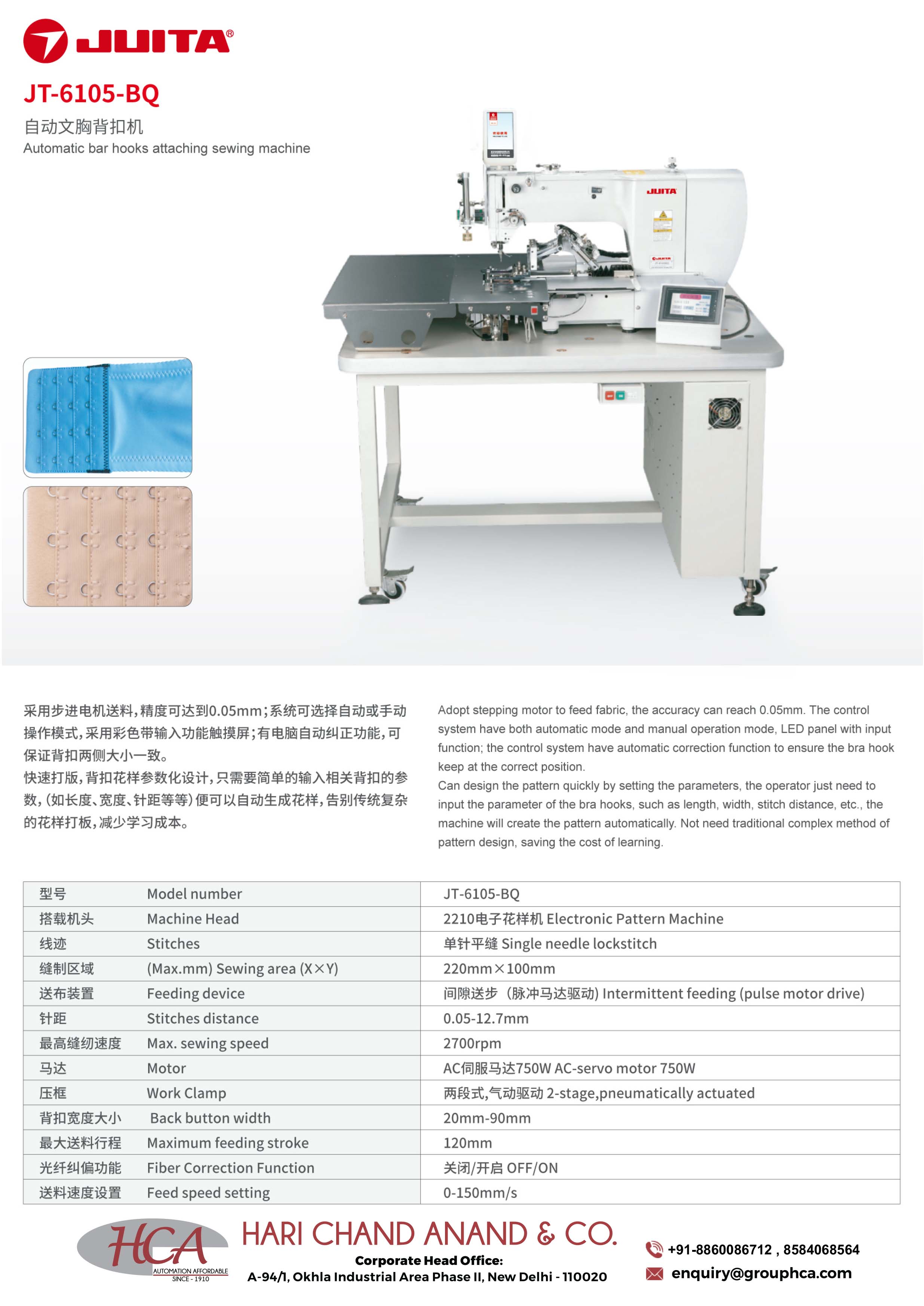

Juita JT-6105-BQ – Automatic Bar Hooks Attaching Sewing Machine

The Juita JT-6105-BQ Automatic Bar Hooks Attaching Sewing Machine is an intelligent, high-precision solution designed for bra hook and eye attachment, offering seamless automation and exceptional accuracy. This advanced machine integrates cutting-edge stepper motor feeding technology, achieving fabric feeding precision up to 0.05mm, ensuring every hook is perfectly positioned and securely stitched.

Equipped with a dual-mode control system—automatic and manual—along with an intuitive LED input panel, the JT-6105-BQ allows operators to manage settings with ease. The automatic correction function keeps each bar hook in its exact place, minimizing errors and enhancing sewing quality.

Unlike traditional machines that require complex pattern creation, the JT-6105-BQ enables quick pattern design simply by inputting basic parameters such as hook length, width, and stitch distance. The system automatically generates the stitch pattern, reducing setup time and training costs, making it ideal for lingerie, underwear, and apparel manufacturers demanding speed and precision.

Key Feature

• Stepper Motor Feeding: Delivers ultra-precise fabric movement with ±0.05mm accuracy.
• Automatic Pattern Generation: Input hook parameters to auto-create sewing patterns—no manual design needed.
• LED Control Panel: Simple interface with both automatic and manual operation modes.
• Automatic Correction Function: Keeps bra hooks aligned perfectly throughout the process.
• High-Speed Operation: Maximum speed up to 2700 stitches per minute for mass production.
• Dual-Stage Pneumatic Clamp: Ensures stable material holding for consistent stitching.
• Low Maintenance & Energy Efficient: Servo motor drive ensures smooth, quiet, and efficient performance.

Technical Specifications

• Model: JT-6105-BQ
• Machine Head: Electronic Pattern Sewing Machine
• Sewing Type: Single Needle Lockstitch
• Sewing Area (X × Y): 220mm × 100mm
• Feeding Device: Intermittent (Pulse Motor Drive)
• Stitch Distance: 0.05–12.7mm
• Max. Sewing Speed: 2700 RPM
• Motor: 750W AC Servo Motor
• Work Clamp: Two-Stage Pneumatic
• Back Button Width: 20–90mm
• Max. Feeding Stroke: 120mm
• Fiber Correction Function: ON/OFF
• Feed Speed Setting: 0–150mm/s
