DY 500D-05X356/AT/NMC/LFA | 3-Needle Flatbed Coverstitch Machine with Fabric Trimmer & Elastic Attachment for Women and Kids Innerwear

3-Needle Flatbed Coverstitch Machine with Fabric Trimmer & Elastic Attachment for Women and Kids Innerwear
3-Needle Flatbed Coverstitch Machine with Fabric Trimmer & Elastic Attachment for Women and Kids Innerwear
3-Needle Flatbed Coverstitch Machine with Fabric Trimmer & Elastic Attachment for Women and Kids Innerwear
3-Needle Flatbed Coverstitch Machine with Fabric Trimmer & Elastic Attachment for Women and Kids Innerwear
3-Needle Flatbed Coverstitch Machine with Fabric Trimmer & Elastic Attachment for Women and Kids Innerwear

3-Needle Flatbed Coverstitch Machine with Fabric Trimmer & Elastic Attachment for Women and Kids Innerwear

Rs. 0.00
Sold out

Description

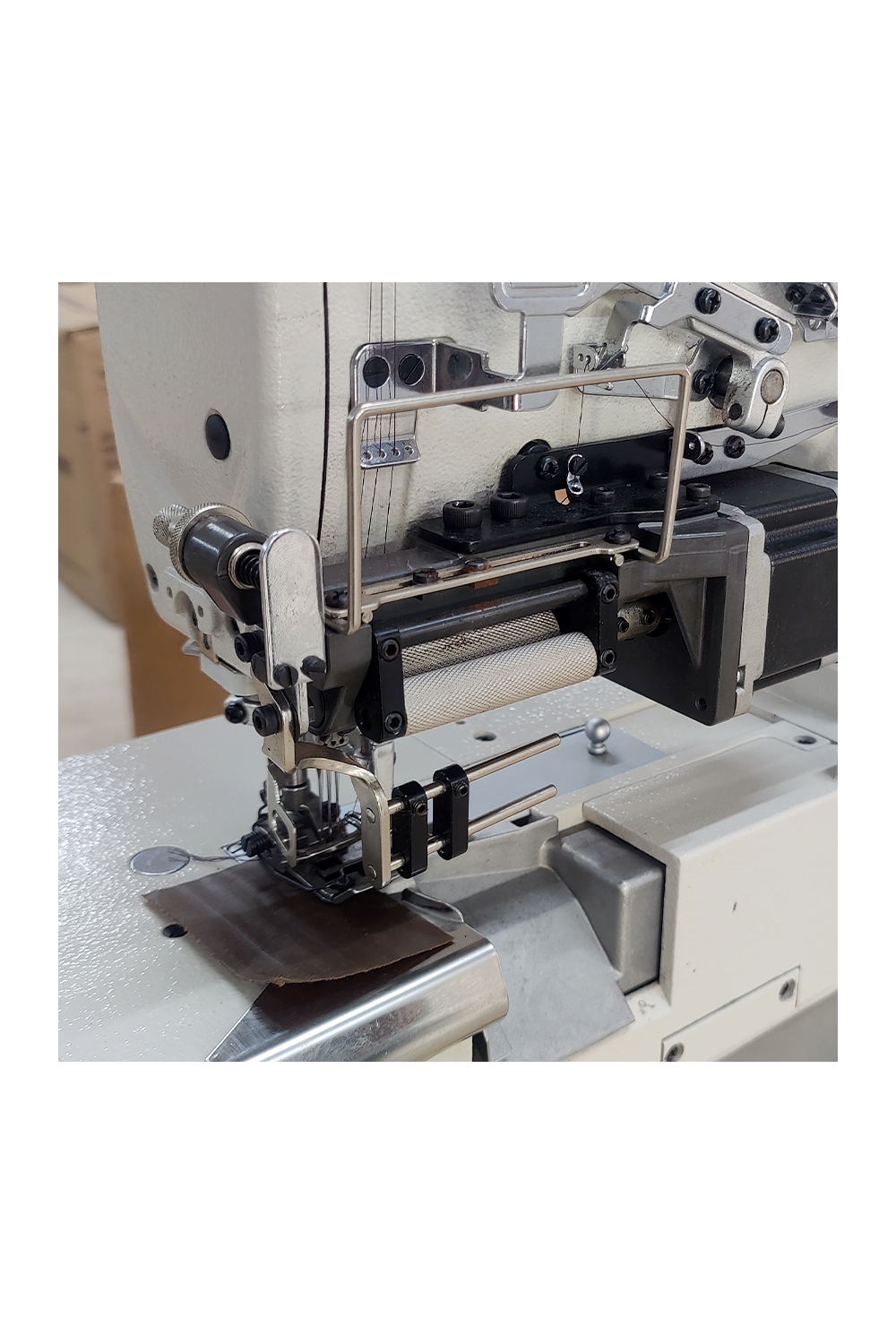

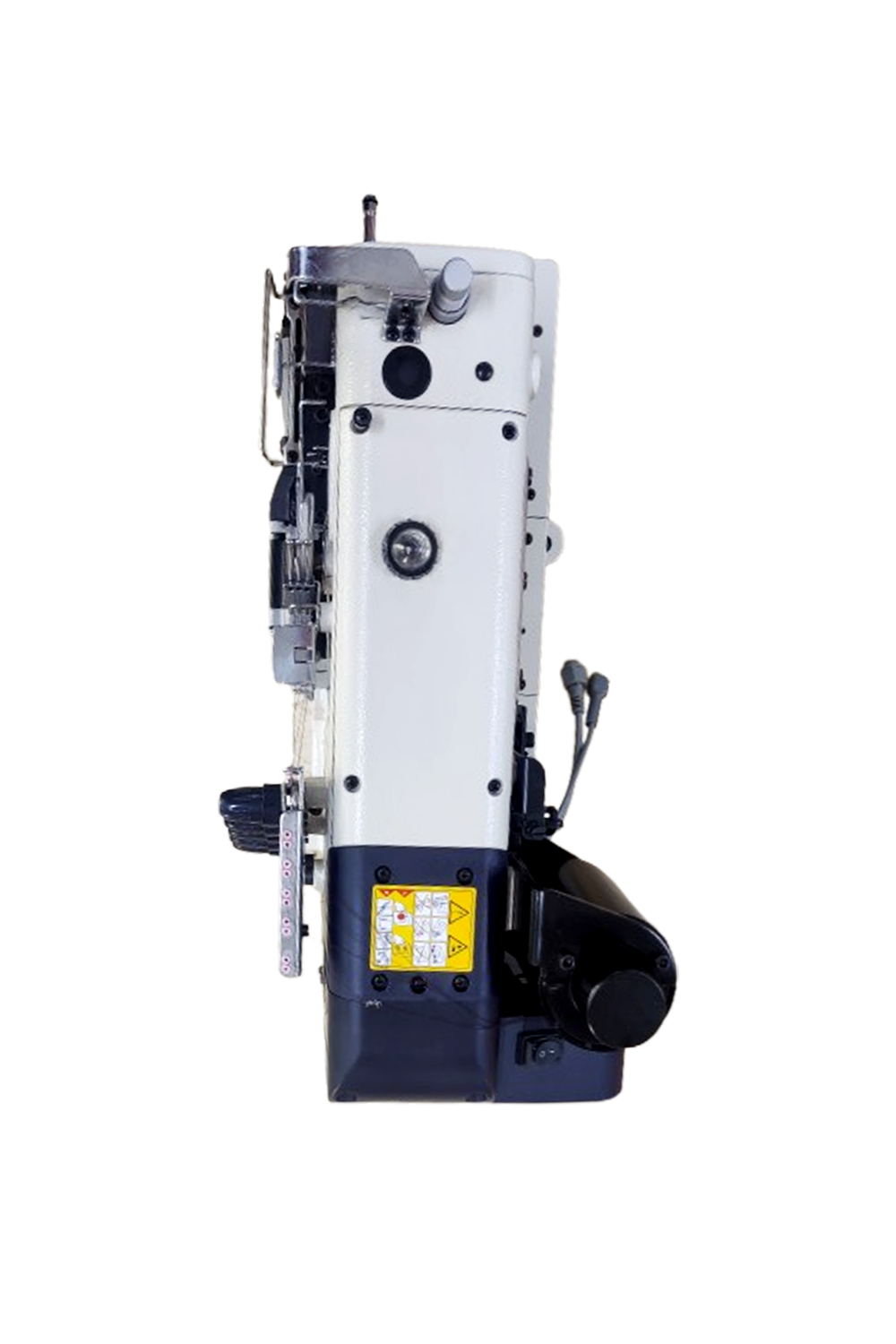

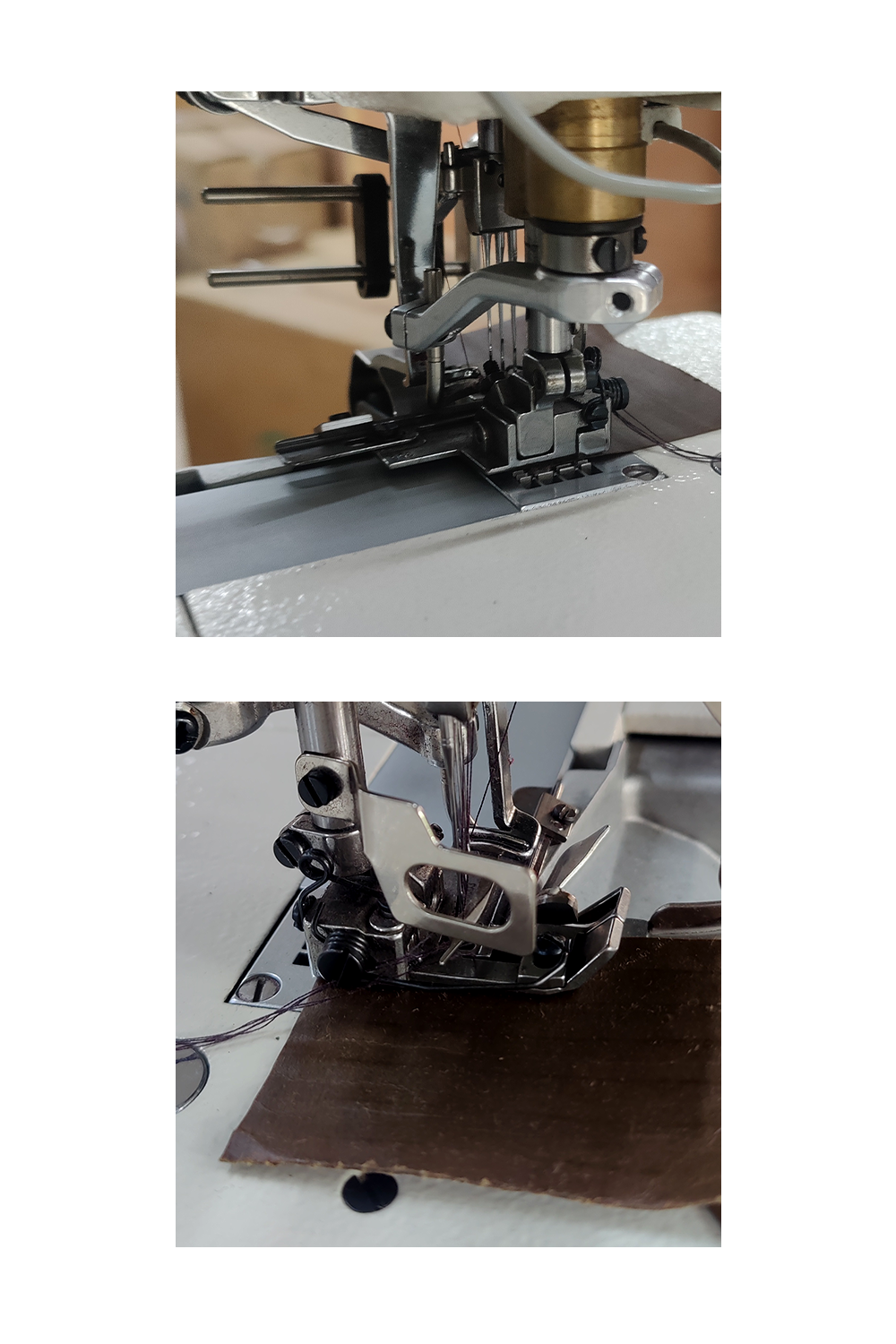

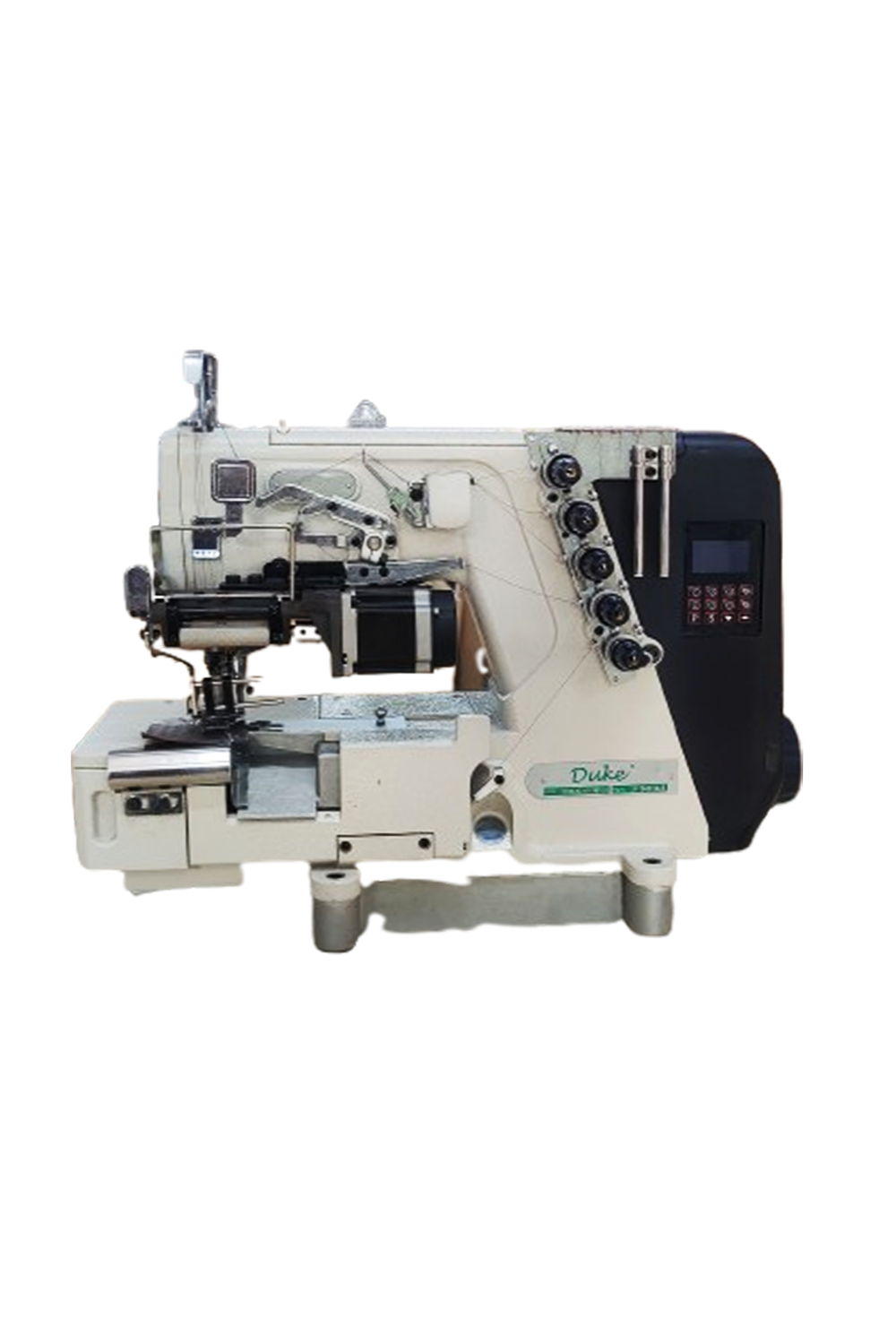

The Duke DY 500D-05X356/AT/NMC/LFA is a high-performance 3-needle flatbed top & bottom coverstitch machine engineered for precise eattachment for women and kids innerwear.
Equipped with an advanced fabric trimmer and Elastic Attachment, it delivers clean, uniform seams while attaching elastic lace in a single continuous operation—reducing manual handling and boosting production efficiency.

Its differential feed system ensures stable stitch formation across various stretch fabrics, while the high-speed drive and adjustable gauge options make it suitable for both light and medium knit applications. Designed for industrial workloads, the machine maintains stitch accuracy at speeds up to 5000 rpm, making it ideal for manufacturers demanding consistency, productivity, and professional finishing.

Specification

Technical Specifications

General

  • Model: DY 500D-05X356/AT/NMC/LFA
  • Machine Type: 3-needle flatbed top & bottom coverstitch machine
  • Application: Elastic lace attachment, hemming, decorative seams, knits & stretch fabrics

Needles & Threads

  • Number of Needles: 3
  • Number of Threads: 5
  • Needle System (Organ): UYX128GAS-9 ~ 14
  • Needle System (Schmetz): UYX128GAS-60 ~ 90 mm
  • Gauge Options: 3/16", 7/32", 1/4"

Stitching

  • Stitch Range: 8 ~ 16 stitches per inch
  • Differential Feed Ratio: 0.7 ~ 2
  • Needle Bar Stroke: 31 mm
  • Presser Foot Lift: 5 mm

Performance

  • Maximum Speed: 5000 rpm
  • Integrated Fabric Trimmer: Yes
  • Elastic Feeding Mechanism: Yes (for attaching elastic lace)
